Aslong JGA12-N20-30 DC Transmission Motor 6V - 500RPM

Based on 0 review(s) - Write a review

€4.50

Ex Tax: €3.72

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

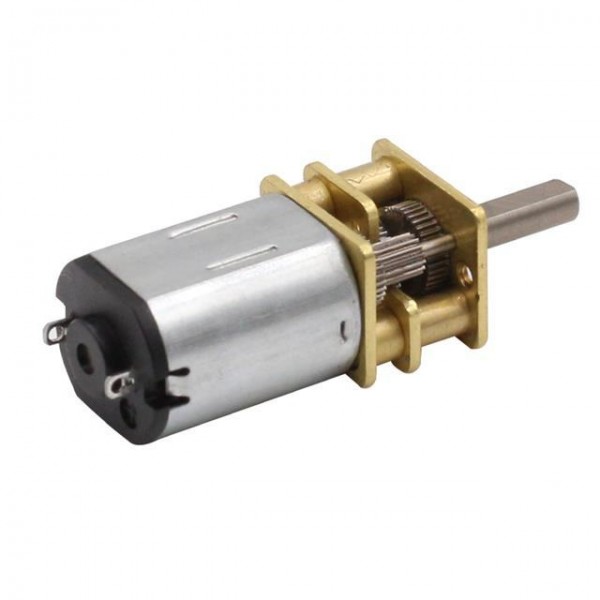

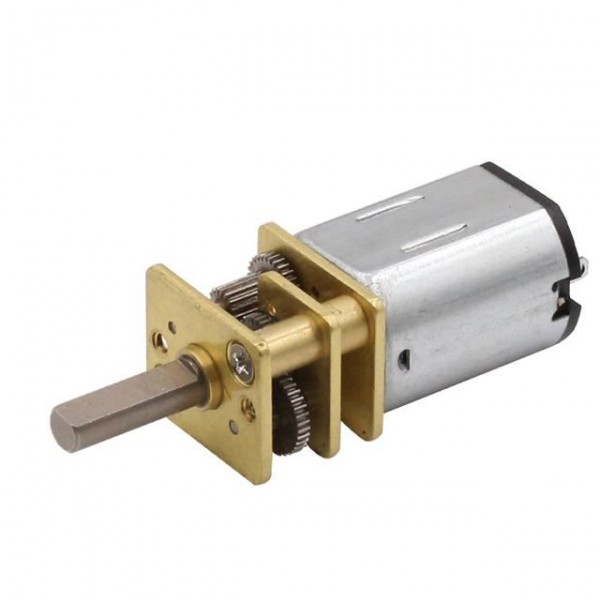

A compact DC-motor with a transmission.

Please login or register to review

This product has 0 review(s) in total.

Tags: Aslong JGA12-N20-30 DC Transmission Motor 6V - 500RPM , JGA12-N20-30-6V , DC-Motors

General
Brand	Aslong
Manufacturer model/SKU	JGA12-N20-30
Features	Motor Transmission

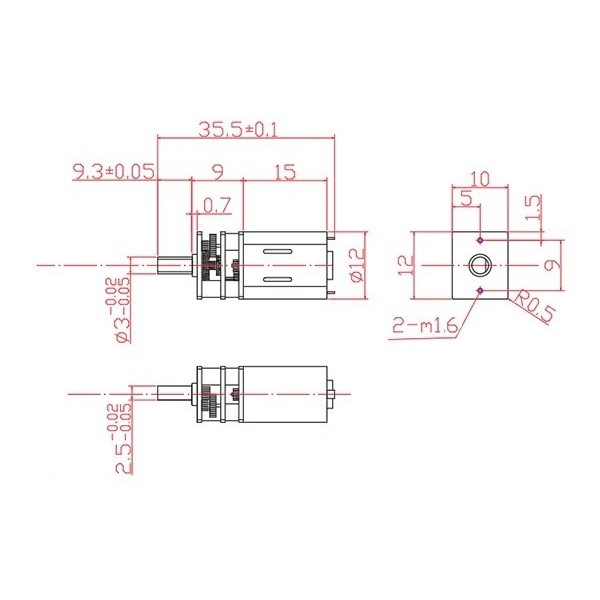

General physical appearance
Main color	Gray/silver
Weight [g]	10
Dimension X [mm]	25
Dimension Y [mm]	12
Dimension Z [mm]	10
Mounting options	Screw thread
Thread size	M1.6
General electrical properties
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	40 (No load) 550 (Stall)
Actuator
Actuator type	Brushed DC motor
Maximum holding torque [N.m]	0.04 (0.4kg.cm) (@6V)
Maximum speed [RPM]	500 (@6V)
Transmission	30:1
Gear material	Metal
Shaft
Shaft type	D-shape
Shaft diameter [mm]	3.0 (2.5 at D-shape)
Shaft length [mm]	9.3
Connectors
Motor connector(s)	Wire solder pin(s)/pad(s)
Package contents
Package contents	1x DC transmission motor
