Name: Aslong A58SW-555S DC Transmission Motor 24V - 156RPM - ASL-A58SW-555S
SKU: 003963
Price: 28 EUR
Availability: InStock

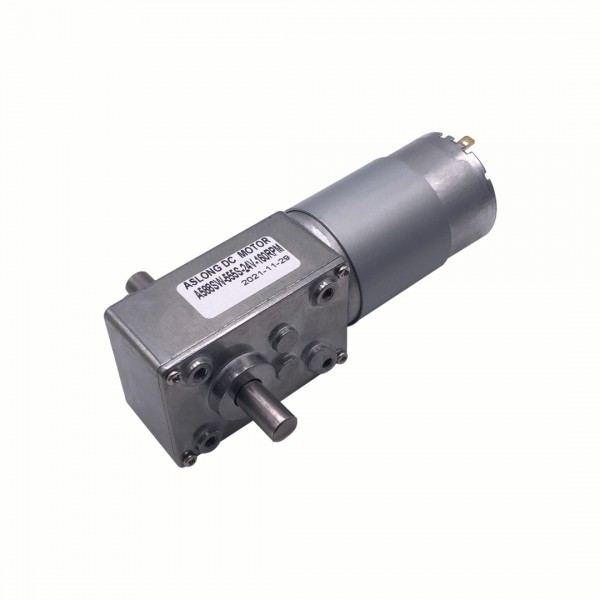

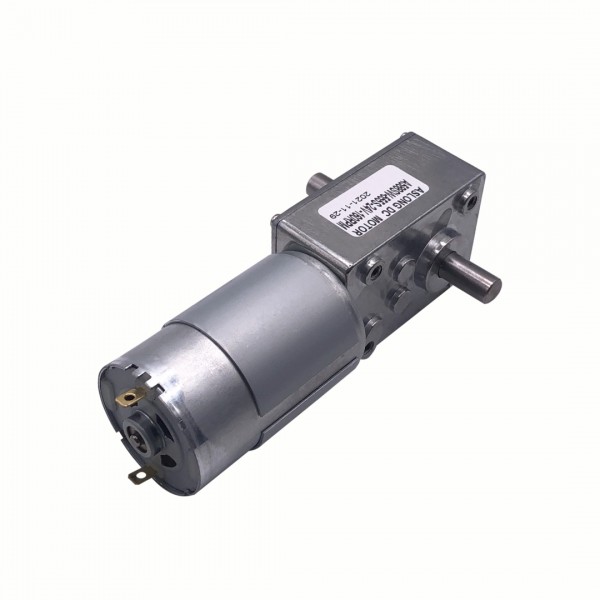

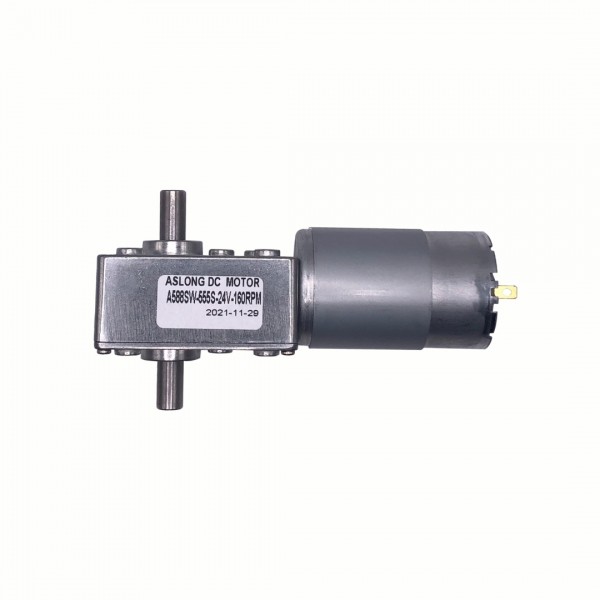

Aslong A58SW-555S DC Transmission Motor 24V - 156RPM

Availability: Directly available from warehouse in Eindhoven
SKU: 003963

Based on 0 review(s) - Write a review

€28.00

Ex Tax: €23.14

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A DC motor with transmission and a double shaft which is very powerful even at lower voltages. This motor can, for example, be controlled with a DC motor driver or an H-Bridge.

Note: Tests show that the current can be higher than specified in the datasheet.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Aslong A58SW-555S DC Transmission Motor 24V - 156RPM

Average Rating:

This product has 0 review(s) in total.

Datasheet: 003963_A58SW555s.pdf

Tags: Aslong A58SW-555S DC Transmission Motor 24V - 156RPM , ASL-A58SW-555S , DC-Motors

Specifications

General
Brand	Aslong
Manufacturer model/SKU	A58SW-555S
Features	Motor Transmission

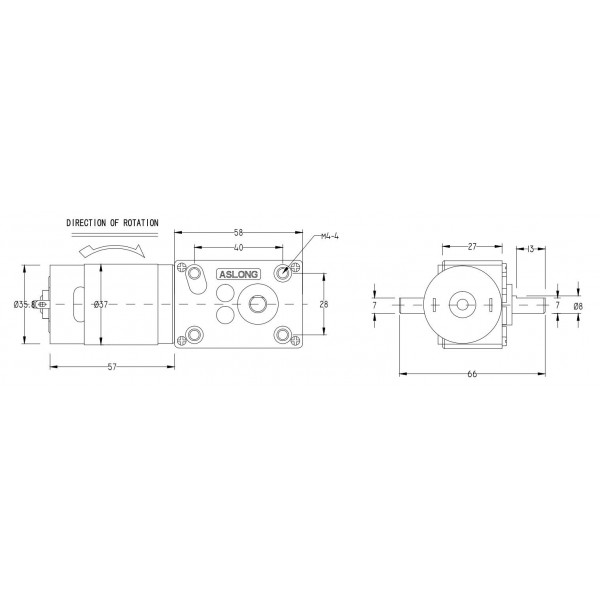

General physical appearance
Main color	Gray/silver
Weight [g]	405
Dimension X [mm]	115
Dimension Y [mm]	27
Dimension Z [mm]	40
Mounting options	Screw thread
Thread size	M4
General electrical properties
Maximum supply voltage [V DC]	24
Indication average current consumption [mA]	160 (@24V, no-load)
Actuator
Actuator type	Brushed DC motor
Maximum holding torque [N.m]	4.9 (50kg.cm) (@24V)
Phase resistance [Ω]	3.5
Maximum speed [RPM]	156 (@24V)
Transmission	50:1
Gear material	Metal
Shaft
Shaft type	D-shape
Shaft diameter [mm]	8.0 (7.0 at D-shape)
Shaft length [mm]	13
Connectors
Motor connector(s)	Disconnect male
Connector/pin width [mm]	2.8
Package contents
Package contents	1x DC transmission motor
