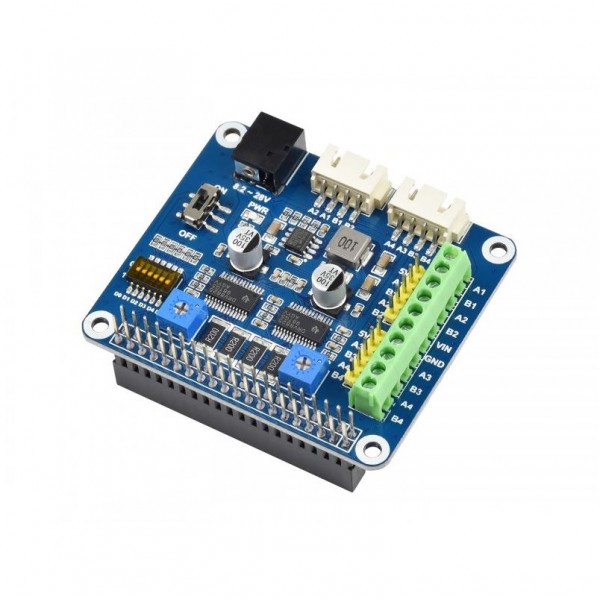

Waveshare Stepper Motor HAT - for Raspberry Pi

With this HAT for Raspberry two stepper motors can be controlled. The module also has a built-in voltage converter that can be used to power the Raspberry Pi.

Specifications:

• Supply voltage: 8.2-28V DC (via 5.5mm DC jack)
• Signal voltage: 3.3V
• Motor driver: DRV8825
  • Maximum output current (per phase): 2.5A* (adjustable)
  • Microstep support: Full-step, half-step, 1/4-step, 1/8-step, 1/16-step and 1/32-step
• Voltage converter: MP1584
  • Type: Non-isolated step-down
  • Output voltage: 5V DC
  • Maximum output current: 2A
• Connector (motors): JST-XH 4p male
• HAT for: All Raspberry Pi SBC models

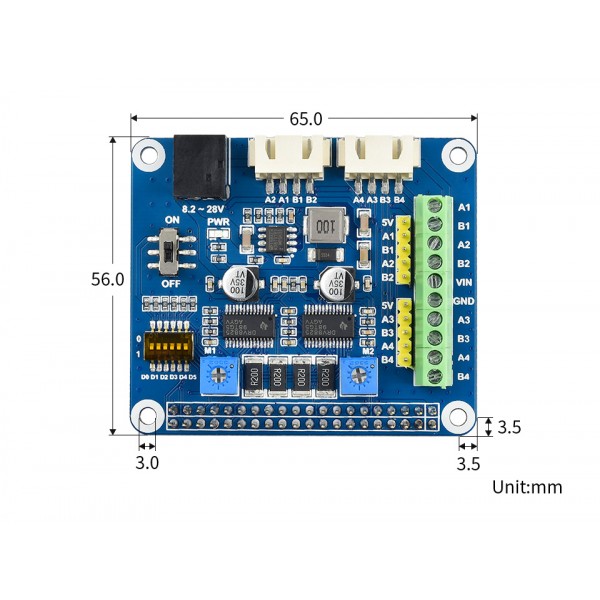

• Dimensions: See images

Package contents:

• 1x Waveshare Stepper Motor HAT
• 2x Mounting material

See the following page for more information: Waveshare Stepper Motor HAT.

*Note: It might be that (active) cooling is required from ~1.5A.

Note: The Raspberry Pi, motors and cables are not included.
