TMC2226 Motor Driver Module - V1.1

Availability: Directly available from warehouse in Eindhoven
SKU: 004455

Based on 0 review(s) - Write a review

€8.75

Ex Tax: €7.23

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

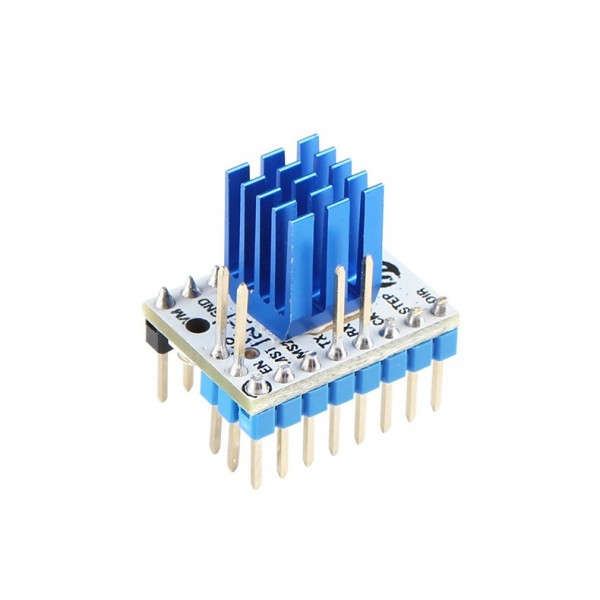

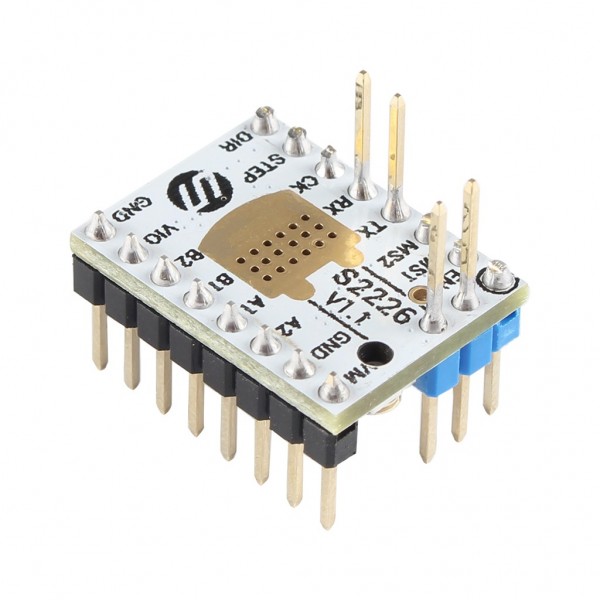

This stepper motor driver module can be used separately or in combination with a CNC shield or 3D printer. Compared to many other stepper motor drivers, this one has a number of special features, including:

StealthChop2™ technology for quieter stepper motors
SpreadCycle™ technology for smoother movement
CoolStep™ technology for energy savings of up to 75% compared to previous generations
StallGuard™ technology for resistance detection and sensorless homing

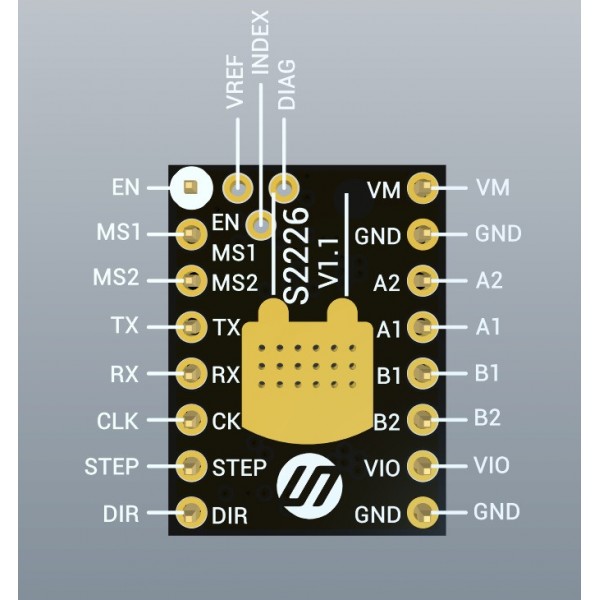

Note: The motor direction is reversed compared to the A4988 and DRV8825 based drivers. You can make changes to the software or mirror the motor pins (hardware).

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over TMC2226 Motor Driver Module - V1.1

Average Rating:

This product has 0 review(s) in total.

Datasheet: 004455_TMC2226_Datasheet_V106.pdf

Tags: TMC2226 Motor Driver Module - V1.1 , TMC2226DRIVERMODV1.1 , Stepper Motor Controllers and Drivers

Specifications

General
Brand	FYSETC
Manufacturer model/SKU	S2226
Model revision	V1.1
Features	Motor driver
General physical appearance
Main color	White
Weight [g]	4 (including heatsink)
Dimension X [mm]	20
Dimension Y [mm]	15
Mounting options	Pin headers
Form factor	Module (general)
Experiment PCB friendly	Yes
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	5.2
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5.2
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	UART Digital (Step/Dir)
Motor driver
Type	Driver
Driver chip	TMC2226
Supported motor type(s)	Stepper motor
Number of stepper motor channels	1
Microstepping	1/2 1 (full step) 1/4 1/8 1/16 1/32 1/64 1/128 1/256 (1/16, 1/32, 1/64 and 1/8 via MS1 en MS2 pins, others via UART)
Minimum motor supply voltage [V DC]	4.8
Maximum motor supply voltage [V DC]	29
Maximum continuous RMS current per phase [A]	2
Maximum peak current per phase [A]	2.8
Current limiter	Yes, adjustable
Measuring resistance [Ω]	0.11
Safety features	Short circuit Temperature Undervoltage Overcurrent
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Motor connector(s)	Pin header male (2.54mm)
Package contents

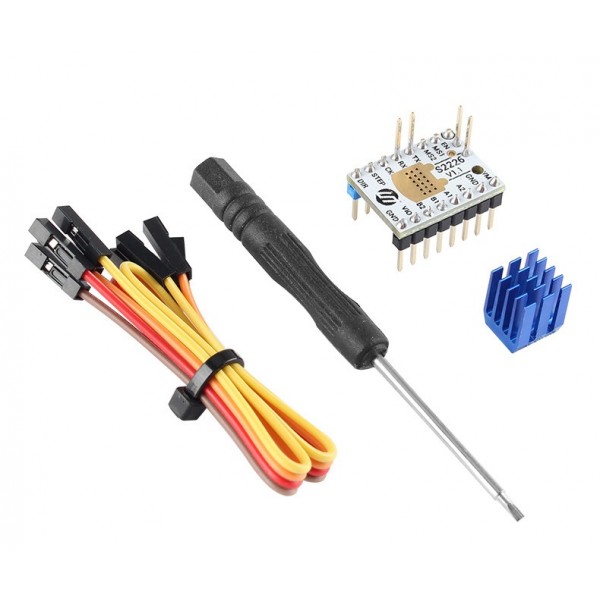

Package contents	1x TMC2226 Motor Driver 1x Heatsink 1x Screwdriver 1x Female-female DuPont cable 4p 20cm
