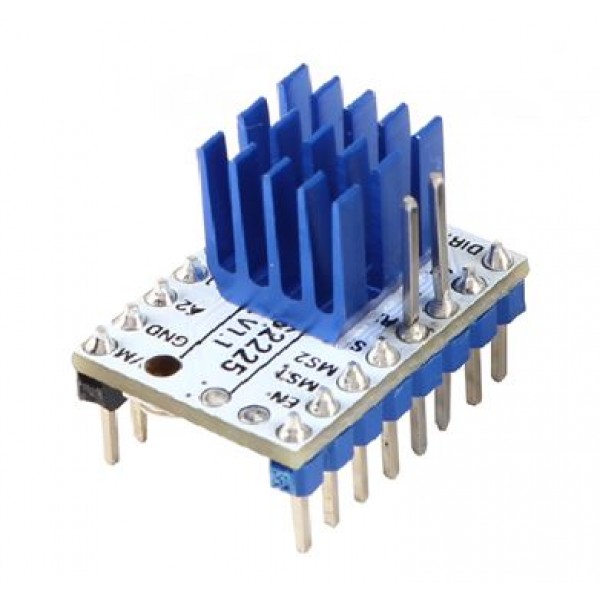

TMC2225 Motor Driver Module - V1.1

This TMC2225 is similar to the TMC2208 Motor Driver. This stepper motor driver module can be used separately or in combination with a CNC shield or 3D printer.

Specifications:

• Motor voltage range (VM): 4.75-36V
• Logic voltage range (VIO): 3-5V
• Maximum motor phase current: 1.4A RMS, 2.0A peak
• Current limit that can be set with the potentiometer
• Supports up to 1/256-step
• Supports configuration via CFG Pins or UART (RX and TX Pins)
• UART Configuration interface: 9600-500k Baud
• RX and TX pins are accessible from the top
• Has StealthChop™ technology for quieter stepper motors
• Has SpreadCycle™ technology for smoother movements
• Protection built-in for too high temperatures, high currents, too low voltage (UVLO) and short circuit
• Comes with cooling block for better cooling (cooling block can be placed on the side without components)

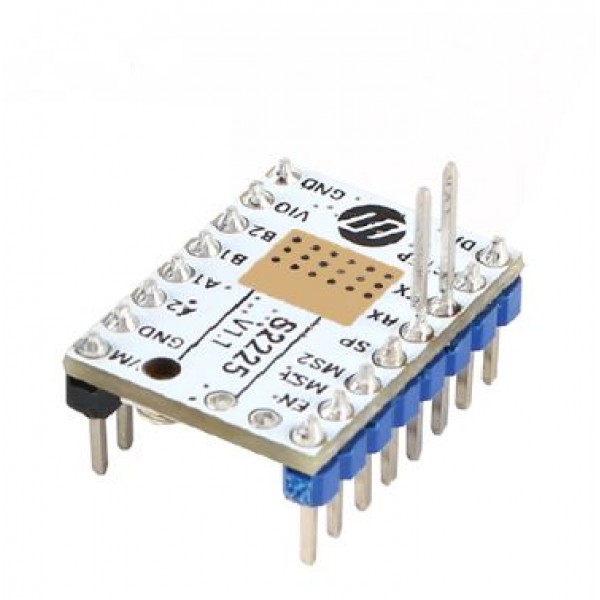

• Pin designations are printed on the top of the module

Package contents:

• 1x TMC2225 Motor Driver
• 1x Cooling block
• 1x Screwdriver (Flat jaw)
• 1x 20cm 2p Female-Female dupont/jumper cable

Note: The motor direction is reversed from the A4988 and DRV8825 based drivers. You can make changes in the software or mirror the motor pins (hardware).

See the following page for more information: Wiki
