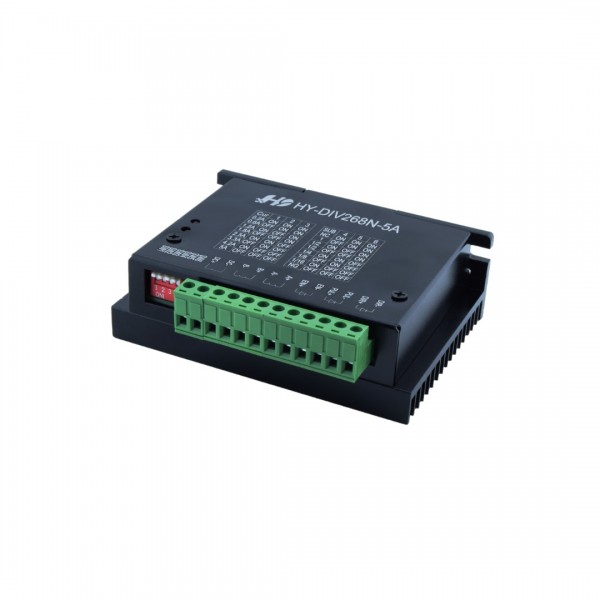

HY-DIV268N-5A TB6600 Stepper Motor Controller - 5A - 8-42V

Easy to set stepper motor control for a bipolar stepper motor .

Specifications:

• Voltage range (power supply): 8-42VDC (12-36V recommended)
• Voltage range (signals): 2.0-5.5V
• Maximum peak current per bridge (adjustable via dipswitch): 0.2A, 0.6A, 1.2A, 1.8A, 2.5A, 3.3A, 4.2A, 5.0A
• 5 micro step options
• Driver type: Toshiba TB6600
• Input signal isolation via optocouplers
• Built-in thermal protection
• Built-in protection against over current
• Built-in heatsink

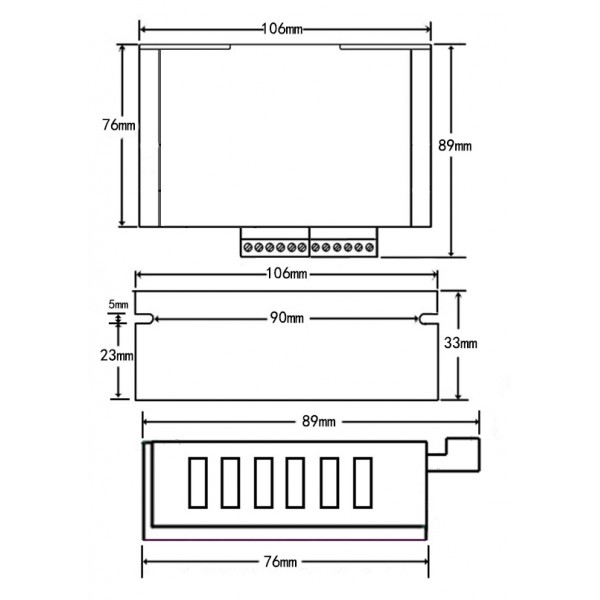

• Dimensions: 106x76x33mm (without screw terminals)

Learn more: Tutorial with an Arduino Due.
