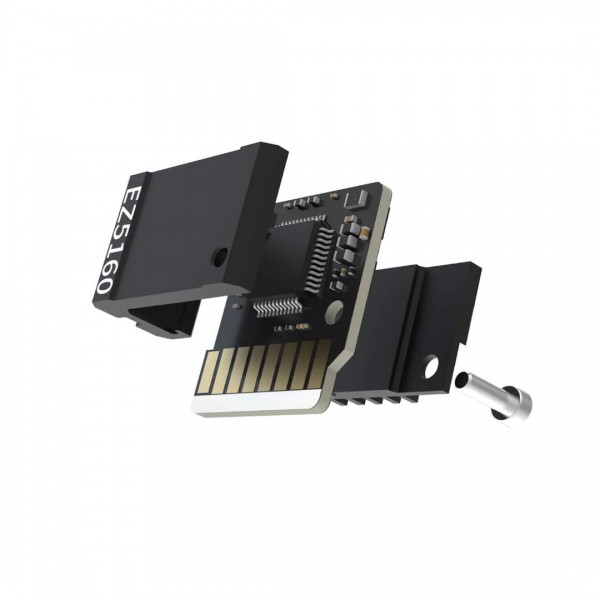

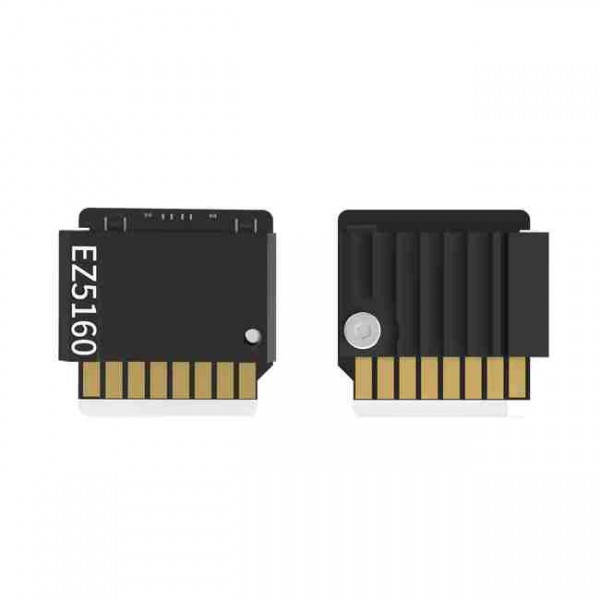

BIGTREETECH EZ5160 Pro Motor Driver Module - TMC5160

Based on 0 review(s) - Write a review

€13.50

Ex Tax: €11.16

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

BIGTREETECH's EZ motor drivers are new motor drivers, with a robust connector and integrated heatsinks.

See the following page for more information: GitHub

Please login or register to review

This product has 0 review(s) in total.

Tags: BIGTREETECH EZ5160 Pro Motor Driver Module - TMC5160 , BTT-1050000054 , Stepper Motor Controllers and Drivers

General
Brand	BIGTREETECH
Manufacturer model/SKU	EZ5160 Pro
Features	Motor driver
General physical appearance
Main color	Black
Weight [g]	5
Dimension X [mm]	20
Dimension Y [mm]	20
Dimension Z [mm]	9
Mounting options	Clamp
Form factor	Module (general) EZ driver
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	5.2
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5.2
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	SPI Digital (Step/Dir)
Motor driver
Type	Driver
Driver chip	TMC5160
Supported motor type(s)	Stepper motor
Direction of rotation	Bi-directional
Number of stepper motor channels	1
Microstepping	1/2 1 (full step) 1/4 1/8 1/16 1/32 1/64 1/128 1/256
Minimum motor supply voltage [V DC]	8
Maximum motor supply voltage [V DC]	48 (with active cooling) 36 (without active cooling)
Maximum continuous RMS current per phase [A]	2.5 (with active cooling) 1.5 (without active cooling)
Maximum peak current per phase [A]	3
Current limiter	Yes, adjustable
Measuring resistance [Ω]	0.075
Safety features	Short circuit Temperature Undervoltage Overcurrent
Connectors
Power supply connector(s)	EZ male
IO-connector(s)	EZ male
Motor connector(s)	EZ male
Package contents
Package contents	1x EZ5160 Pro
