BIGTREETECH EZ2209 Motor Driver Module - TMC2209

Based on 0 review(s) - Write a review

€7.00

Ex Tax: €5.79

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

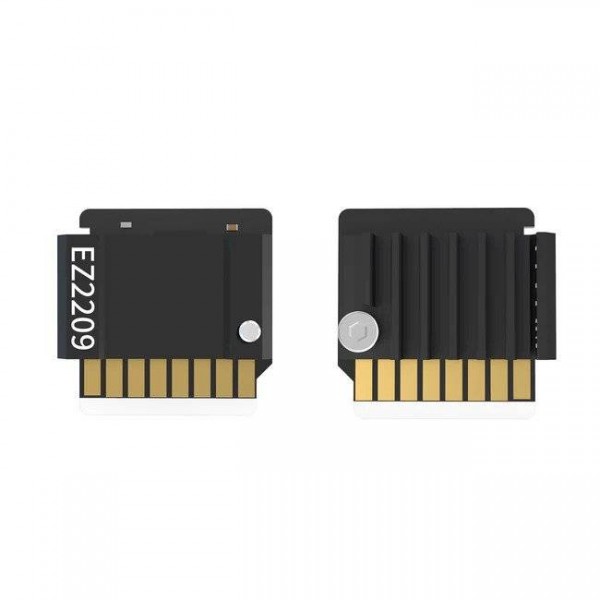

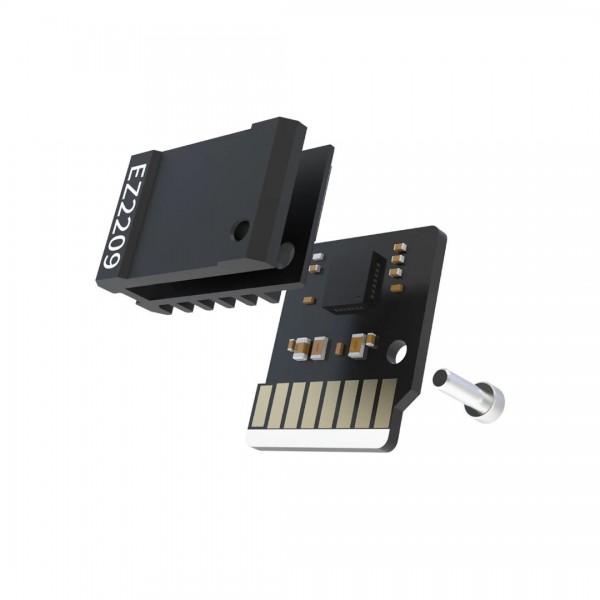

BIGTREETECH's EZ motor drivers are new motor drivers, with a robust connector and integrated heatsinks.

Note: The color of the heatsink may differ (red (V1.1) or black (V1.0))

See the following page for more information: GitHub

Please login or register to review

This product has 0 review(s) in total.

Tags: BIGTREETECH EZ2209 Motor Driver Module - TMC2209 , BTT-EZ2209 , Stepper Motor Controllers and Drivers

General
Brand	BIGTREETECH
Manufacturer model/SKU	EZ2209
Model revision	V1.0 or V1.1
Features	Motor driver
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	20
Dimension Y [mm]	20
Dimension Z [mm]	8
Mounting options	Clamp
Form factor	Module (general) EZ driver
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	5.2
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5.2
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	UART Digital (Step/Dir)
Motor driver
Type	Driver
Driver chip	TMC2209
Supported motor type(s)	Stepper motor
Number of stepper motor channels	1
Microstepping	1/2 1 (full step) 1/4 1/8 1/16 1/32 1/64 1/128 1/256
Minimum motor supply voltage [V DC]	4.8
Maximum motor supply voltage [V DC]	24
Maximum continuous RMS current per phase [A]	2 (with active cooling) 1.3 (without active cooling)
Maximum peak current per phase [A]	2.8
Current limiter	Yes, adjustable (via UART)
Measuring resistance [Ω]	0.11
Safety features	Short circuit Temperature Undervoltage Overcurrent
Connectors
Power supply connector(s)	EZ male
IO-connector(s)	EZ male
Motor connector(s)	EZ male
Package contents
Package contents	1x EZ2209
