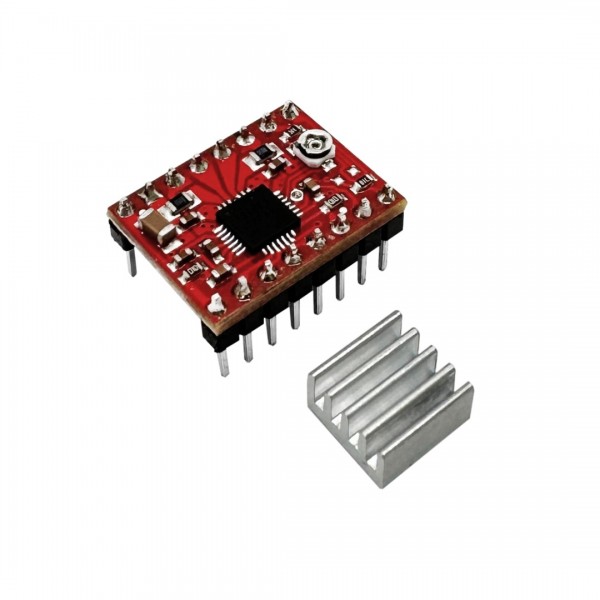

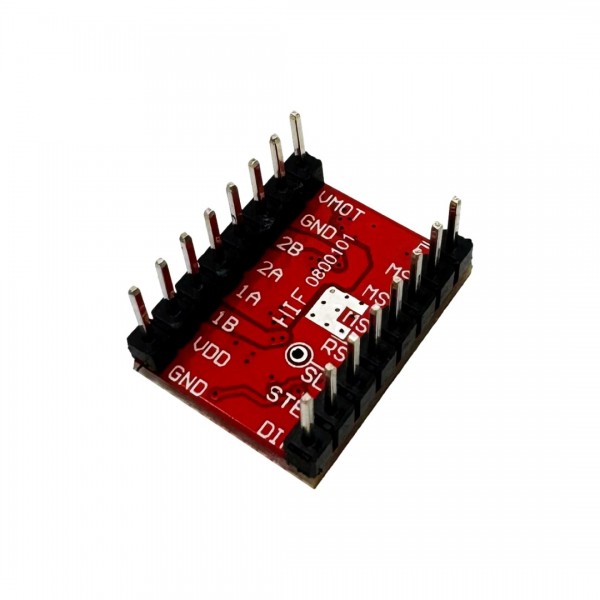

A4988 Motor Driver Module - Red

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

10 or more €2.75

20 or more €2.50

50 or more €2.25

100 or more €2.15

200 or more €2.10

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

This stepper motor driver module can be used separately, in combination with a CNC shield, or in a 3D printer

Please login or register to review

This product has 0 review(s) in total.

Tags: A4988 Motor Driver Module - Red , A4988DRIVERMODRED , Stepper Motor Controllers and Drivers

General
Brand	No brand
Features	Motor driver
General physical appearance
Main color	Red
Weight [g]	3
Dimension X [mm]	20
Dimension Y [mm]	15
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5.5
Communication
Hardware interface(s)	Digital (Step/Dir)
Motor driver
Type	Driver
Driver chip	A4988
Supported motor type(s)	Stepper motor
Direction of rotation	Bi-directional
Number of stepper motor channels	1
Microstepping	1/2 1 (full step) 1/4 1/8 1/16
Minimum motor supply voltage [V DC]	8
Maximum motor supply voltage [V DC]	35
Motor voltage [V DC]	Equal to motor supply voltage
Maximum continuous RMS current per phase [A]	1
Maximum peak current per phase [A]	2
Current limiter	Yes, adjustable
Measuring resistance [Ω]	0.05
Safety features	Short circuit Temperature Undervoltage Overcurrent
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Motor connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x A4988 Motor Driver Module - Red 1xHeat sink
