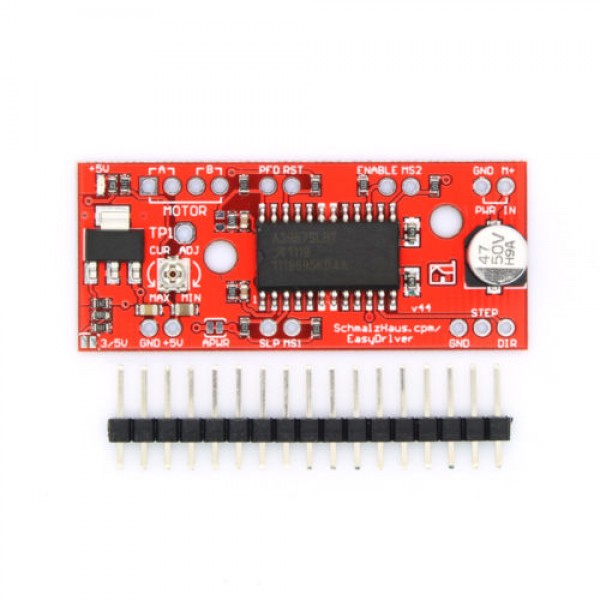

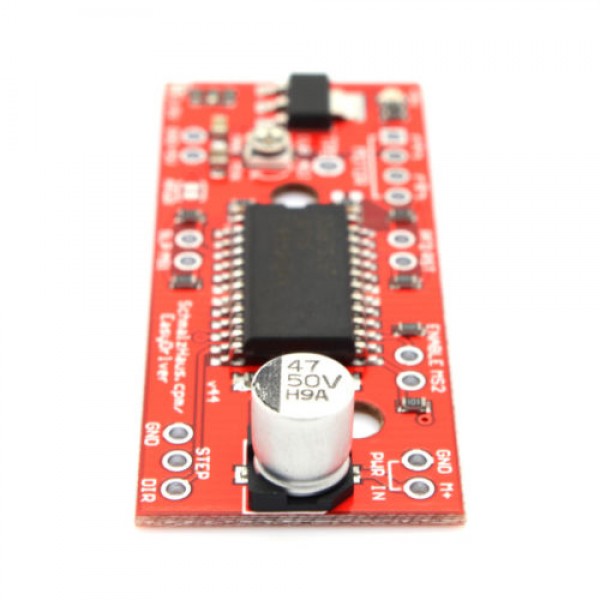

A3967 EasyDriver Stepper motor controller

Easy motor control for a bipolar stepper motor (2 phase stepper motor).
This is version 4.4 of the EasyDriver designed by Brian Schmalz, most of the information can be found on his page about this product: Easy Driver Stepper Motor Driver.

Specifications:

• Voltage: 7 - 30V DC
• Signal voltage: 5V DC
• Current: up to 700mA per phase (can be set with the potentiometer)

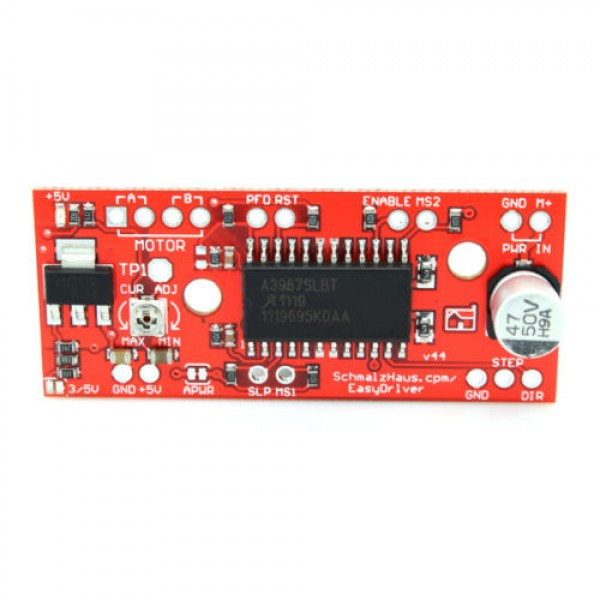

The names of the connections are visible on the PCB.

More information: A3967 Datasheet en Tutorial: Easy Driver Examples.
