Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels

Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004787
Based on 0 review(s) - Write a review
€19.50
Ex Tax: €16.12
Add to Cart
Add to wishlist

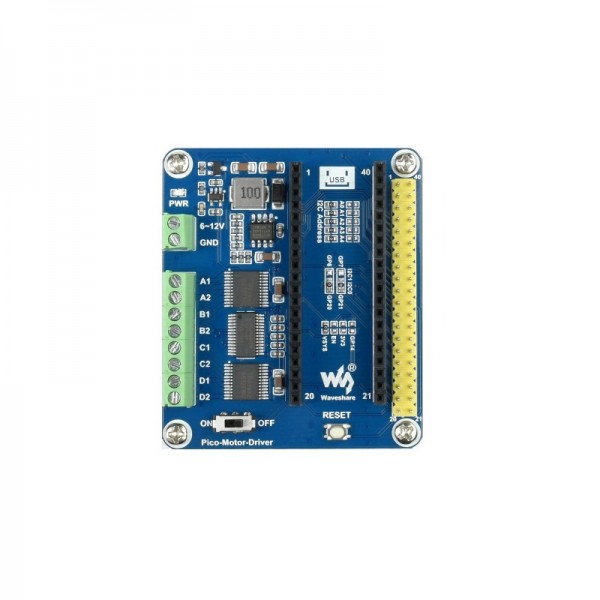

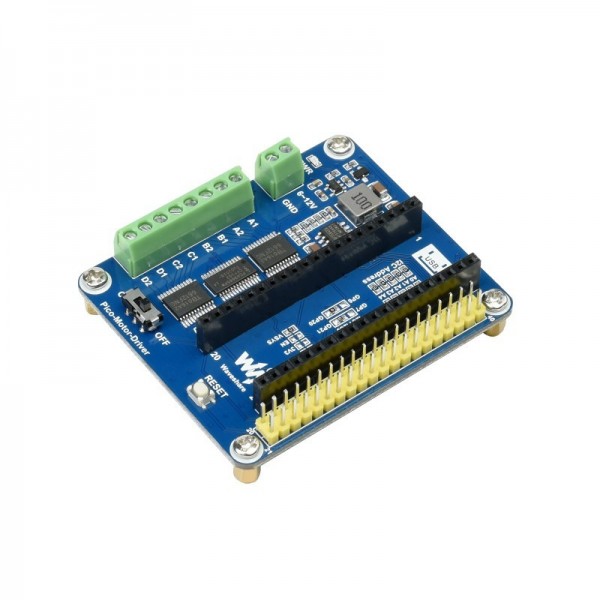

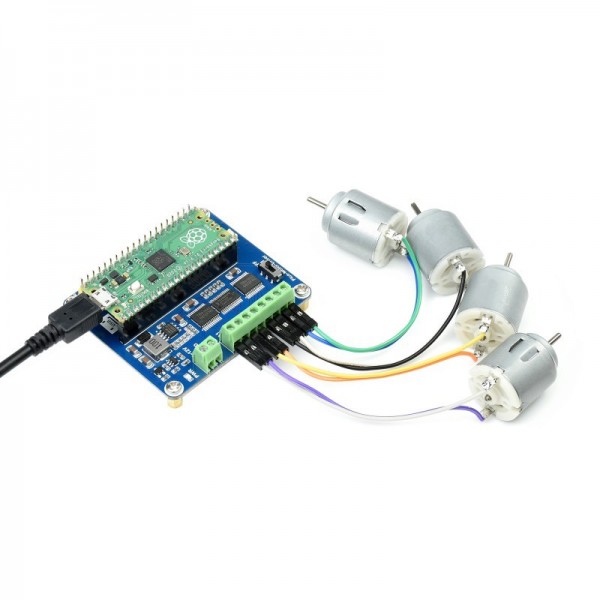

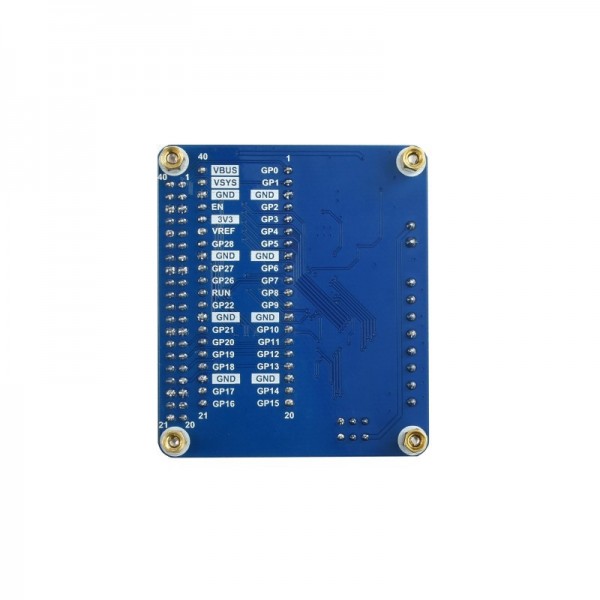

A DC motor driver module with 4 channels specially made for the Raspberry Pi Pico. The module has a built-in voltage converter that can power the Raspberry Pi Pico, so there is no need for a separate power supply for the Pico and the motors. Due to the relatively high output current of the converter, it is also possible to power other modules with it. The internal motor drivers are controlled via a PWM chip, which in turn is controlled via I2C by the Pico.

Note: No Raspberry Pi Pico is included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels

This product has 0 review(s) in total.

Tags: Motor Controllers and Drivers , DC-Motor Controllers and Drivers , Waveshare DC Motor Driver Module for Raspberry Pi Pico - 4 Channels , 004787 , Waveshare , 19764 , Motor driver , I2C

Specifications

General
Brand Waveshare
Manufacturer model/SKU
Features Motor driver
General physical appearance
Main color Blue
Weight [g] 29

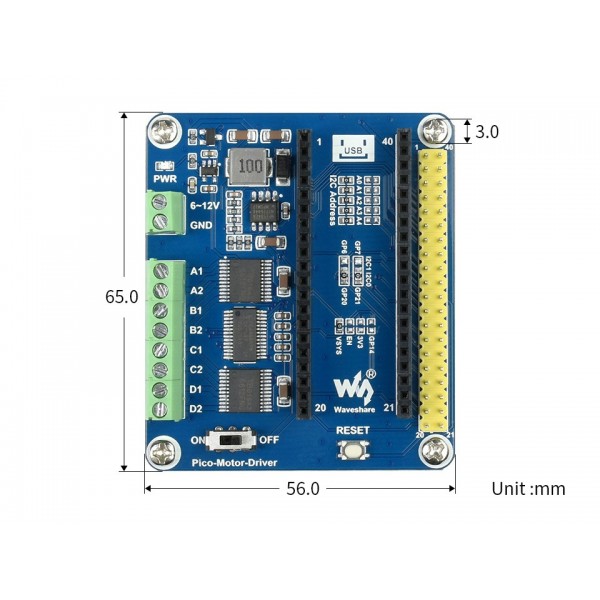

Dimension X [mm] 65
Dimension Y [mm] 56
Mounting options Mounting hole(s)
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 12
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3

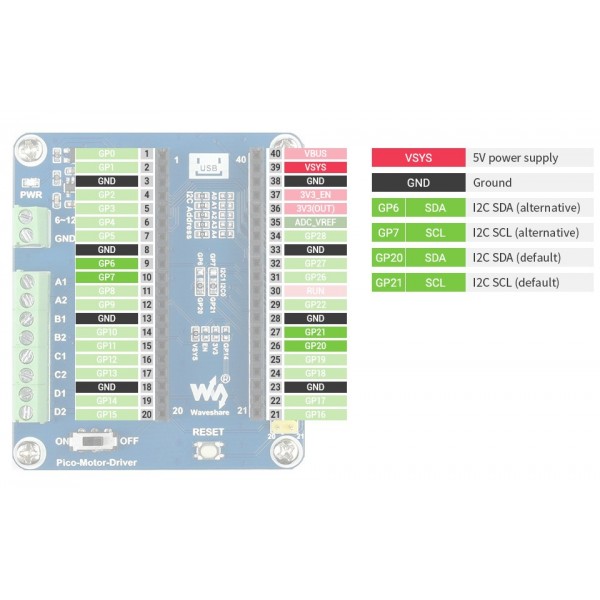

Communication
Hardware interface(s) I2C
Default I2C address 0x40
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] None
Motor driver
Type Driver
Driver chip TB6612
Supported motor type(s) DC motor
Solenoid
Number of DC motor channels 4
Minimum motor supply voltage [V DC] 5
Maximum motor supply voltage [V DC] 12
Motor voltage [V DC] 5.0
Maximum continuous RMS current per phase [A] 1.2
Maximum peak current per phase [A] 3
Maximum (RMS) current channels combined [A] 3.0
Current limiter No
Safety features Temperature
Connectors
Power supply connector(s) Screw terminal
Pin header female (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Motor connector(s) Screw terminal
Package contents
Package contents
