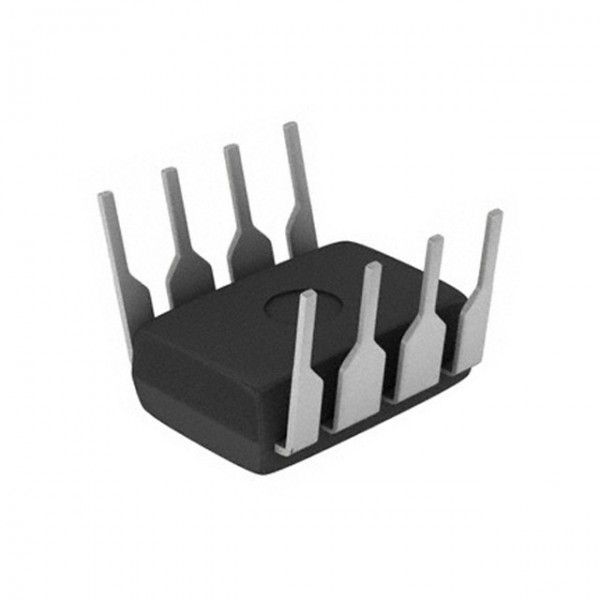

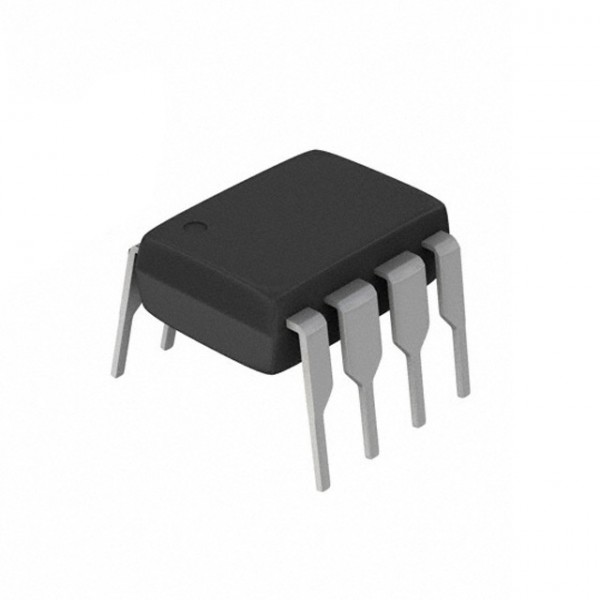

RZ7886 DC Motor Driver 7A - 8-pin DIP

RZ7886 DC Motor Driver 7A - 8-pin DIP
RZ7886 DC Motor Driver 7A - 8-pin DIP
RZ7886 DC Motor Driver 7A - 8-pin DIP
RZ7886 DC Motor Driver 7A - 8-pin DIP
RZ7886 DC Motor Driver 7A - 8-pin DIP
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004587
Based on 1 review(s) - Write a review
€1.25
Ex Tax: €1.03
Add to Cart
Add to wishlist

With this DC motor driver you can easily control a motor in two directions. The built-in flyback diodes protect the chip from inductive loads, such as the coils of a motor.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over RZ7886 DC Motor Driver 7A - 8-pin DIP

This product has 1 review(s) in total.

Tags: ICs and Microcontroller Chips , ICs , RZ7886 DC Motor Driver 7A - 8-pin DIP , 004587 , No brand , Motor driver , PWM

Specifications

General
Brand No brand
Minimum operating temperature [°C] -25
Maximum operating temperature [°C] 85
Features Motor driver
General physical appearance
Main color Black
Weight [g] 1
Dimension X [mm] 9.3
Dimension Y [mm] 6.2
Dimension Z [mm] 3.3
Mounting options THT
Form factor Individual component
Footprint/package PDIP8
Experiment PCB friendly Yes
General electrical properties
Minimum supply voltage [V DC] 3
Maximum supply voltage [V DC] 14
Indication (deep-)sleep current [μA] 2
Minimum IO-pin input voltage [V] 2.5
Maximum IO-pin input voltage [V] 6
Communication
Hardware interface(s) PWM
Motor driver
Type Driver
Driver chip RZ7886
Supported motor type(s) DC motor
Solenoid
Number of DC motor channels 1
Minimum motor supply voltage [V DC] 3
Maximum motor supply voltage [V DC] 14
Maximum continuous RMS current per phase [A] 7
Maximum peak current per phase [A] 13
Current limiter No
Safety features Overcurrent
Temperature
Short circuit
Connectors
Power supply connector(s) Solder pin(s) (THT)
IO-connector(s) Solder pin(s) (THT)
Motor connector(s) Solder pin(s) (THT)
Pin distance [mm] 2.54
Package contents
Package contents 1x RZ7886 DC Motor Driver
