Name: Open-Smart Quad DC Motor Driver Module - L293DD - 4x0.6A - OS-QUADMOTORDRIVER
SKU: 005376
Price: 6 EUR
Availability: InStock

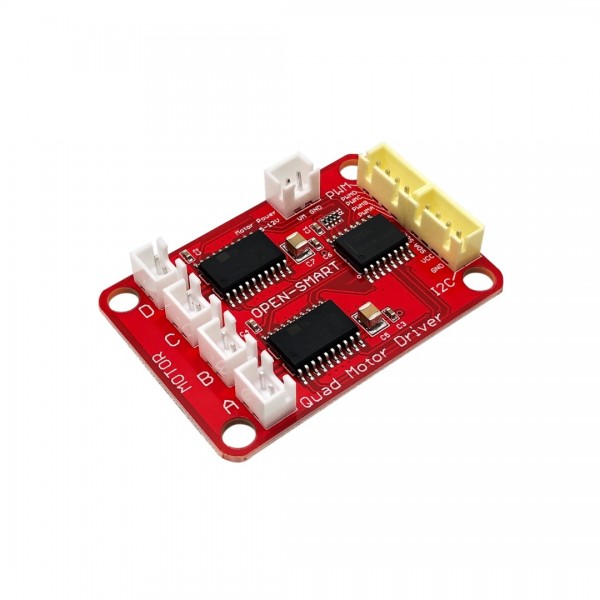

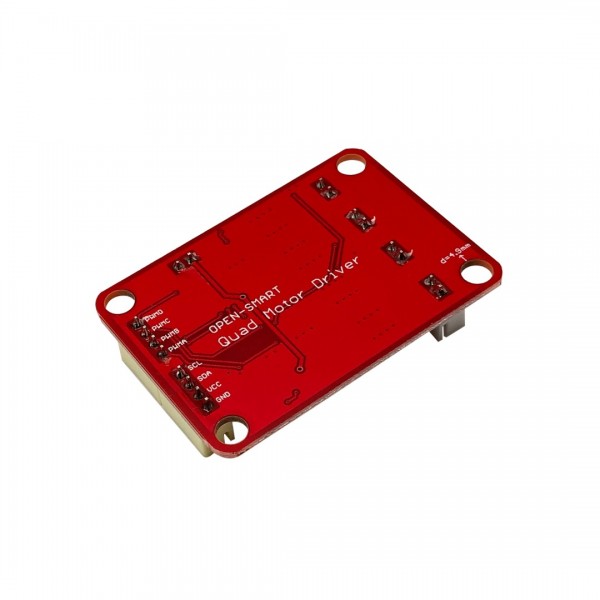

Open-Smart Quad DC Motor Driver Module - L293DD - 4x0.6A

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

A DC motor driver module from Open-Smart with 4 channels. This module can be used as a spare for the Open-Smart 4WD Car with Omnidirectional Wheels.

See the tab "Downloads" for the schematic diagram and an Arduino library.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Open-Smart Quad DC Motor Driver Module - L293DD - 4x0.6A , OS-QUADMOTORDRIVER , DC-Motor Controllers and Drivers

General
Brand	Open-Smart
Features	Motor driver
General physical appearance
Main color	Red
Weight [g]	12
Dimension X [mm]	56
Dimension Y [mm]	40
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4.9
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	6
Minimum IO-pin input voltage [V]	4.5
Maximum IO-pin input voltage [V]	6
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C PWM
(GP)IO expansion chip	PCF8574(T)
Default I2C address	0x20
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	4.7
Motor driver
Type	Driver
Driver chip	L293D
Supported motor type(s)	DC motor Solenoid
Direction of rotation	Bi-directional
Number of DC motor channels	4
Minimum motor supply voltage [V DC]	4.5
Maximum motor supply voltage [V DC]	12
Motor voltage [V DC]	Equal to motor supply voltage
Maximum continuous RMS current per phase [A]	0.6 (above 0.3A additional cooling is required)
Maximum peak current per phase [A]	1.2
Maximum (RMS) current channels combined [A]	2.4
Current limiter	No
Safety features	Temperature
Connectors
Power supply connector(s)	JST-XH (compatible) male
IO-connector(s)	JST-XH (compatible) male
Motor connector(s)	JST-XH (compatible) male
Package contents
Package contents	1x Motor driver module
