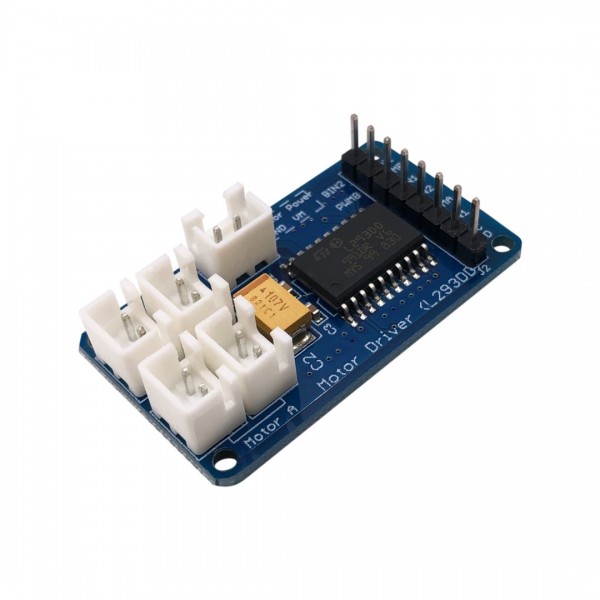

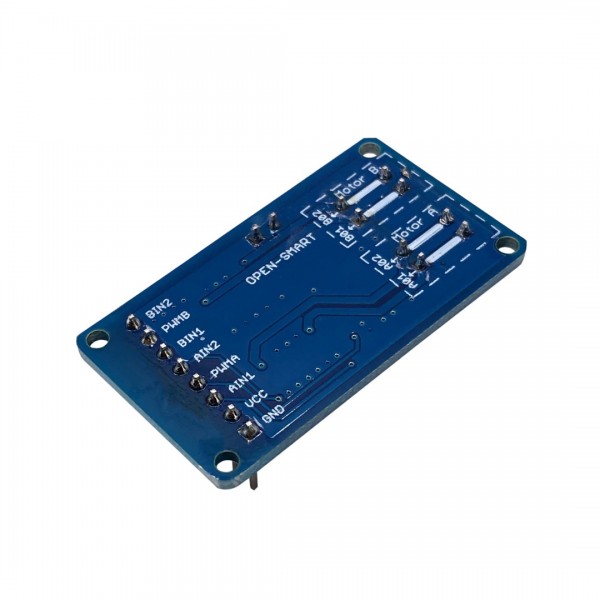

Open-Smart Dual DC Motor Driver Module - L293DD - 2x0.6A

Based on 0 review(s) - Write a review

€3.50

Ex Tax: €2.89

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A DC motor driver module from Open-Smart with 2 channels.

Please login or register to review

This product has 0 review(s) in total.

Tags: Open-Smart Dual DC Motor Driver Module - L293DD - 2x0.6A , OS-DUALMOTORDRIVER , DC-Motor Controllers and Drivers

General
Brand	Open-Smart
Features	Motor driver
General physical appearance
Main color	Blue
Weight [g]	6
Dimension X [mm]	42
Dimension Y [mm]	24
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.3
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	30
Minimum IO-pin input voltage [V]	4.5
Maximum IO-pin input voltage [V]	30
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	PWM Digital
Motor driver
Type	Driver
Driver chip	L293D
Supported motor type(s)	DC motor Solenoid
Direction of rotation	Bi-directional
Number of DC motor channels	2 (2 connectors per channel)
Minimum motor supply voltage [V DC]	4.5
Maximum motor supply voltage [V DC]	30
Motor voltage [V DC]	Equal to motor supply voltage
Maximum continuous RMS current per phase [A]	0.6 (above 0.3A additional cooling is required)
Maximum peak current per phase [A]	1.2
Maximum (RMS) current channels combined [A]	1.2
Current limiter	No
Safety features	Temperature
Connectors
Power supply connector(s)	JST-XH (compatible) male Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Motor connector(s)	JST-XH (compatible) male
Package contents
Package contents	1x Motor driver module
