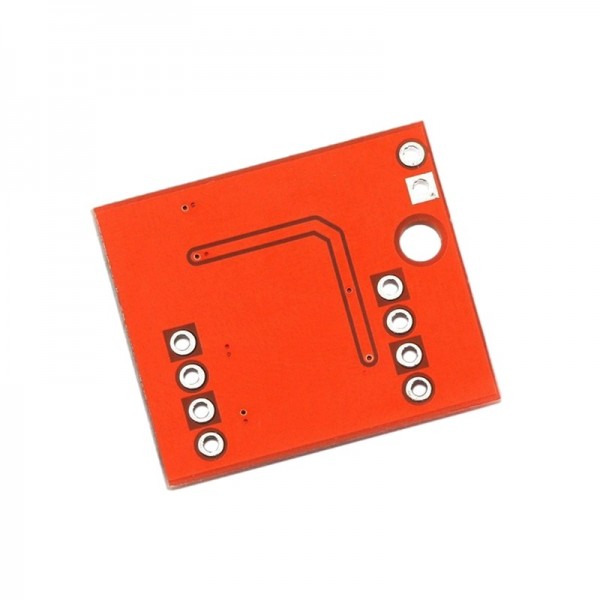

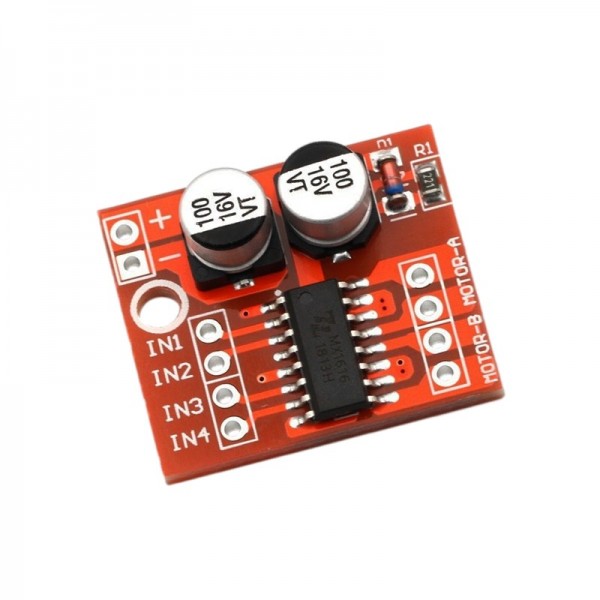

MX1508 DC-Motor Driver

This small module can control two DC motors.

Specifications:

• Supply voltage: 2 - 9.6V DC
• Signal voltage: 3.3 - 5V
• Maximum continuous current per bridge: 1.5A
• Maximum peak current per bridge: 2.5A
• Number of channels: 2
• Mounting hole diameter: 3mm
• Built-in overheating protection: Yes
• Dimensions PCB: 25 x 21mm

See the following page for a tutorial in combination with a Uno: Tutorial for Arduino Mini DC Motor Driver.

Note: It is recommended to use ceramic capacitors of 100nF across the motor terminals.

Note: No pin headers are included.

Note: This module can also be used for bipolar stepper motors, but we do not recommend this because this module has no built-in current limitation.
