Name: L293DN Motor Driver - 16-pin DIP - L293D
SKU: 001353
Price: 1.75 EUR
Availability: InStock
Rating: 5 (1 reviews)

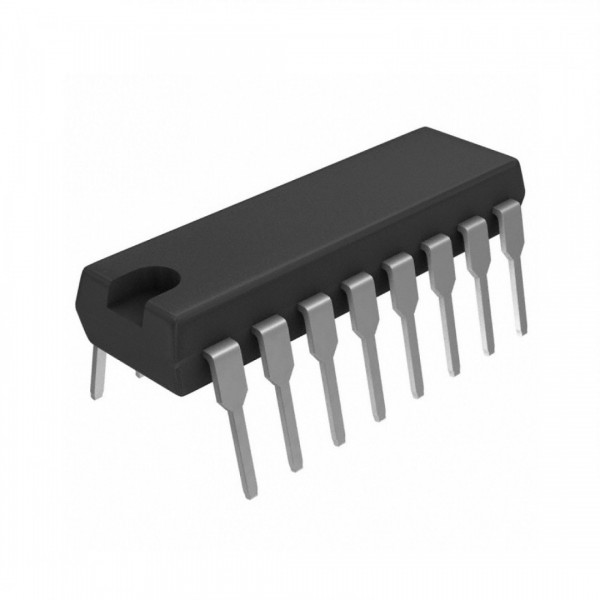

L293DN Motor Driver - 16-pin DIP

Based on 1 review(s) - Write a review

€1.75

Ex Tax: €1.45

10 or more €1.70

20 or more €1.65

50 or more €1.60

100 or more €1.55

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

A commonly used motor driver with built-in H-bridges to control, for example, two DC motors or a (small) stepper motor.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 1 review(s) in total.

Tags: L293DN Motor Driver - 16-pin DIP , L293D , ICs

General
Brand	HGSemi
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	85
Features	Motor driver
General physical appearance
Main color	Black
Weight [g]	1
Mounting options	THT
Form factor	Individual component
Footprint/package	PDIP16
Experiment PCB friendly	Yes
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	36
Minimum IO-pin input voltage [V]	2.3
Maximum IO-pin input voltage [V]	7
Communication
Hardware interface(s)	Digital
Motor driver
Type	Driver
Driver chip	L293D
Supported motor type(s)	DC motor Solenoid
Direction of rotation	Bi-directional
Number of DC motor channels	2
Minimum motor supply voltage [V DC]	4.5
Maximum motor supply voltage [V DC]	36
Maximum continuous RMS current per phase [A]	0.6
Maximum peak current per phase [A]	1.2
Current limiter	No
Connectors
Power supply connector(s)	Solder pin(s) (THT)
IO-connector(s)	Solder pin(s) (THT)
Motor connector(s)	Solder pin(s) (THT)
Package contents
Package contents	1x L293DN
