Keyestudio L298P DC Motor Driver Shield - for Arduino

Based on 0 review(s) - Write a review

€9.50

Ex Tax: €7.85

Qty

Add to Cart

Add to wishlist

Only 7 pieces in stock

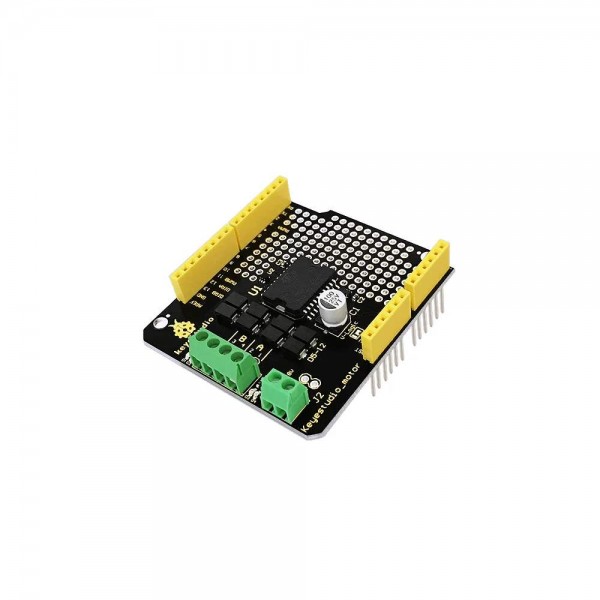

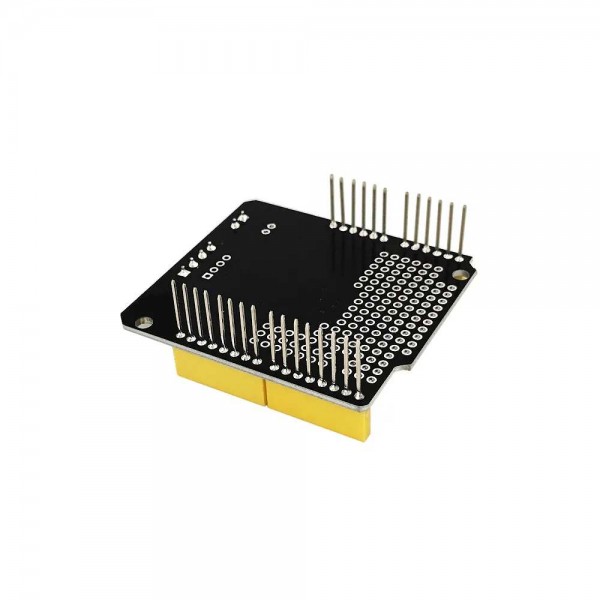

The Keyestudio L298P DC-Motor Driver shield is compatible with the Arduino uno R3 and can be stacked onto the board.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: Keyestudio L298P DC Motor Driver Shield - for Arduino , KS0007 , DC-Motor Controllers and Drivers

General
Brand	Keyestudio
Manufacturer model/SKU	KS0007
Features	Motor driver
General physical appearance
Main color	Black
Weight [g]	20
Dimension X [mm]	60
Dimension Y [mm]	54
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3.5
Form factor	Module (general) Uno layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	Digital
Motor driver
Type	Driver
Driver chip	L298
Supported motor type(s)	DC motor Solenoid
Direction of rotation	Bi-directional
Number of DC motor channels	2
Minimum motor supply voltage [V DC]	7
Maximum motor supply voltage [V DC]	18
Motor voltage [V DC]	Equal to motor supply voltage
Maximum continuous RMS current per phase [A]	2
Maximum peak current per phase [A]	2.5
Maximum (RMS) current channels combined [A]	4.0
Current limiter	No
Safety features	Temperature
Connectors
Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm) Through hole solder pin(s) (2.54mm)
Motor connector(s)	Screw terminal Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x DC Motor Driver Shield
