Name: M5STACK BLDC Driver Unit - DRV11873 - M5STACK-U181
Brand: M5Stack
SKU: 006263
Price: 8 EUR
Availability: InStock

M5STACK BLDC Driver Unit - DRV11873

Availability: Directly available from warehouse in Eindhoven
SKU: 006263

Based on 0 review(s) - Write a review

€8.00

Ex Tax: €6.61

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

Description
Reviews

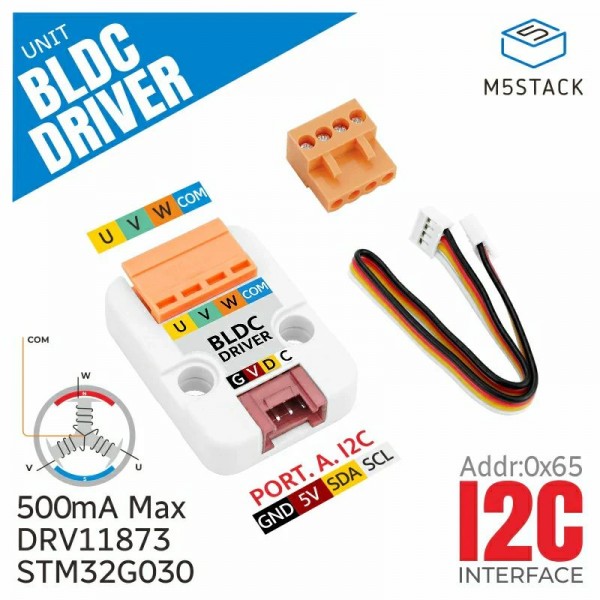

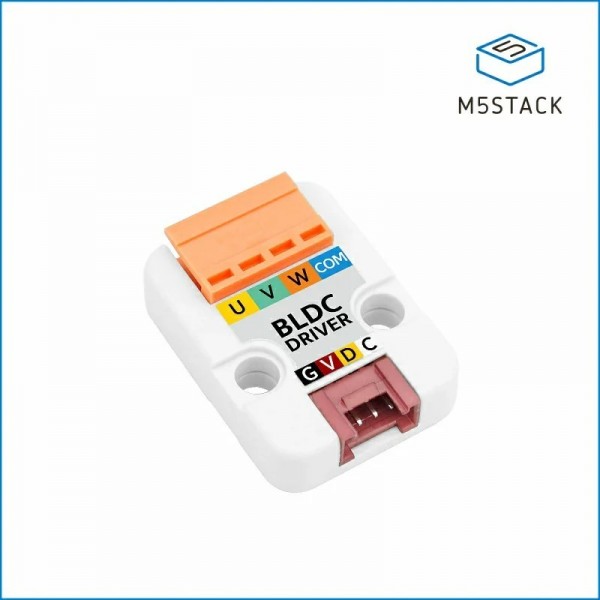

A motor driver module from M5Stack to control a brushless DC motor (BLDC). The module contains a microcontroller that can be controlled via I2C. The microcontroller in turn controls the motor driver. Both the driver and the motor are powered via the Grove connector.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5STACK BLDC Driver Unit - DRV11873

Average Rating:

This product has 0 review(s) in total.

Tags: M5STACK BLDC Driver Unit - DRV11873 , M5STACK-U181 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U181
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Motor driver Enclosure
General physical appearance
Main color	White
Weight [g]	5
Dimension X [mm]	32
Dimension Y [mm]	24
Dimension Z [mm]	8
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x65
Adjustable I2C address	Yes
Built-in pull-up resistor(s) [kΩ]	3.6
Motor driver
Type	Driver
Driver chip	DRV11873
Supported motor type(s)	Brushless DC motor
Direction of rotation	Bi-directional
Number of brushless DC motor channels	1
Minimum motor supply voltage [V DC]	5
Maximum motor supply voltage [V DC]	5
Motor voltage [V DC]	Equal to motor supply voltage
Maximum continuous RMS current per phase [A]	0.5
Safety features	Temperature Undervoltage Overcurrent
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male

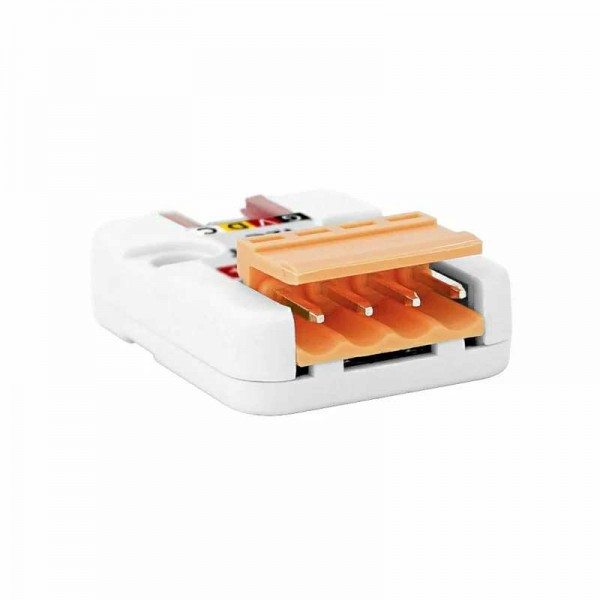

Motor connector(s)	Detachable block male (HT3.96)
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x BLDC driver unit 1x Detachable screw terminal (HT3.96) 1x Grove female cable
