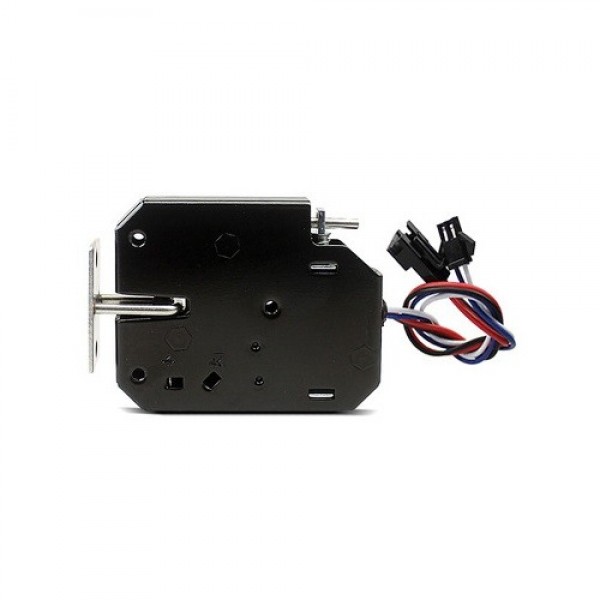

Electronic Lock with Feedback - Metal - 12V DC

This electronic lock is perfect for cabinet doors, drawers and more. The lock opens by applying a voltage to the red and black wire (polarity does not matter), at this moment the included hook that slides into the lock springs out. Once the lock is closed, the blue and white wires are connected to each other via an internal switch.

Note: Do not activate the solenoid for more than 1s to prevent the coil in the lock from burning out. After each activation, give the solenoid at least 60s to cool down.

Check the tab "Downloads" for more information and/or downloads.
