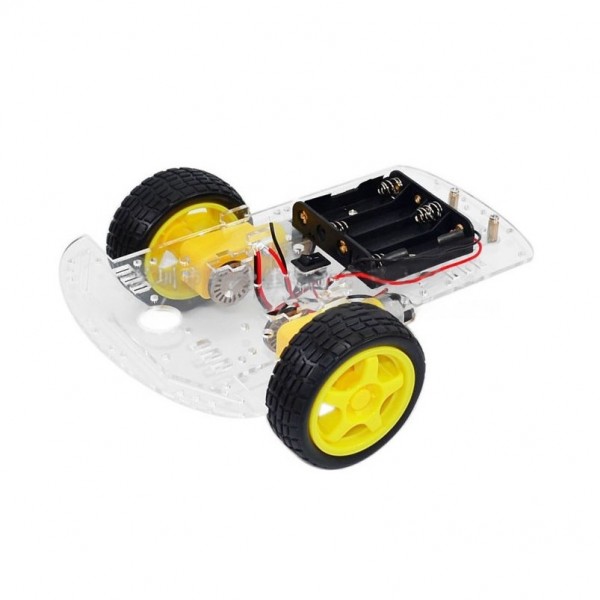

Car Kit - DIY

This car can easily be assembled to a small car. The car is powered by 2 motors and has 1 caster wheel in the front.
By controlling the speed of the left and right motors the car is able to go forwards, backwards, left and right.

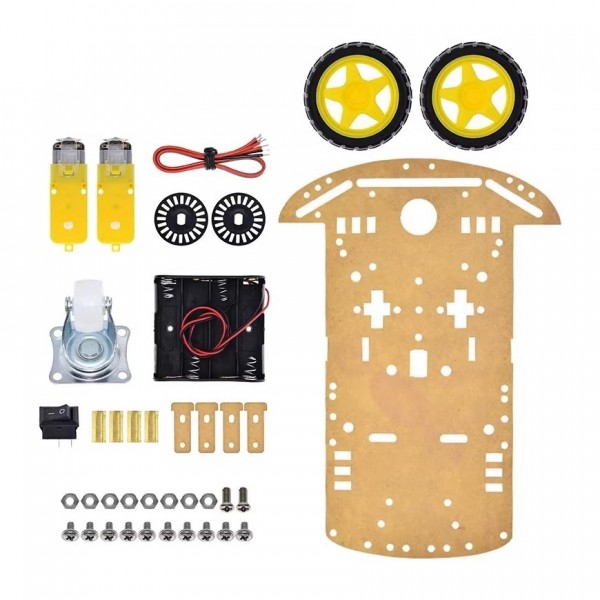

This kit includes:

• 1x Car chassis assembly plate.
• 2x Motor (see specifications)
• 2x Wheel (see specifications)
• 1x Caster wheel
• 2x Wheel light-slot encoder (can be used for speed measurement)
• 4x AA Battery holder (connected in series for 6V total)
• 1x Switch
• 4x Motor mounting bracket
• 4x Bolt - M3 - 30mm
• 2x Countersunk bolt - M3 - 6mm
• 4x Spacer - M3 - 10mm
• 8x Bolt - M3 - 6mm
• 6x Nut - M3

Dimensions of the car chassis: 214 x 152 x 3mm (wide part) and 214 x 102 x 3mm (small part)

The motors have an internal gear ratio of 48:1. The motors can be supplied with 3 - 6 VDC and can use up to 120 mA of current.

Note: Do not forget to remove the brown/white foil from the chassis before use.
