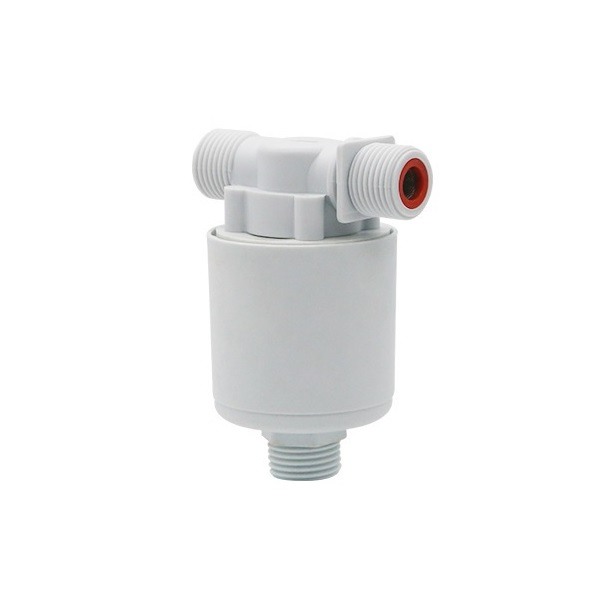

Float Valve with External Inlet - G1/2"

Float Valve with External Inlet - G1/2
Float Valve with External Inlet - G1/2
Float Valve with External Inlet - G1/2
Float Valve with External Inlet - G1/2
Float Valve with External Inlet - G1/2"
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004664
€4.50
Ex Tax: €3.72

A float valve that can be used, for example, to keep a water reservoir leveled. As soon as the water level reaches halfway the float, the internal valve will close. This variant has an external connection to connect the float. This allows the float valve to be placed outside the reservoir.

Note: We cannot provide any warranty when this product is used with any liquid other than clean spring/tap water (non-potable).

Note: The liquid can only flow in one direction, indicated by an arrow.

Please login or register to review

Reviews Over Float Valve with External Inlet - G1/2"

This product has 0 review(s) in total.

Specifications

General
Brand No brand
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 80
Features Ventiel
General physical appearance
Main color Gray/silver
Weight [g] 86
Dimension X [mm] 52
(without G1/2" thread)
Dimension Y [mm] 52
Dimension Z [mm] 83
(without G1/2" thread)
Valve
Valve type Float valve
Control Automatic
(based on water level)
Flow regulation NO (normally open)
Fluid connector
Coupling type(s) G1/2" external thread
Flow orientation Straight
Flow direction Unidirectional
Material Nylon
Suitable liquids/gasses Clean water
Minimum pressure difference [bar] 0.2
Maximum pressure [bar] 8
Package contents
Package contents 1x Float valve
