Name: Sunon MF80252V3-A99 - Fan 80x80x25mm - 24V - MF80252V3-A99-A
SKU: 004849
Price: 6.5 EUR
Availability: InStock

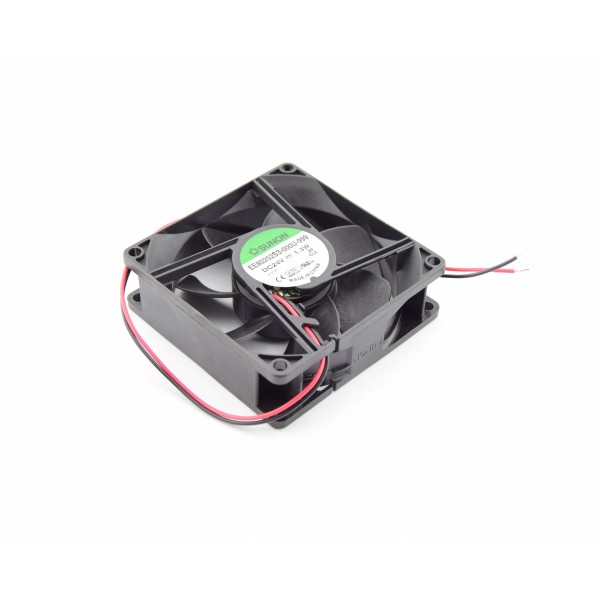

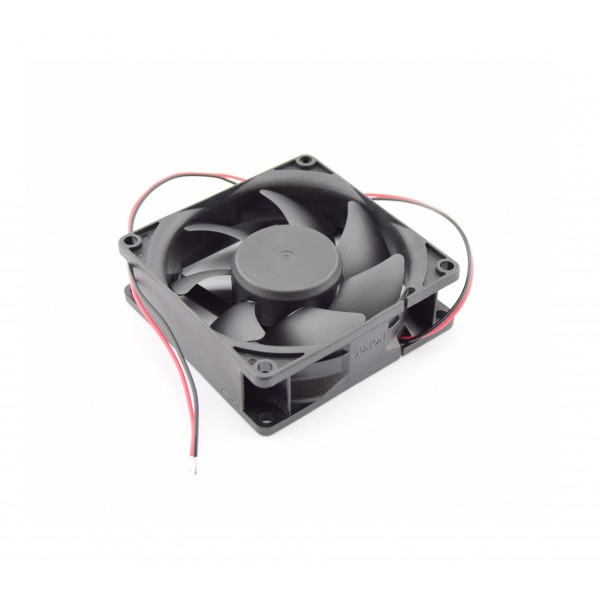

Sunon MF80252V3-A99 - Fan 80x80x25mm - 24V

Based on 0 review(s) - Write a review

€6.50

Ex Tax: €5.37

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Sunon fan with loose wires to cool your project.

For more information see the datasheet under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Sunon MF80252V3-A99 - Fan 80x80x25mm - 24V , MF80252V3-A99-A , Fans

General
Brand	Sunon
Manufacturer model/SKU	MF80252V3-A99
Norm conformity	RoHS CE
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	70
Lifespan [h]	70000 (See datasheet for exact specification)
Features	Fan
General physical appearance
Main color	Black
Weight [g]	77
Dimension X [mm]	80
Dimension Y [mm]	80
Dimension Z [mm]	25
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4.3
General electrical properties
Minimum supply voltage [V DC]	8
Maximum supply voltage [V DC]	27
Indication average current consumption [mA]	40
Actuator
Actuator type	Brushless DC motor
Maximum speed [RPM]	2600 (±10%) (@24V)
Fan
Air flow [m³/h]	56.1
Orientation	Axial
Indication maximum noise production [dBA]	28.0
Bearing
Bearing type	Sleeve (Vapo)
Connectors
Power supply connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	0.3
Package contents
Package contents	1x Fan
