Name: Sunon Fan 80x80x25mm - 12V - EE80251S3-999
SKU: 001829
Price: 4 EUR
Availability: InStock
Rating: 5 (1 reviews)

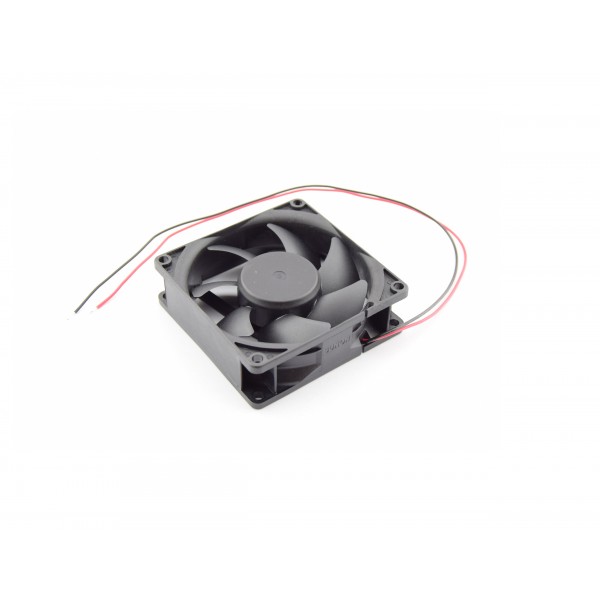

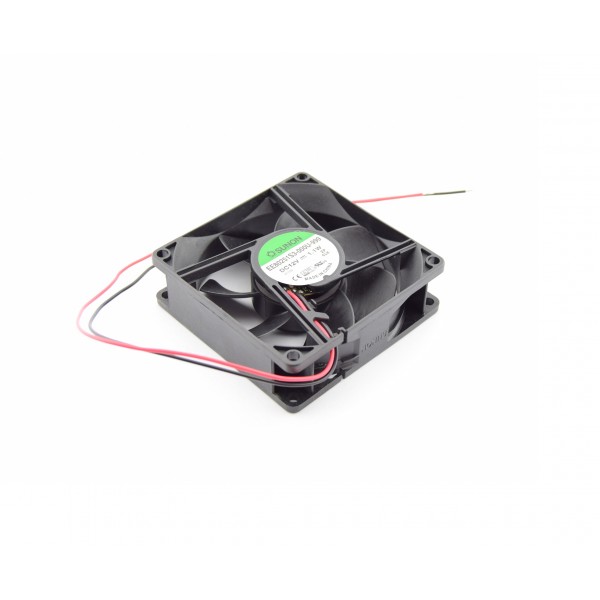

Sunon Fan 80x80x25mm - 12V

Based on 1 review(s) - Write a review

€4.00

Ex Tax: €3.31

10 or more €3.75

20 or more €3.50

50 or more €3.25

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Sunon fan with loose wires to cool your project.

For more information see the datasheet under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 1 review(s) in total.

Tags: Sunon Fan 80x80x25mm - 12V , EE80251S3-999 , Fans

General
Brand	Sunon
Manufacturer model/SKU	EE80251S3-999
Norm conformity	RoHS CE
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	70
Lifespan [h]	35000 (See datasheet for exact specification)
Features	Fan
General physical appearance
Main color	Black
Weight [g]	75
Dimension X [mm]	80
Dimension Y [mm]	80
Dimension Z [mm]	25
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4.3
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	13
Indication average current consumption [mA]	92
Actuator
Actuator type	Brushless DC motor
Maximum speed [RPM]	2600 (±10%) (@12V)
Fan
Air flow [m³/h]	56.1
Orientation	Axial
Indication maximum noise production [dBA]	28.0
Bearing
Bearing type	Sleeve
Connectors
Power supply connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	0.3
Package contents
Package contents	1x Fan
