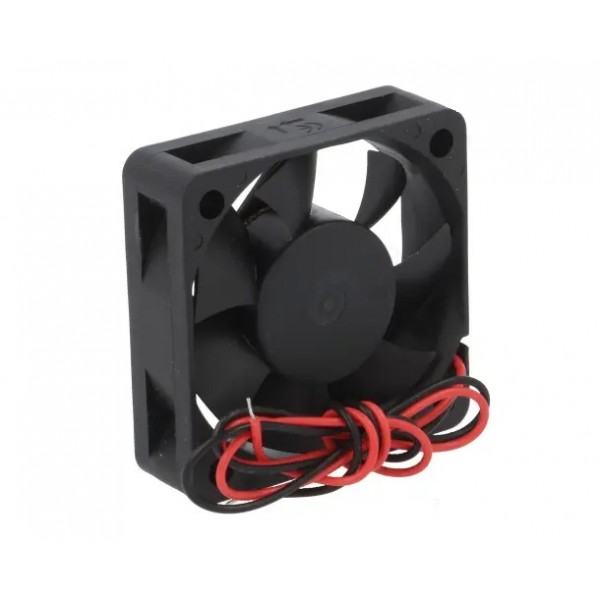

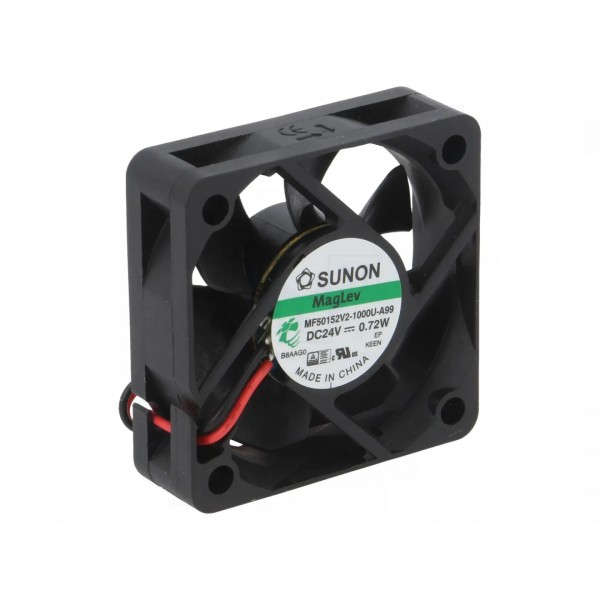

Sunon Fan 50x50x15mm - 24V

Sunon Fan 50x50x15mm - 24V
Sunon Fan 50x50x15mm - 24V
Sunon Fan 50x50x15mm - 24V
Sunon Fan 50x50x15mm - 24V
Sunon Fan 50x50x15mm - 24V
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003008
€4.50
Ex Tax: €3.72

Sunon fan with loose wires to cool your project.

For more information see the datasheet under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Sunon Fan 50x50x15mm - 24V

This product has 0 review(s) in total.

Specifications

General
Brand Sunon
Manufacturer model/SKU MF50152V2-A99
Norm conformity RoHS
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 70
Lifespan [h] 70000
(See datasheet for exact specification)
Features Fan
General physical appearance
Main color Black
Weight [g] 33
Dimension X [mm] 50
Dimension Y [mm] 50
Dimension Z [mm] 15
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 4.3
General electrical properties
Minimum supply voltage [V DC] 8
Maximum supply voltage [V DC] 27
Indication average current consumption [mA] 27
Actuator
Actuator type Brushless DC motor
Maximum speed [RPM] 5000
(±15%)
(@24V)
Fan
Air flow [m³/h] 22.0
Orientation Axial
Indication maximum noise production [dBA] 29.0
Bearing
Bearing type Sleeve (Vapo)
Connectors
Power supply connector(s) Loose wire
Wire/cable
Wire/cable length [m] 0.3
Package contents
Package contents 1x Fan
