Name: Sunon Fan 40x40x10mm - 12V - EE40101S2-999-A
SKU: 001831
Price: 3 EUR
Availability: InStock
Rating: 5 (1 reviews)

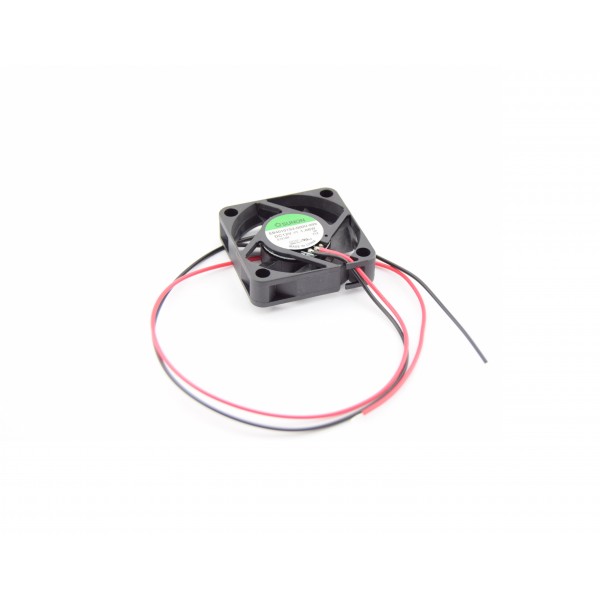

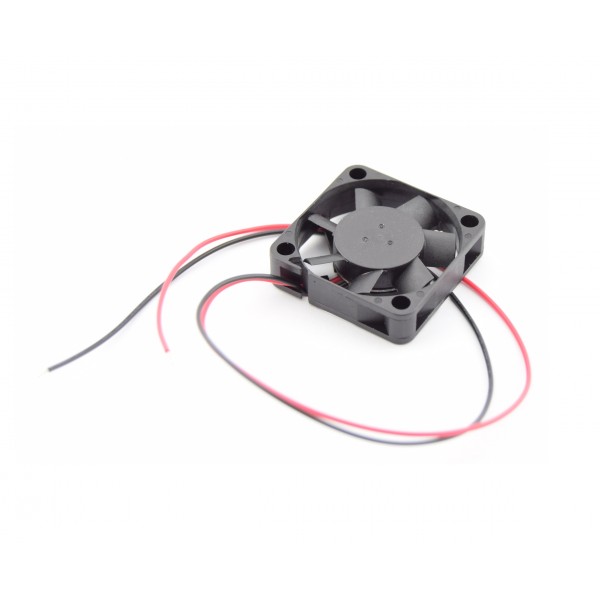

Sunon Fan 40x40x10mm - 12V

Based on 1 review(s) - Write a review

€3.00

Ex Tax: €2.48

10 or more €3.75

20 or more €3.50

50 or more €3.25

100 or more €3.00

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

Sunon fan with loose wires to cool your project.

For more information see the datasheet under the "Downloads" tab.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 1 review(s) in total.

Tags: Sunon Fan 40x40x10mm - 12V , EE40101S2-999-A , Fans

General
Brand	Sunon
Manufacturer model/SKU	EE40101S2-999-A
Norm conformity	RoHS
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	70
Lifespan [h]	35000 (See datasheet for exact specification)
Features	Fan
General physical appearance
Main color	Black
Weight [g]	18
Dimension X [mm]	40
Dimension Y [mm]	40
Dimension Z [mm]	10
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4.3
General electrical properties
Minimum supply voltage [V DC]	6
Maximum supply voltage [V DC]	13
Indication average current consumption [mA]	80
Actuator
Actuator type	Brushless DC motor
Maximum speed [RPM]	6100 (±15%) (@12V)
Fan
Air flow [m³/h]	12.0
Orientation	Axial
Indication maximum noise production [dBA]	23.0
Bearing
Bearing type	Sleeve
Connectors
Power supply connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	0.3
Package contents
Package contents	1x Fan
