Small Fan for Raspberry Pi Enclosure

Availability: Directly available from warehouse in Eindhoven
SKU: 000955

Based on 1 review(s) - Write a review

€2.50

Ex Tax: €2.07

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

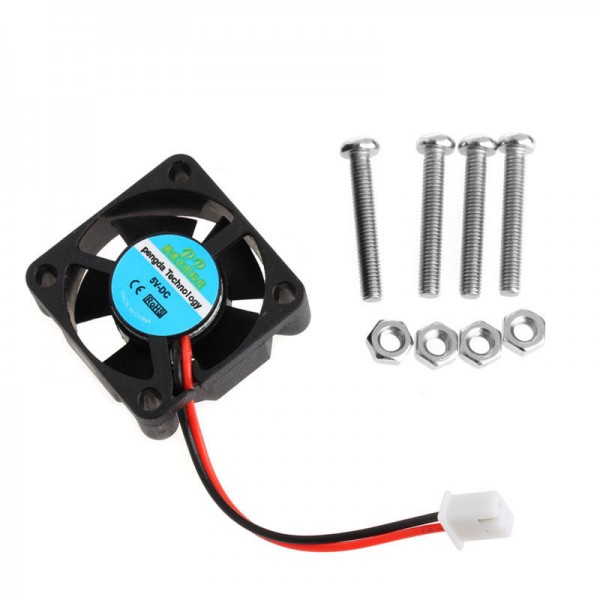

This fan is specially made for the Raspberry Pi Housing with option for fan. Extra bolts and nuts are supplied with the fan if you want to place them in a different environment. The 5V of the Raspberry Pi is on pin 4 (+, red wire) and pin 6 (-, black wire).

Note: The included bolts may be too long for the space which in the fan is mounted. So make sure that the bolts do not cause a short circuit.

Please login or register to review

Reviews Over Small Fan for Raspberry Pi Enclosure

Average Rating:

This product has 1 review(s) in total.

Tags: Small Fan for Raspberry Pi Enclosure , RPIFAN3X3 , Fans

Specifications

General
Brand	No brand
Features	Fan
General physical appearance
Main color	Black
Weight [g]	15
Dimension X [mm]	30
Dimension Y [mm]	30
Dimension Z [mm]	11
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Indication average current consumption [mA]	200
Actuator
Actuator type	Brushless DC motor
Fan
Orientation	Axial
Indication maximum noise production [dBA]	18.0
Bearing
Bearing type	Sleeve
Connectors
Power supply connector(s)	JST-XH (compatible) female
Wire/cable
Wire/cable length [m]	0.05
Package contents
Package contents	1x Fan 4x M3x20 Bolt 4x M3 Nut
