Electromagnet 2.5kg - 12V DC - JF-XP2015
- Availability: Directly available from warehouse in Eindhoven
- SKU: 003791
€5.00
Ex Tax: €4.13
Your shopping cart is empty!

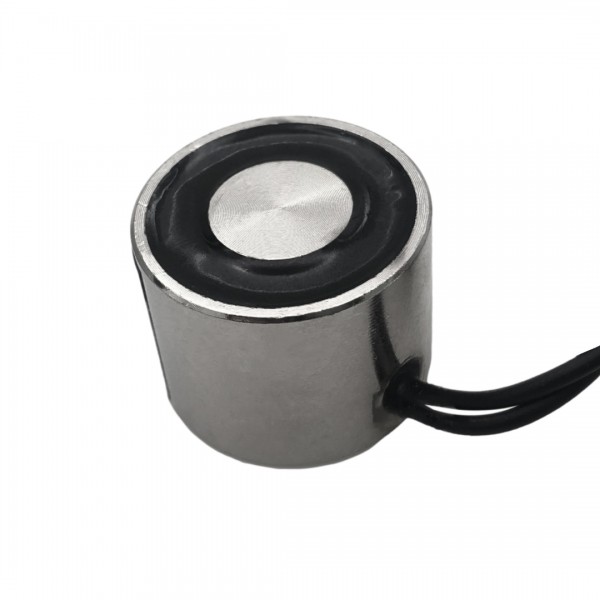

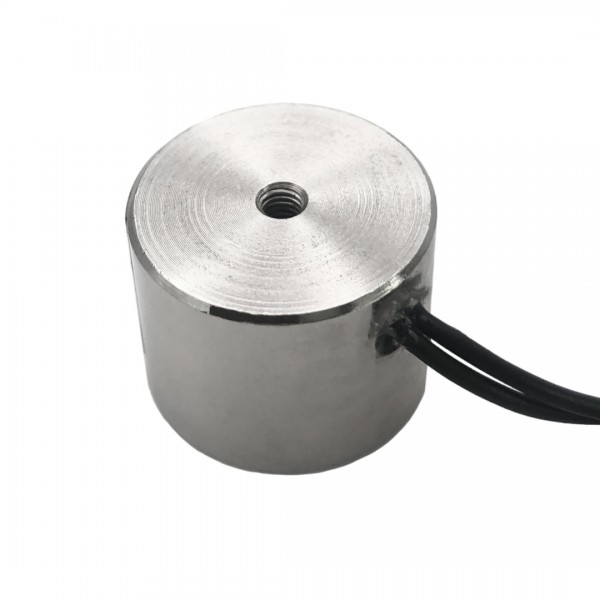

An electromagnet that you can use, for example, to make a lock. This electromagnet is very simple to use, you simply offer a voltage (see specifications) and the electromagnet turns on, the polarity does not matter. As soon as the voltage is removed again, the electromagnet loses its magnetism. We do recommend using a flyback diode as the magnet works on the basis of a coil. There is a mounting hole on the back of the magnet with which it can be attached.
See the following page for an example project using a similar electromagnet: Box with rfid-reader and electro magnetic lock.
*Note: The maximum holding force can only be achieved when the magnet exerts its force perpendicular to a flat material (iron), with nothing in between. If this is not the case, for example due to a curved surface or coating, the force will be (much) lower than indicated in the specifications.
| General | |
| Brand | JIFA |
| Model revision | JF-XP2015 |
| Minimum operating temperature [°C] | -5 |
| Maximum operating temperature [°C] | 40 |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 28 |
| Dimension X [mm] | 20 |
| Dimension Y [mm] | 20 |
| Dimension Z [mm] | 15 |
| Mounting options | Screw thread |
| Thread size | M3 |
| Thread length [mm] | 12 |
| General electrical properties | |
| Minimum supply voltage [V DC] | 12 |
| Maximum supply voltage [V DC] | 12 |
| Indication average current consumption [mA] | 150 |
| Magnet | |
| Magnet type | Electromagnet |
| Shape | Disc |
| Maximum holding force (on iron) [kg] | 2.5 |
| Wire/cable | |
| Wire/cable length [m] | 0.2 |
| Package contents | |
| Package contents | 1x Electromagnet |
