M5Stack Tab5 with Battery - ESP32-P4
- Availability: Discontinued
- SKU: 007466
€75.50
Ex Tax: €62.40

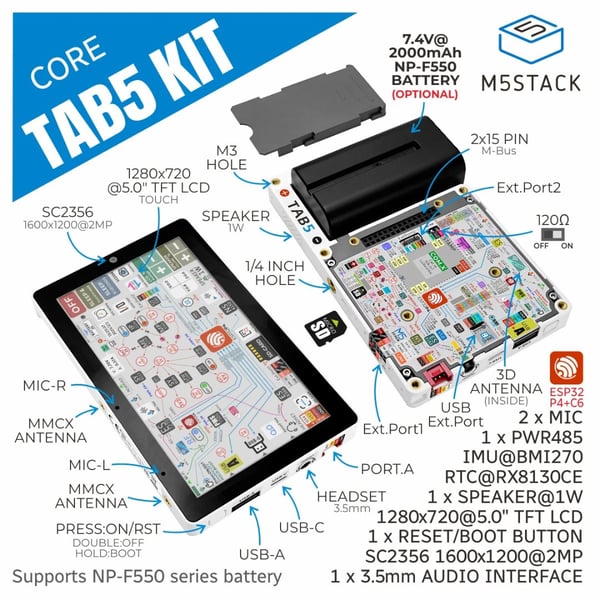

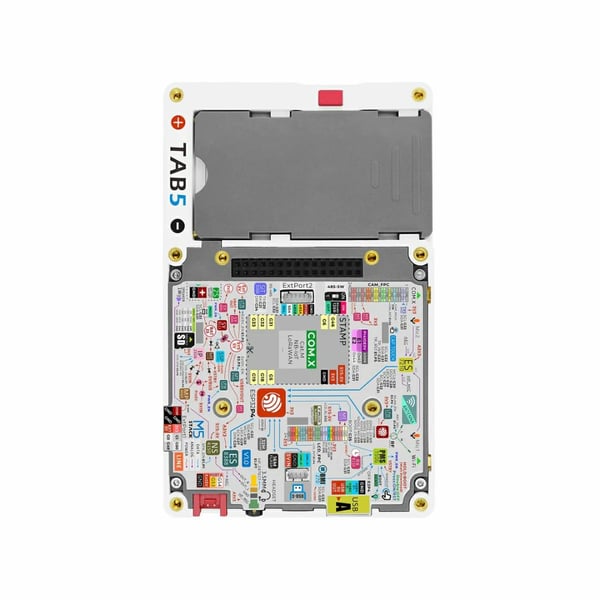

A development board from M5Stack based on a ESP32-P4 microcontroller by Espressif with multiple sensors. Thanks to the built-in USB connector, it is easy to program. The board includes a SC2356 camera that can be used to take photos and/or videos. Things can be shown on the built-in IPS display and with the touchscreen, an extensive user interface can be created. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a rechargeable Li-ion battery, which allows it to be used even when there's no power nearby.
See the following page for more information: Wiki
Report this review.
Tags:
M5Stack Tab5 with Battery - ESP32-P4
, 007466
, M5Stack
, K145
, RTC
, Camera
, Display
, Battery
, Gyroscope
, Microphone
, Touchscreen
, Current sensor
, Battery charger
, Battery holder
, Speaker/buzzer
, Audio amplifier
, SD-card adapter
, Acceleration sensor
, Microcontroller (MCU)
, Battery protection circuit
, ADC
, I2C
, I2S
, PWM
, SPI
, GPIO
, UART
, RS485
, USB CDC
, Comparator
, Native USB
, Wi-Fi
, Thread
, Zigbee
, Bluetooth
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | K145 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | RTC Camera Battery Display Gyroscope Microphone Touchscreen Battery holder Current sensor Speaker/buzzer Audio amplifier Battery charger SD-card adapter Acceleration sensor Microcontroller (MCU) Battery protection circuit |
| General physical appearance | |
| Main color | White |
| Weight [g] | 225 (including battery) |
| Dimension X [mm] | 128 |
| Dimension Y [mm] | 80 |
| Dimension Z [mm] | 27 (including battery) |
| Mounting options | Screw thread |
| Thread size | M3 1/4" |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (via USB-C) |
| Maximum supply voltage [V DC] | 5 (via USB-C) |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-P4 |
| Maximum clock frequency [MHz] | 360 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 800 (L2MEM + LP SRAM) |
| PSRAM [MB] | 32 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART RS485 USB CDC Comparator Native USB |
| Available GPIO pins | 0, 1, 2, 3, 4, 5, 6, 7, 16, 17, 18, 19, 31, 32, 35, 37, 38, 45, 47, 48, 49, 50, 51, 52, 53, 54 |
| Number of IO-pins | 26 |
| Maximum available hardware PWM channels | 20 |
| Maximum available analog input pins (ADC) | 10 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 8 |
| Maximum available hardware I2C interfaces | 6 |
| Maximum available hardware SPI interfaces | 3 |
| USB to serial converter | CH9102F |
| RS485 chip | SIT3088E |
| Number of RS485 channels | 1 |
| RS485 120Ω termination resistor | Adjustable (switch) |
| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | Wi-Fi Thread Zigbee Bluetooth |
| Wi-Fi chip/SoC | ESP32-C6 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-C6 |
| Bluetooth version | 5.3 |
| Supported Bluetooth standard(s) | LE |
| Zigbee chip/SoC | ESP32-C6 |
| Zigbee frequency [GHz] | 2.4 |
| Thread chip/SoC | ESP32-C6 |
| Display | |
| Type | IPS |
| Driver | ILI9881C |
| Screen diagonal [inch] | 5 |
| Number of pixels long side | 1280 |
| Number of pixels short side | 720 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Touchscreen | |
| Touchscreen controller | GT911 |
| Touch type | Capacitive |
| Multi-touch support | Yes |
| Scanner/camera | |
| Type | Camera |
| Sensor(chip) | SC2356 |
| Number of pixels long side | 1600 |
| Number of pixels short side | 1200 |
| Current sensor | |
| Sensor (chip) | INA226 |
| Number of channels | 1 |
| Suitable current | DC |
| Measuring method | Shunt |
| Shunt resistance [mΩ] | 5 |
| Maximum resolution [bit] | 16 |
| Acceleration sensor | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| Sound sensor | |
| Sensor (chip(s)) | ES7210 ES8388 |
| Type | Microphone |
| RTC | |
| RTC chip | RX8130CE |
| Back-up battery/capacitor | Yes |
| Audio amplifier | |
| Amplifier chip | NS4150B |
| Number of (normal) channels | 1 |
| Maximum power per (normal) channel [W] | 1.7 (@8Ω) |
| Speaker | |
| Speaker type | Standard |
| Impedance [Ω] | 8 |
| Maximum nominal (RMS) power [W] | 1 |
| Battery circuit | |
| Battery charger chip/SoC | IP2326 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 8.23 |
| Protection circuit | Yes |
| Safety features | Overcurrent Overvoltage Undervoltage Short circuit |
| Battery | |
| Chemistry | Li-ion |
| Rechargeable | Yes |
| Typical capacity [mAh] | 2000 |
| Minimum cell voltage [V] | 5.5 |
| Nominal cell voltage [V] | 7.2 |
| Maximum cell voltage [V] | 8.4 |
| Battery holder | |
| Suitable battery form factor | NP-F550 |
| Suitable number of batteries | 1 |
| Connectors | |
| Power supply connector(s) | USB-C female |

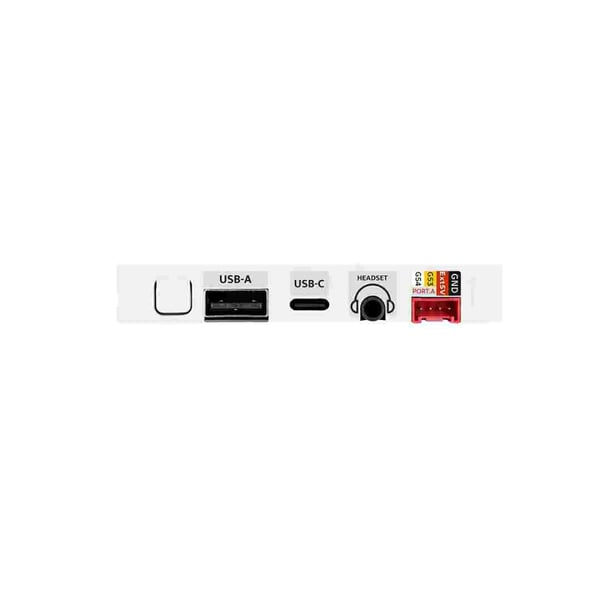

| IO-connector(s) | USB-A female USB-B female HY2.0 (Grove) male Pin header female (2.54mm) Molex Picoblade (compatible) male |
| Speaker connector(s) | Audio jack 3.5mm female (for headset) |
| Wi-Fi/Bluetooth antenna connector | MMCX female Built-in antenna |
| Zigbee/Thread antenna connector | MMCX female Built-in antenna |
| Package contents | |
| Package contents | 1x Tab5 1x Molex Picoblade compatible cable with loose wires 6p 1x NP-F550 2S 2000 mAh battery |
