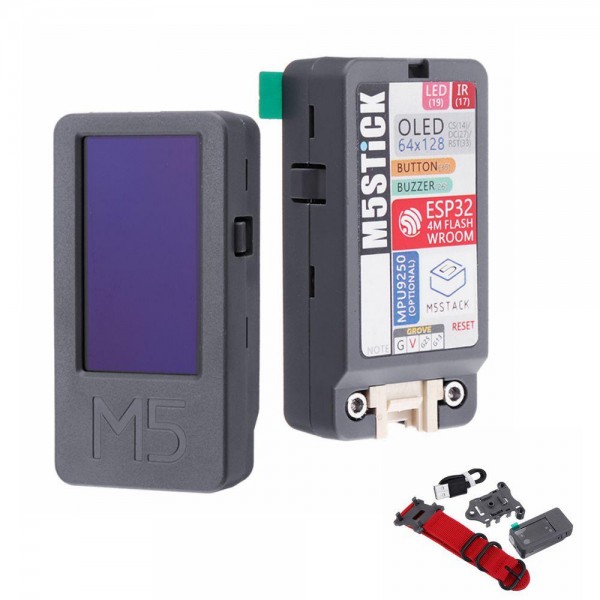

M5Stack M5Stick with MPU9250 Wearable - ESP32 Development Board

M5Stick with MPU9250 is a development board based on an ESP32 chipset. It has, among other things, a built-in screen, WiFi, Bluetooth and an 80 mAh battery.

The board has a USB-C connection with which it can be programmed and/or powered. The UIFlow, MicroPython and Arduino programming languages ​​are supported.

• ESP32 Chip: 240MHz dual core, 600 DMIPS, 520KB SRAM, 4MB flash
• Programming languages: UIFlow, MicroPython, Arduino
• Built-in Wi-Fi and Bluetooth
• Input voltage: 5VDC
• Input interface: USB-C, GROVE (I2C+I/0+UART)
• Buttons: 1 button and 1 reset
• Screen: 1.3 inch, 64x128 OLED
• Battery *: 80mAh at 3.7V
• Built-in buzzer
• Built-in IR transmitter
• Built-in 9-axis IMU: MPU9250
• Built-in red LED
• Size: 48 x 24 x 14 mm
• Housing: Gray plastic

* Note : The battery can be completely empty upon delivery, before the board works it must perhaps first be partially charged.

* Note:   The band color may differ from the color on the image

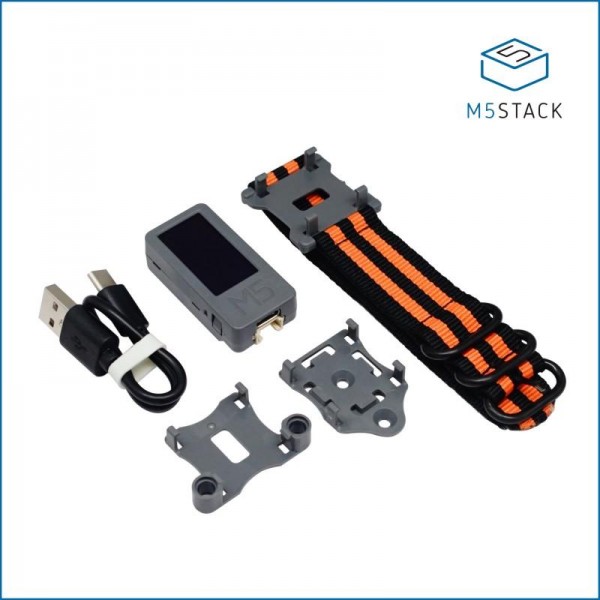

Package Contents:

• 1x M5Stick
• 1x Band
• 1x Wall mount
• 1x USB-C kabel

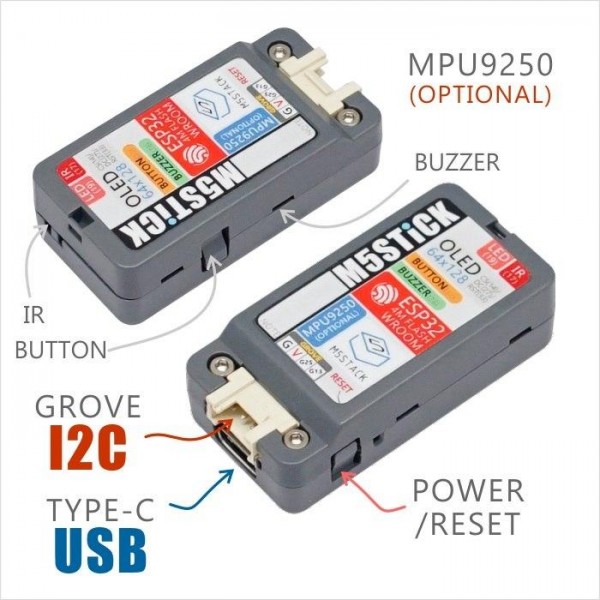

See the images and the page below for the pin layout.

For more information and to start the board see: M5Stick
