M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers

M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
Discontinued
M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers
  • Availability: Discontinued
  • SKU: 005622
Based on 0 review(s) - Write a review
€10.00
Ex Tax: €8.26
Add to Cart
Add to wishlist

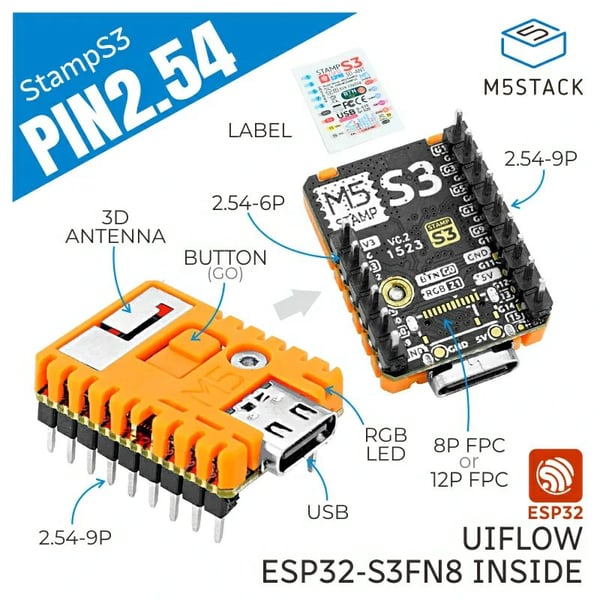

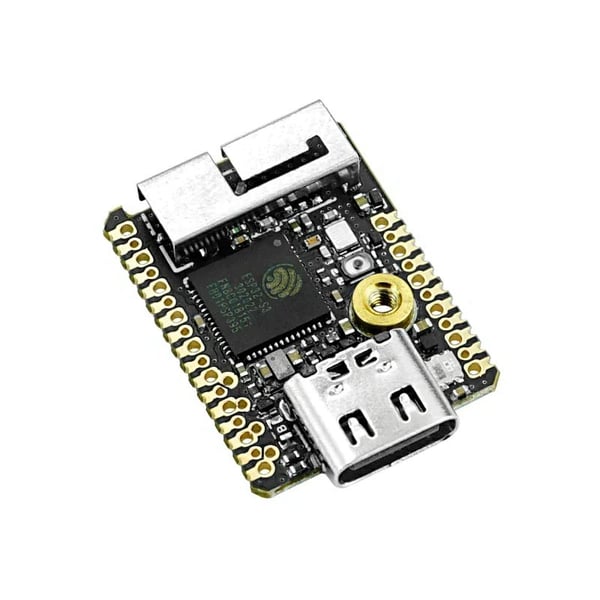

A development board from M5Stack based on a ESP32-S3 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth).

See the following page for more information: Wiki

Please login or register to review
Tags: M5Stack M5StampS3 PIN2.54 - ESP32-S3 Development Board - with 2.54mm headers , 005622 , M5Stack , S007-PIN254 , Enclosure , Digital LED(s) , Microcontroller (MCU) , Programmable button(s) , Native USB , UART , USB CDC , ADC , I2C , I2S , PWM , SPI , GPIO , Bluetooth , Wi-Fi

Specifications

General
Brand M5Stack
Manufacturer model/SKU S007-PIN254
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
Digital LED(s)
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Orange
Weight [g] 4
Dimension X [mm] 24
Dimension Y [mm] 18
Mounting options Pin headers
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 0
Flash memory [MB] 8
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Native USB

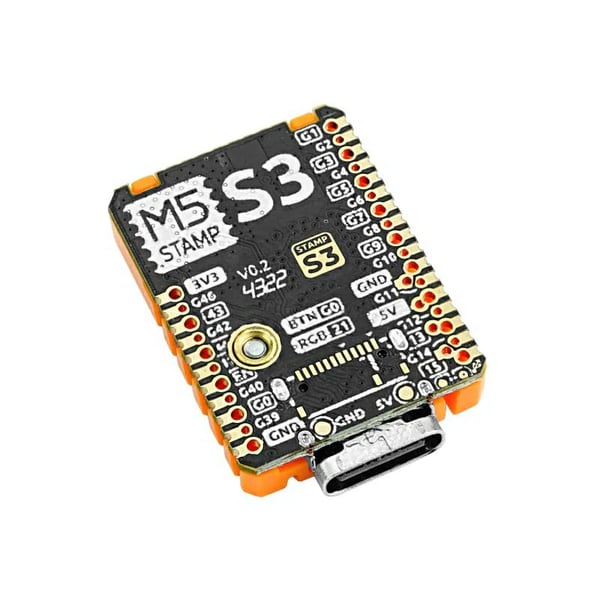

Available GPIO pins 0, 1, 3, 5, 7, 9, 13, 15, 43, 44
Number of IO-pins 10
(only 2.54mm pins)
Maximum available hardware PWM channels 10
Maximum available analog input pins (ADC) 7
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter Integrated into microcontroller
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
Light source
Type LED
LED (driver) chip WS2812B
Light color RGB
Connectors
Power supply connector(s) USB-C female
Solder pad(s)
Pin header male (2.54mm)
IO-connector(s) USB-C female
Solder pad(s)
Pin header male (2.54mm)
Through hole solder pin(s) (1.27mm)
Wi-Fi/Bluetooth antenna connector Built-in antenna
Package contents
Package contents 1x M5StampS3 with 2.54mm headers
