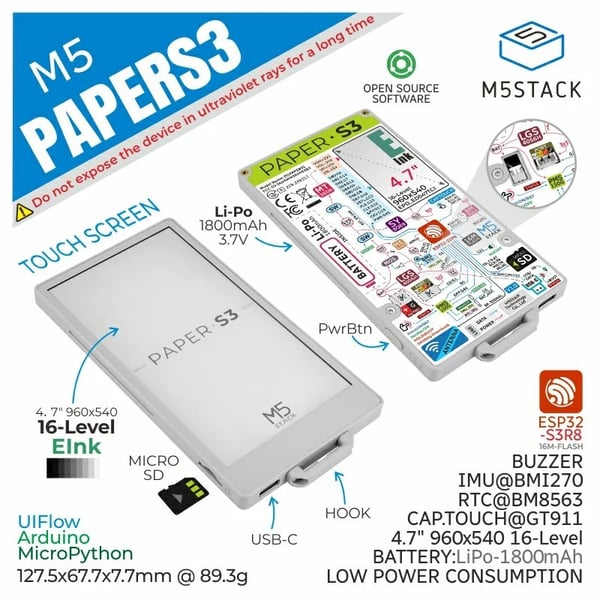

M5Stack M5PaperS3 with 4.7 inch E-paper E-ink Display and Touchscreen - ESP32-S3
- Availability: Discontinued
- SKU: 006763
€56.75
Ex Tax: €46.90
A development board from M5Stack based on a ESP32-S3 microcontroller by Espressif with multiple sensors. Things can be shown on the built-in E-paper display and with the touchscreen, an extensive user interface can be created. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a rechargeable Li-Po battery, which allows it to be used even when there's no power nearby.
Note: Do not use a USB QC or USB PD charger to power the M5PaperS3. Timing issues can cause excessive voltage to be applied to the USB port, damaging the M5PaperS3.
See the following page for more information: Wiki
Reviews Over M5Stack M5PaperS3 with 4.7 inch E-paper E-ink Display and Touchscreen - ESP32-S3
This product has 0 review(s) in total.
Report this review.
Tags:
M5Stack M5PaperS3 with 4.7 inch E-paper E-ink Display and Touchscreen - ESP32-S3
, 006763
, M5Stack
, C139
, Battery protection circuit
, Microcontroller (MCU)
, Acceleration sensor
, SD-card adapter
, Speaker/buzzer
, Battery charger
, Touchscreen
, Gyroscope
, Battery
, Display
, RTC
, Native USB
, USB CDC
, UART
, GPIO
, PWM
, I2S
, I2C
, ADC
, Bluetooth
, Wi-Fi
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | |
| Norm conformity | CE FCC RoHS |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | RTC Battery Display Gyroscope Touchscreen Speaker/buzzer Battery charger SD-card adapter Acceleration sensor Microcontroller (MCU) Battery protection circuit |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 93 |
| Dimension X [mm] | 122 |
| Dimension Y [mm] | 67 |
| Dimension Z [mm] | 7.7 |
| Mounting options | Magnets Screw thread |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 16 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM GPIO UART USB CDC Native USB |
| Number of IO-pins | 2 |
| Maximum available hardware PWM channels | 2 |
| Maximum available analog input pins (ADC) | 2 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 1 |
| Maximum available hardware I2C interfaces | 1 |
| Maximum available hardware SPI interfaces | 0 |
| USB to serial converter | Integrated into microcontroller |
| Supported SD card size | Micro SD |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Display | |
| Type | E-paper |
| Screen diagonal [inch] | 4.7 |
| Number of pixels long side | 960 |
| Number of pixels short side | 540 |
| Display shape | Rectangular |
| Pixel colors | Gray Black White |
| Partial display refresh | Yes |
| Touchscreen | |
| Touchscreen controller | GT911 |
| Touch type | Capacitive |
| Multi-touch support | Yes |
| Acceleration sensor | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| RTC | |
| RTC chip | BM8563 |
| Back-up battery/capacitor | None |
| Speaker | |
| Speaker type | Buzzer |
| Active/passive | Passive |
| Battery circuit | |
| Battery charger chip/SoC | LGS4056H |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Adjustable charging current | No |
| Protection circuit | Yes (in battery) |
| Safety features | Overcurrent Overvoltage Undervoltage Short circuit |
| Battery | |
| Chemistry | Li-Po |
| Rechargeable | Yes |
| Typical capacity [mAh] | 1800 |
| Nominal cell voltage [V] | 3.7 |
| Maximum cell voltage [V] | 4.2 |
| Connectors | |
| Power supply connector(s) | USB-C female |
| IO-connector(s) | Molex Picoblade (compatible) male |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Package contents | |
