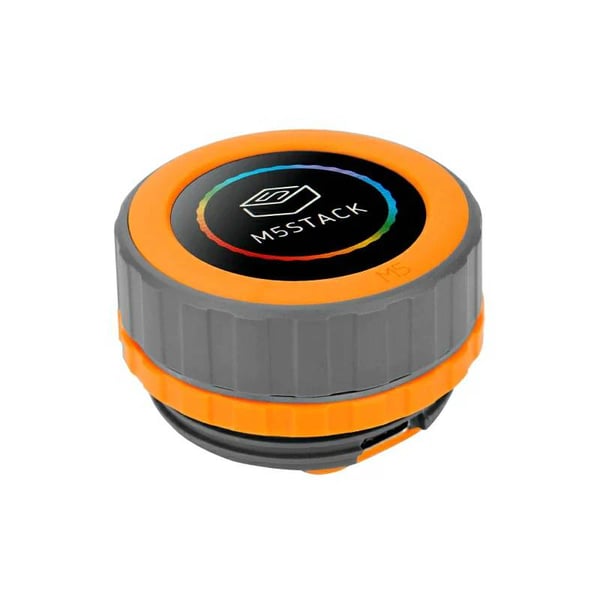

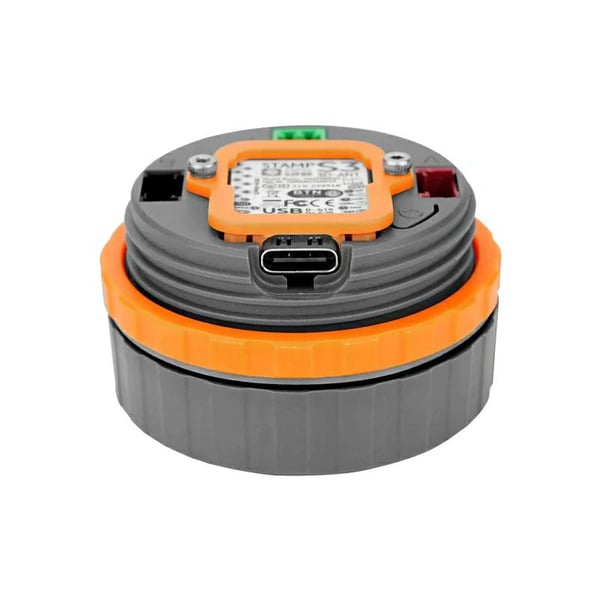

M5Stack M5Dial - ESP32-S3 Smart Rotary Knob with 1.28 inch Display and Touchscreen
- Availability: Discontinued
- SKU: 005704
€36.50
Ex Tax: €30.17
10 or more €36.00
20 or more €35.50
50 or more €35.00
100 or more €34.50

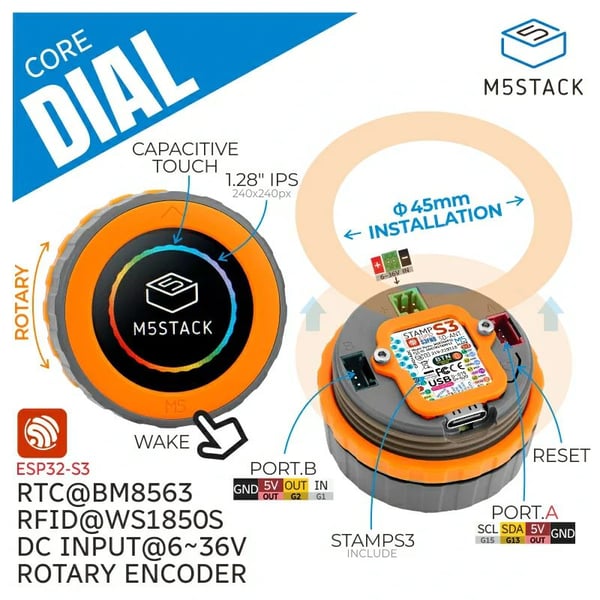

The M5Dial from M5Stack is a programmable smart panel powered by the M5StampS3. This compact panel has a built-in 1.28-inch TFT touchscreen display, a rotary encoder with push button, RFID reader and a buzzer. You can also connect additional modules/sensors to the two Grove connectors.

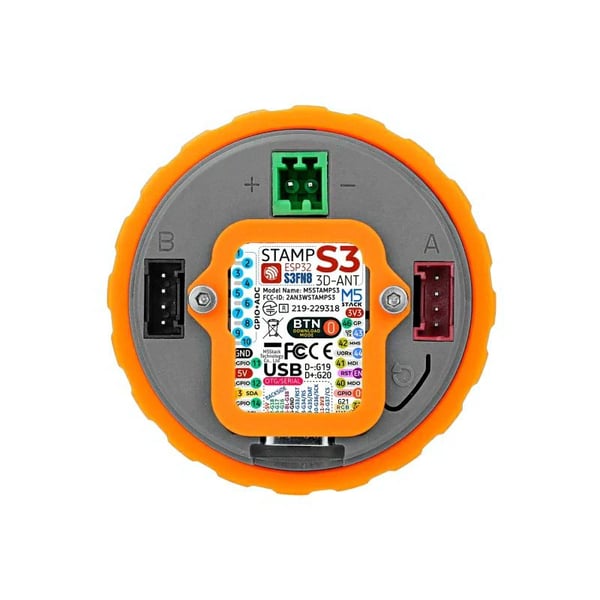

Note: The button to put the module in programming mode is hidden under the sticker on the back of the module.
See the following page for more information: Wiki
Reviews Over M5Stack M5Dial - ESP32-S3 Smart Rotary Knob with 1.28 inch Display and Touchscreen
This product has 1 review(s) in total.
Report this review.
Tags:
M5Stack M5Dial - ESP32-S3 Smart Rotary Knob with 1.28 inch Display and Touchscreen
, 005704
, M5Stack
, K130
, RTC
, Display
, Enclosure
, Touchscreen
, Battery charger
, Rotary encoder
, Speaker/buzzer
, Microcontroller (MCU)
, Programmable button(s)
, ADC
, I2C
, PWM
, SPI
, GPIO
, UART
, USB CDC
, Native USB
, RFID
, Wi-Fi
, Bluetooth
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | K130 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | RTC Display Enclosure Touchscreen Rotary encoder Speaker/buzzer Battery charger Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Orange |
| Weight [g] | 44 |
| Dimension X [mm] | 50 |
| Dimension Y [mm] | 50 |
| Dimension Z [mm] | 33 (including screws) |
| Mounting options | Screw thread |
| Maximum mounting thickness [mm] | 8.0 |
| Recommended mounting dimensions [mm] | ø45 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 (via USB-C) 6 (via screw terminal) |
| Maximum supply voltage [V DC] | 36 (via screw terminal) 5 (via USB-C) |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 8 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C PWM SPI GPIO UART USB CDC Native USB |
| Number of IO-pins | 4 |
| Maximum available hardware PWM channels | 4 |
| Maximum available analog input pins (ADC) | 4 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 2 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 1 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | RFID Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| RFID chip/SoC | WS1850S |
| Supported RFID protocols | Mifare Classic |
| RFID frequency [MHz] | 13.56 |
| RDIF read/write | Reading Writing |
| Display | |
| Type | IPS |
| Driver | GC9A01 |
| Screen diagonal [inch] | 1.28 |
| Number of pixels long side | 240 |
| Number of pixels short side | 240 |
| Display shape | Round |
| Pixel colors | RGB |
| Touchscreen | |
| Touchscreen controller | FT3267 |
| Touch type | Capacitive |
| Multi-touch support | Yes |
| Rotary encoder | |
| Encoder type | Incremental |
| Encoder technology | Mechanical |
| Number of detent positions | 16 |
| RTC | |
| RTC chip | BM8563 |
| Back-up battery/capacitor | None |
| Battery circuit | |
| Battery charger chip/SoC | TP4057 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 100 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female Detachable block male (EDG-2.54) |
| IO-connector(s) | USB-C female HY2.0 (Grove) male |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| RFID antenna connector | Built-in antenna |
| Enclosure | |
| Material | Plastic (unknown material) |
| Package contents | |
| Package contents | 1x M5Dial 1x Hex key 1x Screw terminal block |
