M5Stack M5Core Metal - ESP32 IoT Development Kit

M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
Discontinued
M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
M5Stack M5Core Metal - ESP32 IoT Development Kit
  • Availability: Discontinued
  • SKU: 005320
Based on 0 review(s) - Write a review
€33.50
Ex Tax: €27.69
Add to Cart
Add to wishlist

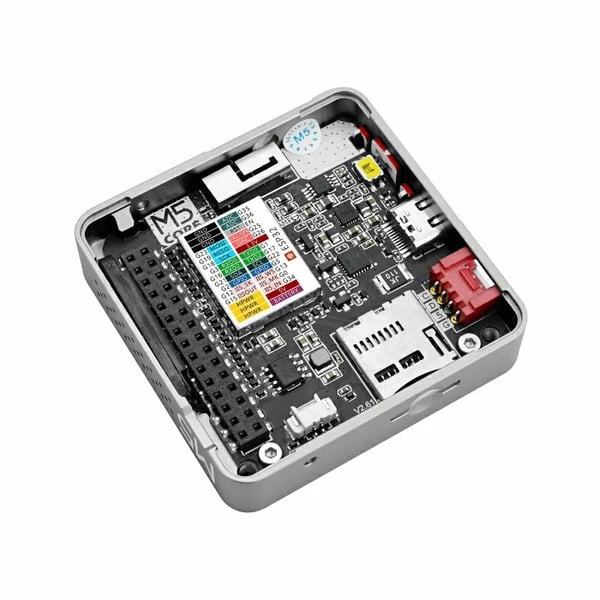

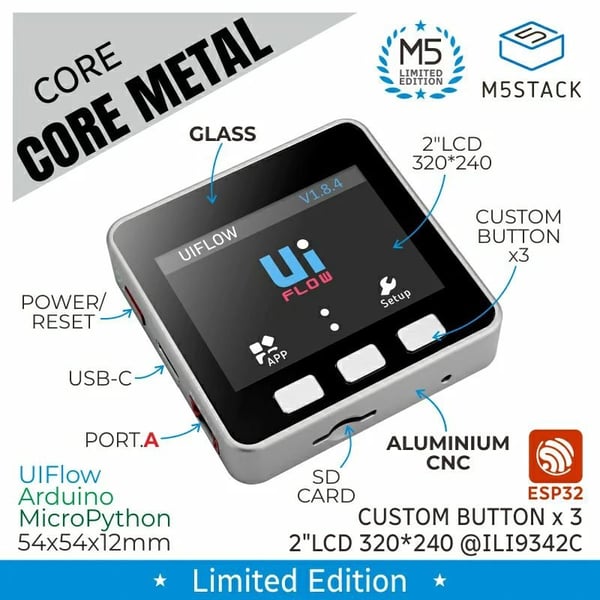

M5Stack Core is a development kit based on an ESP32 chipset. It has a built-in display, built-in Wi-Fi, and Bluetooth, among other things. This special version is made of metal instead of plastic.

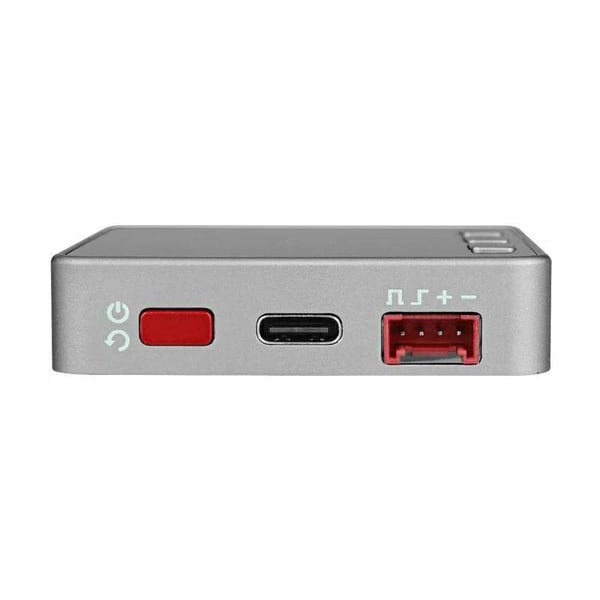

The board has a USB-C connector with which it can be programmed and/or powered. UIFlow, MicroPython and Arduino programming languages are supported.

Note: Because the enclosure is made of metal, the Wi-Fi/Bluetooth signal is weaker than with the normal M5Core.

Note: No M5Bottom is included.

Please login or register to review

Reviews Over M5Stack M5Core Metal - ESP32 IoT Development Kit

This product has 0 review(s) in total.

Tags: M5Stack M5Core Metal - ESP32 IoT Development Kit , 005320 , M5Stack , C001-CNC , Battery charger , Display , Microcontroller (MCU) , SD-card adapter , Audio amplifier , Enclosure , Speaker/buzzer , Programmable button(s) , I2C , I2S , SPI , UART , PWM , ADC , DAC , GPIO , USB CDC , Wi-Fi , Bluetooth

Specifications

General
Brand M5Stack
Manufacturer model/SKU
Model revision
Features Display
Enclosure
Speaker/buzzer
Audio amplifier
Battery charger
SD-card adapter
Microcontroller (MCU)
Programmable button(s)
General physical appearance
Main color Gray/silver
Weight [g] 37
Dimension X [mm] 54
Dimension Y [mm] 54
Dimension Z [mm] 18
Mounting options Screw thread
Form factor M5Stack Module
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 20
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 520
PSRAM [MB] 0
Flash memory [MB] 16
EEPROM type Emulated
Communication
Hardware interface(s) ADC
DAC
I2C
I2S
PWM
SPI
GPIO
UART
USB CDC
Number of IO-pins 15
Maximum available hardware PWM channels 13
Maximum available analog input pins (ADC) 5
Maximum available analog output pins (DAC) 2
Maximum available hardware UART interfaces 3
Maximum available hardware I2C interfaces 2
Maximum available hardware SPI interfaces 2
USB to serial converter CH9102F
Supported SD card size Micro SD
Wireless communication
Interface(s) Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32
Bluetooth version 4.2
Supported Bluetooth standard(s) LE
Classic
Display
Type IPS
Driver ILI9342C
Screen diagonal [inch] 2
Number of pixels long side 320
Number of pixels short side 240
Pixel colors RGB
Audio amplifier
Amplifier chip NS4150
Maximum power per (normal) channel [W] 1.0
Battery circuit
Battery charger chip/SoC IP5306
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 2100
Adjustable charging current Yes
Protection circuit No
Connectors
Power supply connector(s) USB-C female
Pin header female (2.54mm)
IO-connector(s) USB-C female
HY2.0 (Grove) male
Pin header female (2.54mm)
Battery connector(s) Pin header female (2.54mm)
Molex Picoblade (compatible) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material Aluminum
Package contents
Package contents
