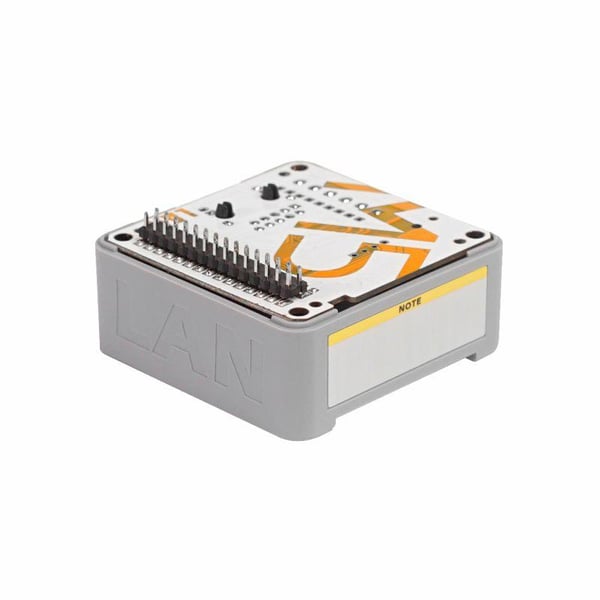

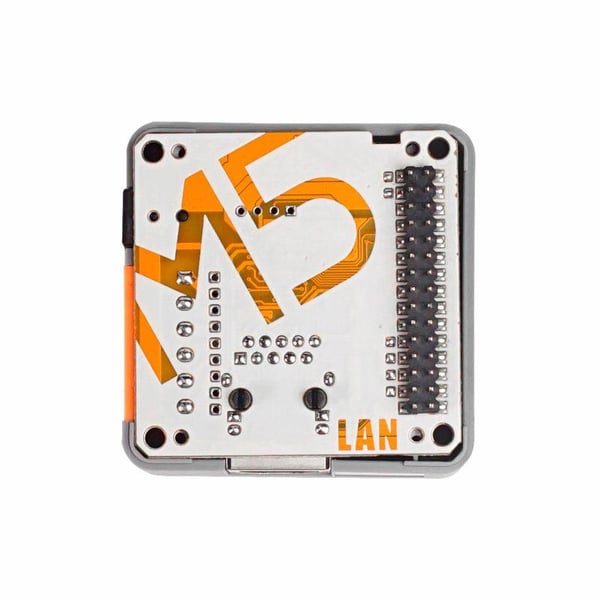

M5Stack LAN W5500 Base with PoE - for M5Core

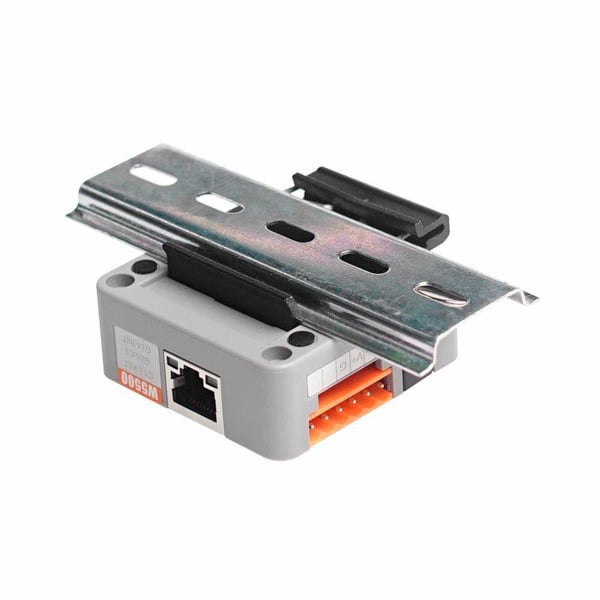

The M5Stack LAN W5500 Module with PoE offers the possibility to provide an M5Core with an ethernet connection via a W5500 chip. This provides the Core with internet where there is no Wi-Fi signal, for example in a closed cabinet. In addition, a TTL to RS485 and a TTL to RS232 adapter board are included for even more connectivity. The module can be professionally mounted on a wall or DIN rail with the supplied mounting material. It is also possible to power the module via Ethernet by the PoE (Power Ooer Ethernet) functionality.

Specifications:

• W5500 Ethernet chip
  • RJ45 Connection for a standard Ethernet plug
• DC-Jack input voltage: 9-24V DC
• Input voltage PoE: 802.3AF/AT

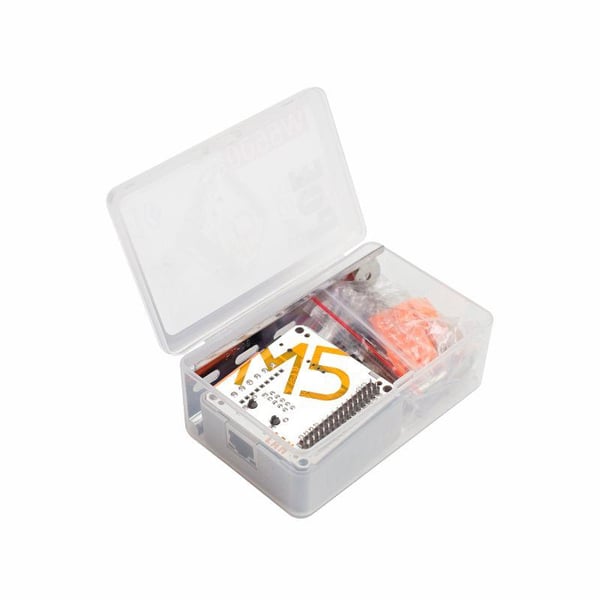

Package Contents:

• 1x M5Stack LAN W5500 Module with PoE

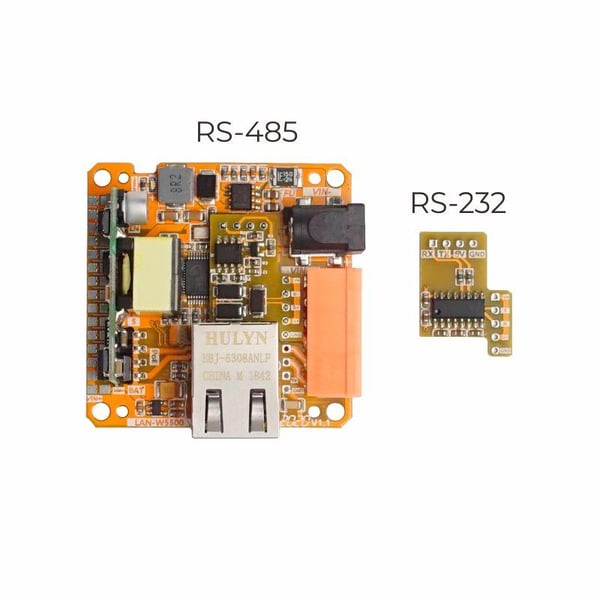

• 1x TTL to RS485 adapter board
• 1x TTL to RS232 adapter board
• 1x Male header 20 pins
• 1x DIN rail and clip
• 1x Magnet for mounting
• 3x HT3.96 terminal (2x 3 pins, 1x 4 pins)
• 10x Crimp plug
• 3x Inbus (1.5mm, 2mm & 2.5mm)
• 2x Allen head bolt M3x28
• 4x Allen head screw KA2x4
• 1x Countersunk Allen head bolt M3x8
• 1x Sticker sheet

For more information, see the following page: M5Stack LAN Module with PoE.

Note : To make use of the PoE functionality of this device you need a switch that supports PoE or a PoE injector.
