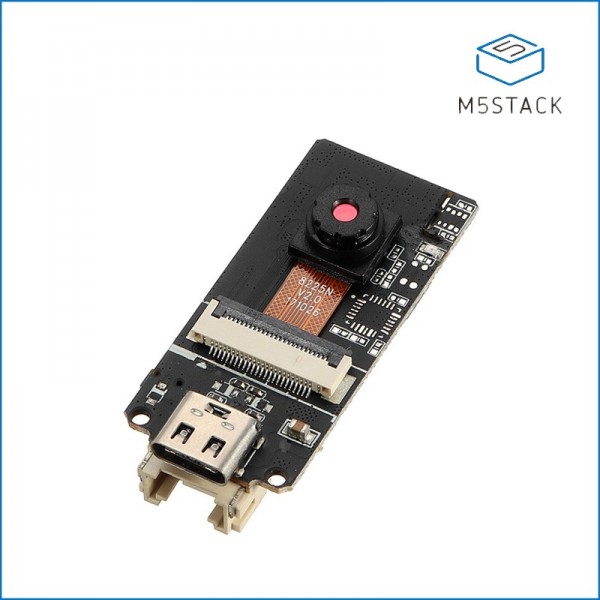

M5Stack ESP32 Camera Module

This is a camera module based on an ESP32 and OV2640 chipset. The module has built-in Wi-Fi and Bluetooth. The board can be powered and programmed via the USB-C connection.

Specifications:

• ESP32 Chip: 240MHz dual core, 512KB SRAM, 4MB flash
• Built-in Wi-Fi and Bluetooth
• OV2640 Camera sensor
• Field of view: 65 degrees
• Maximum image transfer rate:
  • UXGA/SXGA: 15fps
  • SVGA: 30fps
  • CIF: 60fps
• Input/output interface: USB-C, GROVE (I2C+I/0+UART)
• Built-in Li-ion charge and discharge circuit
• Size: 20.5 x 46.5 x 11.5 mm

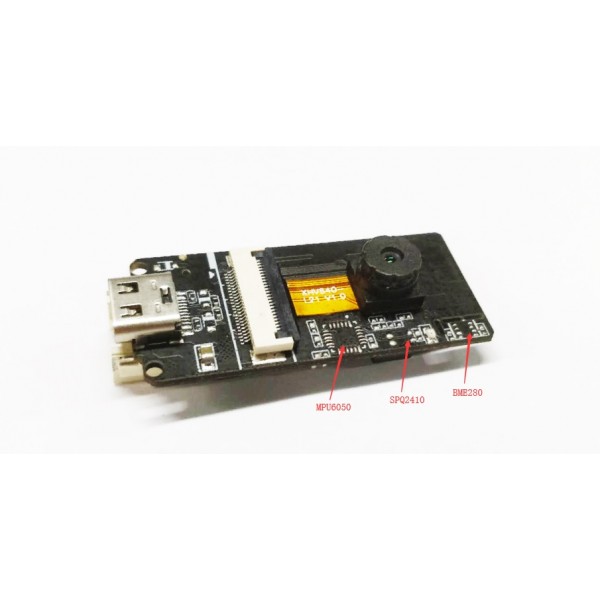

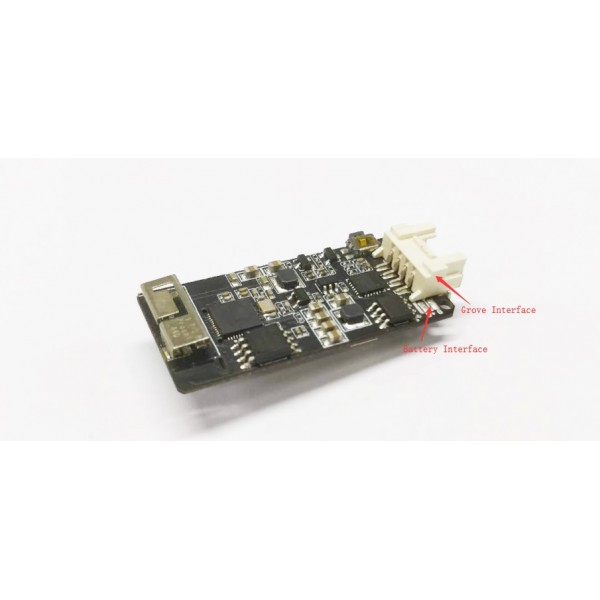

The module offers the option of soldering additional components (see images), including:

• 9-axis Gyroscope (MPU6050)
• Pressure sensor (BME280)
• Analog MIC (SPQ2410)
• Battery socket

Note: These components are not included with the module!

Package contents:

• 1x M5 Camera Module
• 1x Small heatsink

See the following page for more information and to get started with the camera module: ESP32Cam/M5Camera Quick Start
