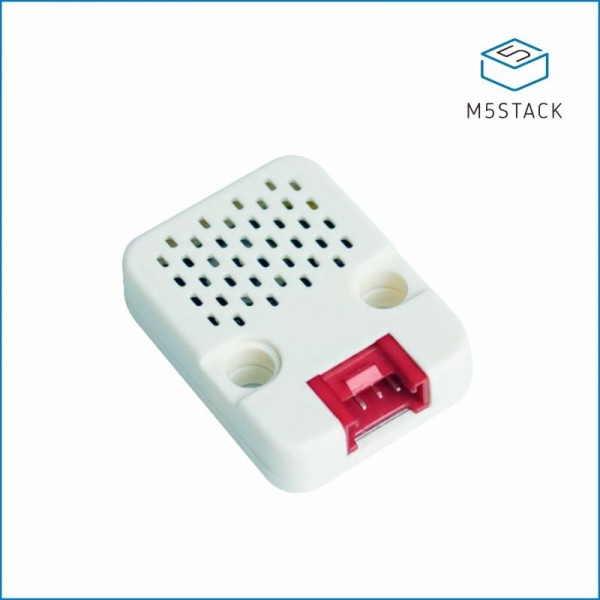

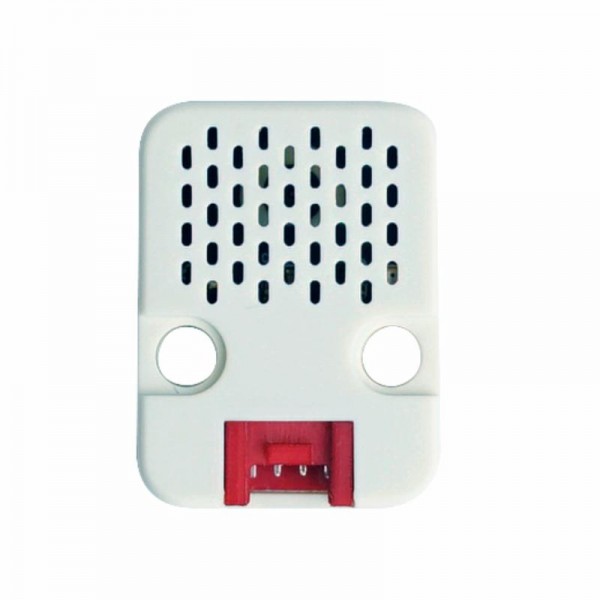

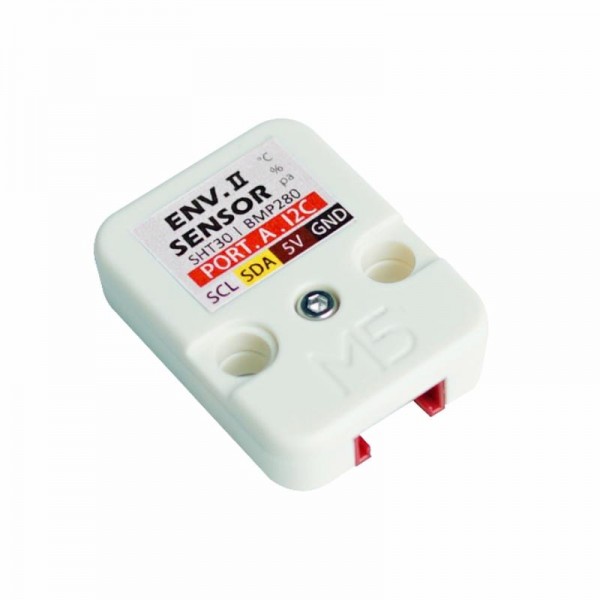

M5Stack ENV II Unit

The ENV II Unit is an upgrade of the ENV Unit. This module has a temperature, humidity and air pressure sensor with a Grove connection for M5Stack. The module works via I2C communication.

The difference between the ENV II Unit and the ENV Unit is that the new one uses the SHT30 instead of the DHT12 humidity sensor

Specifications:

• Pressure (and temperature) sensor: BMP280
• Temperature and humidity sensor: SHT30

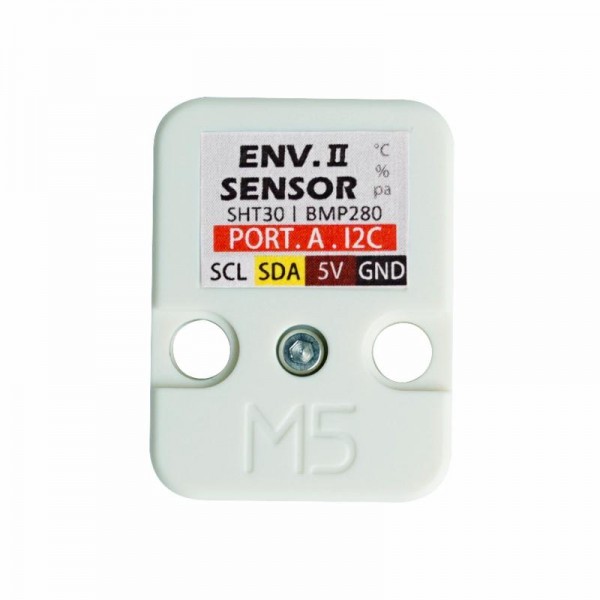

• I2C address BMP280: 0x76
• I2C address SHT30: 0x44
• Temperature measuring range: -40~120°C
• Air pressure measurement range:  300~1100hPa
• Humidity measuring range: 10~90% RH
• 2x LEGO^® compatible mounting holes
• 1x Grove connection (1x Grove cable included)
• Dimensions: 24.2 x 32.2 x 8.1mm

Package contents:

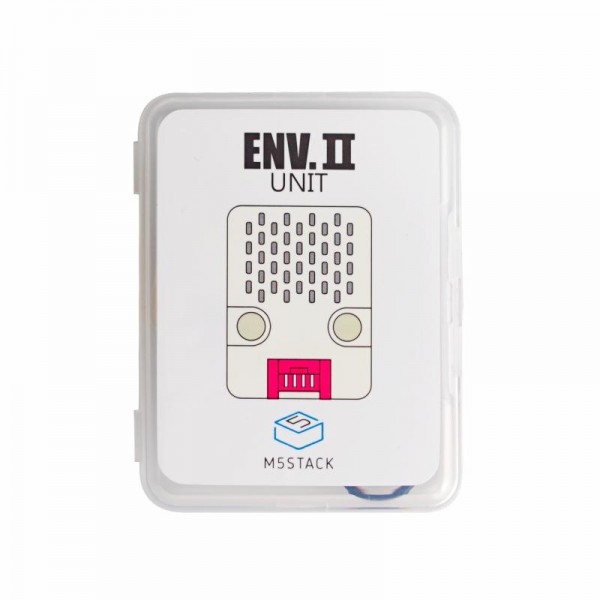

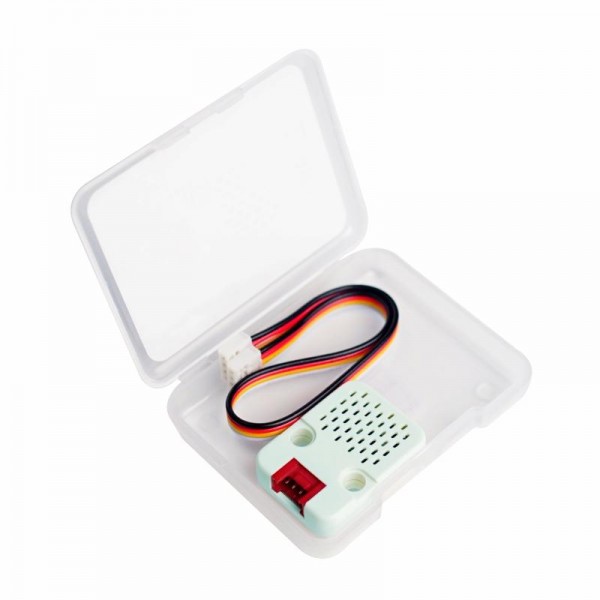

• 1x M5Stack ENV II Unit
• 1x Grove cable

For more information, see the following page: M5Stack ENV II Unit.
