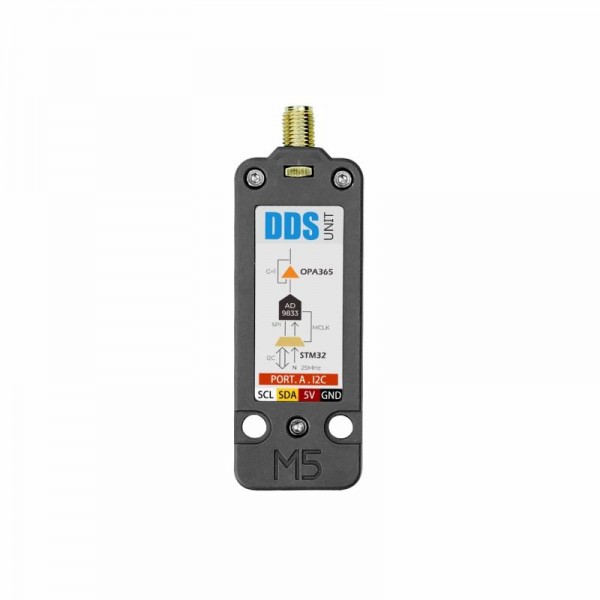

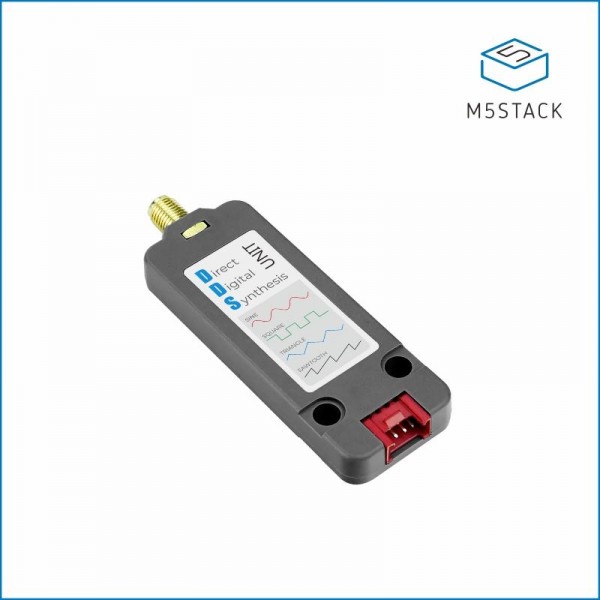

M5Stack DDS Unit - Signal Generator Module - AD9833

This is a DDS (Direct Digital Synthesizer) signal generator module with a Grove connection from M5Stack. This unit uses the AD9833 chip with which a certain desired signal can be generated.

Specifications:

• Chip: AD9833
• Signal output amplitude: 0-0.6V
• Supported signal shapes: Sine, triangle, square and sawtooth wave
• Frequency range: 0-1MHz
• Frequency resolution: 28bit
• Phase resolution: 11bit
• Communication: I2C
  • I2C address: 0x31
• 2x LEGO^® compatible Holes
• 1x Grove connection
• Dimensions: 71 x 24 x 8mm

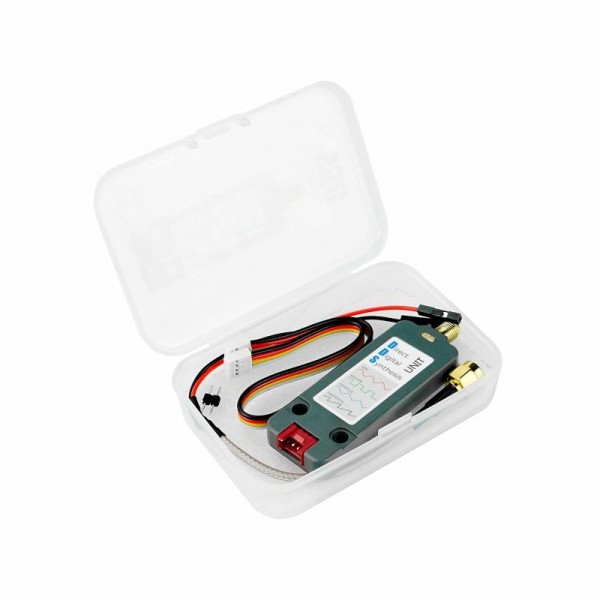

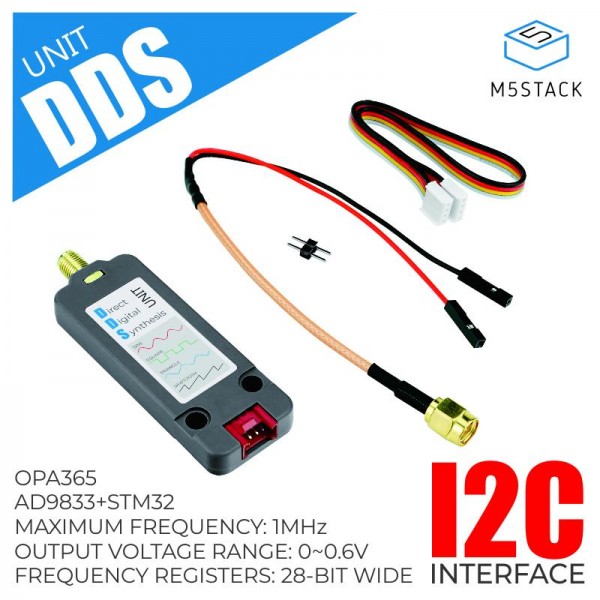

Package contents:

• 1x M5Stack DDS Unit
• 1x Grove cable (~20cm)
• 1x SMA to 2p DuPont cable (~20cm)
• 1x 2p Male header

See the following page for more information: M5Stack DDS Unit.
