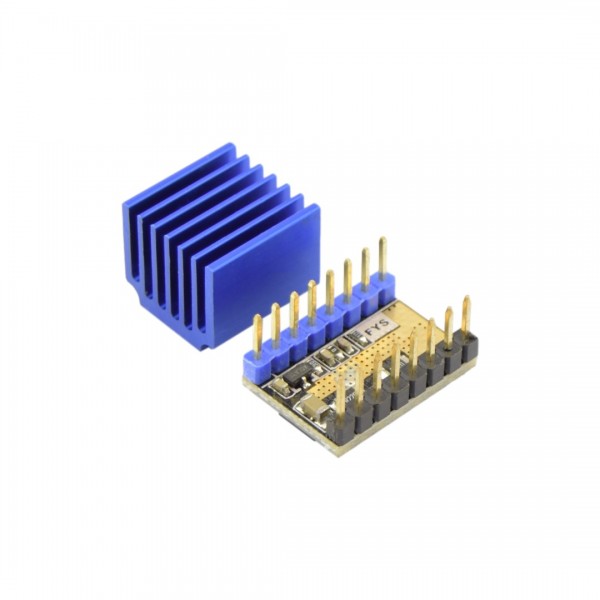

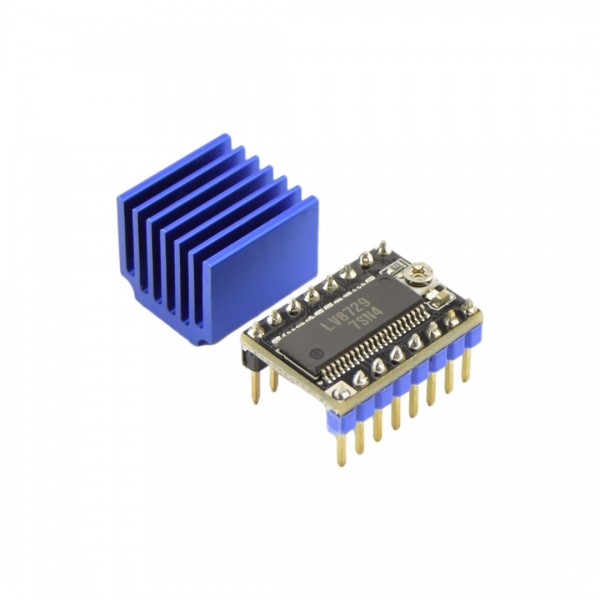

LV8729 Motor Driver Module

This stepper motor driver module can be used separately or in combination with a CNC shield or 3D printer.

This is a quieter variant for the standard A4988 module.

Specifications:

• Voltage range (VM): 6-36V
• Voltage range (VIO): 3.3-5V
• Maximum current: 0.8A per phase (continuous, with cooling), 1.5A peak per phase
• Works with 3.3V and 5V signals
• Current limit that can be set with the potentiometer
• Supports up to 1/128-step
• Has technology for quieter stepper motors in 1/64 and 1/128-step configuration
• Has technology for smoother movements
• Built-in protection for high temperatures, high currents, low voltage (UVLO) and short-circuit
• Comes with a heatsink for better cooling

See the datasheet under "Downloads" for more information.
