LilyGO TTGO T-Wristband - ESP32 - 80mAh

The TTGO T-Wristband from LilyGO is a smartwatch based on an ESP32 with a built-in IMU, touch button and 0.96 inch IPS display. With the included programming module based on a CP2104 or CH340C USB to serial converter it is possible to program the watch.

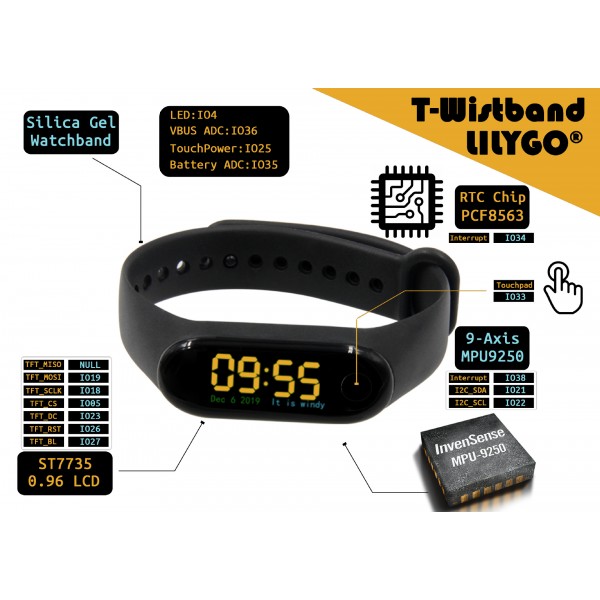

Specifications:

• Chipset: ESP32 PICO D4  (240MHz dual core processor)
  • Flash memory: 4MB
  • SRAM: 520KB
  • Built-in Wi-Fi
  • Built-in Bluetooth
• Built-in IMU Sensor: MPU9250 or LSM9DS1
• Built-in RTC: PCF8563
• Built-in touch button
• Built-in 0.96 inch 160x80 IPS display (ST7735)
• Built-in 80mAh Li-Po battery
• Built-in Li-ion/Li-Po battery charging circuit: TP4054 chip can charge up to 500mA

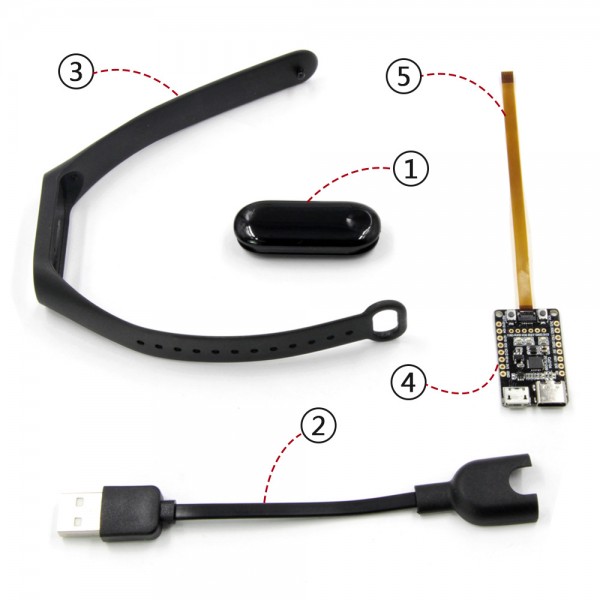

Package contents:

• 1x TTGO T-Wristband
• 1x Programming module

For more information and to get started with the board, see the following page: T-Wristband
