LilyGO TTGO T-Beam - LoRa 868MHz - NEO-6M GPS - ESP32

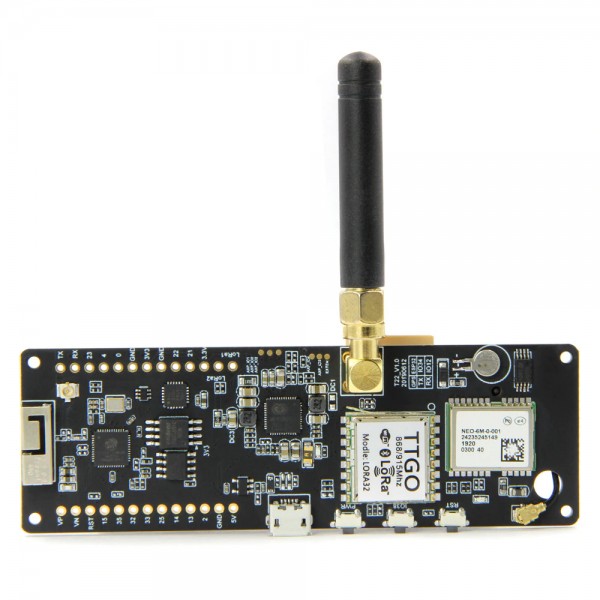

The TTGO T-Beam from LilyGO is a microcontroller based on an ESP32 including a built-in SX1276 LoRa chip and a NEO-6M GPS module. The USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered (micro USB cable not included) .

Specifications:

• Supply voltage: 3.3V DC or 5V DC
• GPIO Voltage: 3.3V*
• ESP32-DOWD-Q6 chip  (240MHz dual core processor)
  • SRAM: 520KB
  • PSRAM: 4MB
  • Flash memory: 4MB
  • Built-in Wi-Fi
  • Built-in Bluetooth
• USB to serial converter: CP2102 or CH9102F (drivers)
• SX1276 LoRa chip
• LoRa frequency: 868MHz
• NEO-6M GPS Chip
• Built-in Li-ion/Li-Po battery charging circuit: AXP192 chip can charge up to 1.4A
• Built-in push button (IO38)
• Built-in on/off button

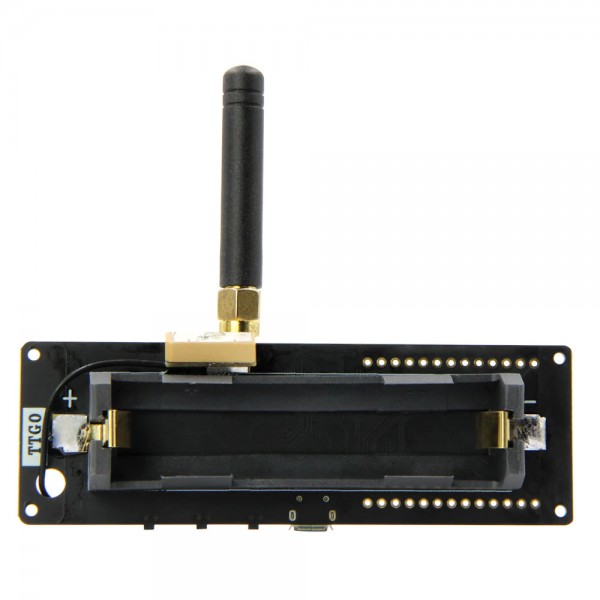

• Built-in 18650 battery holder (battery not included)
• PCB dimensions: See images

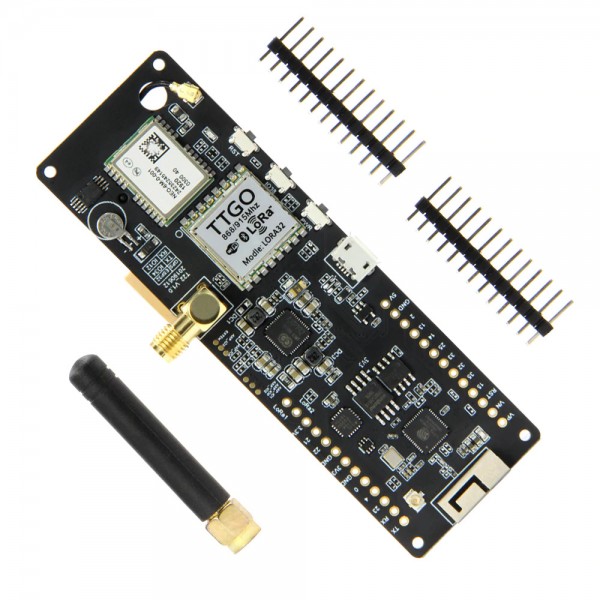

Package contents:

• 1x LilyGO TTGO T-Beam
• 1x LoRa SMA antenna 868MHz
• 1x GPS Antenna
• 1x Male header set

For more information and to get started with the board, see the following page: TTGO T- Beam.

The T-Beam can also be use with the SoftRF software: SoftRF ESP32

To program the board with the Arduino IDE select the 'ESP32 Dev Module' in the board manager.

*Note : The pins on the board are directly connected to the ESP32 chip and are therefore only suitable for 3.3V signals.
