Waveshare Multi-Feature 64x32 RGB LED Matrix
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004771
€45.00
Ex Tax: €37.19
Your shopping cart is empty!

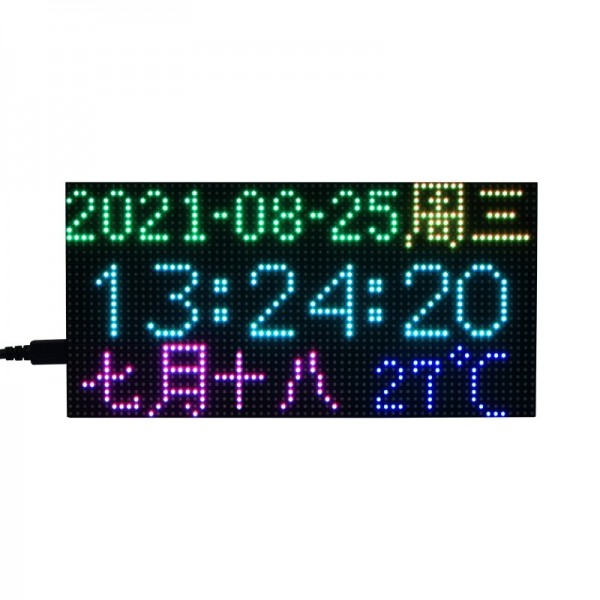

A LED matrix from Waveshare with various extra features and expansion options.
Note: No Raspberry Pi Pico is included.
See the following page for more information: Wiki
General | |
Brand | Waveshare |
Manufacturer model/SKU | 20591 |
Features | Display Light sensor RTC Speaker/buzzer |
General physical appearance | |
Main color | Black |

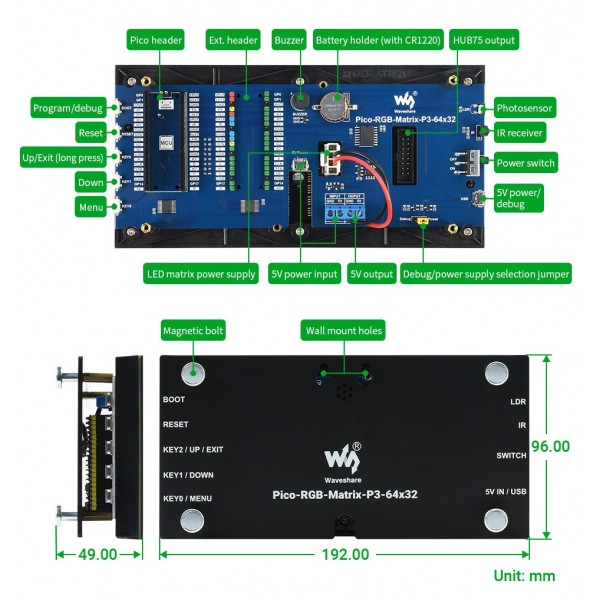

Dimension X [mm] | 192 |
Dimension Y [mm] | 96 |
Dimension Z [mm] | 49 (fully assembled) |
Mounting options | Mounting hole(s) |
Form factor | Module (general) Raspberry Pi Pico layout/shield Matrix |
General electrical properties | |
Minimum supply voltage [V DC] | 5 |
Maximum supply voltage [V DC] | 5 |
Minimum recommended supply current [A] | 2.5 |
Minimum IO-pin input voltage [V] | 3.3 |
Maximum IO-pin input voltage [V] | 3.3 |
IO-pin output voltage [V] | 3.3 |
Communication | |
Hardware interface(s) | I2C Analog Digital HUB75 |
Default I2C address | 0x68 (DS3231) |
Adjustable I2C address | No |
Wireless communication | |
Interface(s) | IR |
IR receiver/transmitter | Receiver |
Display | |
Type | LED Matrix |
Display width [mm] | 192 |
Display height [mm] | 32 |
Number of pixels long side | 64 |
Number of pixels short side | 32 |
Display shape | Rectangular |
Pixel colors | RGB |
Maximum viewing angle [°] | 160 |
Light sensor | |
Sensor (chip) | LDR |
Measurable light | Visible |
Light sensor type | Light intensity |
RTC | |
RTC chip | DS3231 |
Back-up battery/capacitor | Yes |
Connectors | |
Power supply connector(s) | Screw terminal Micro USB female |
IO-connector(s) | Pin header male (2.54mm) Pin header female (2.54mm) Micro USB female |
Package contents | |

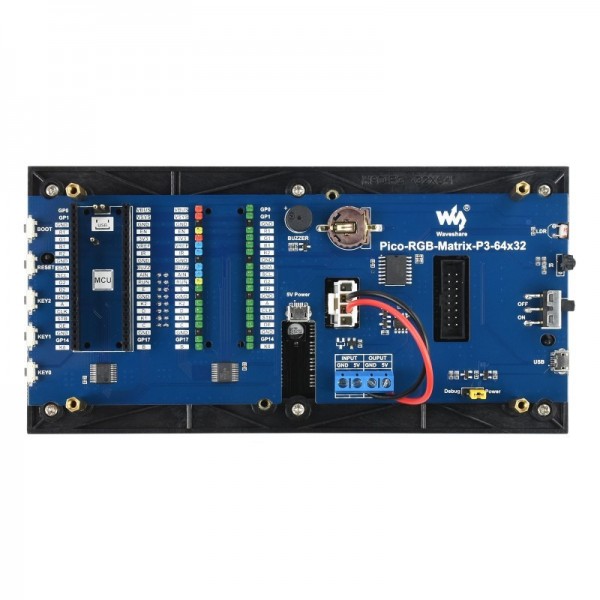

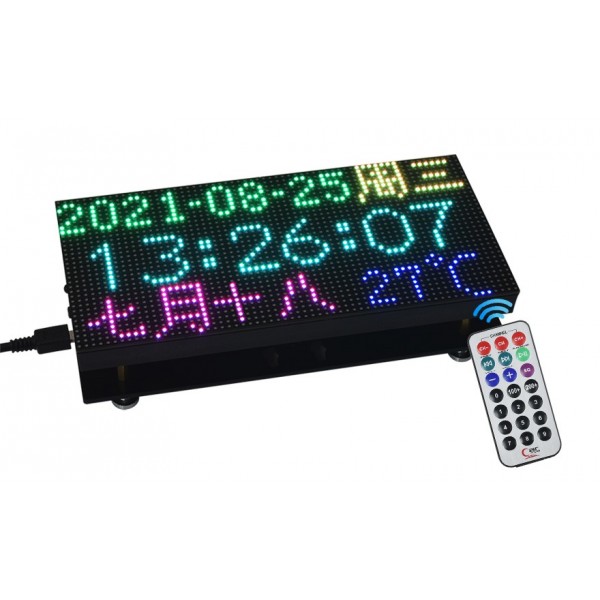

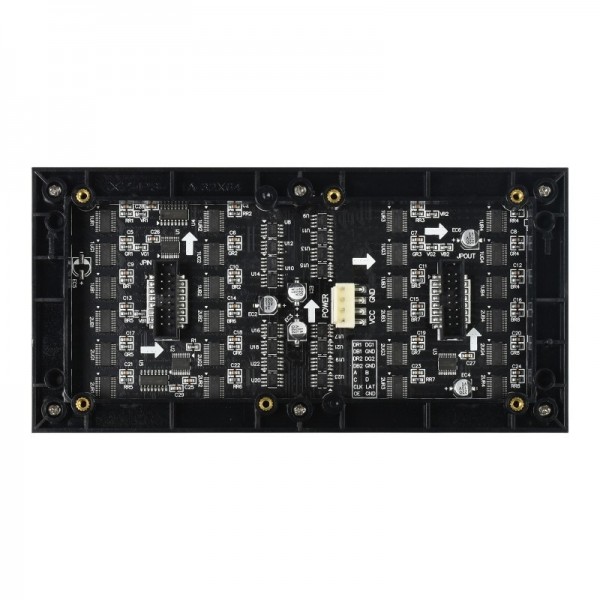

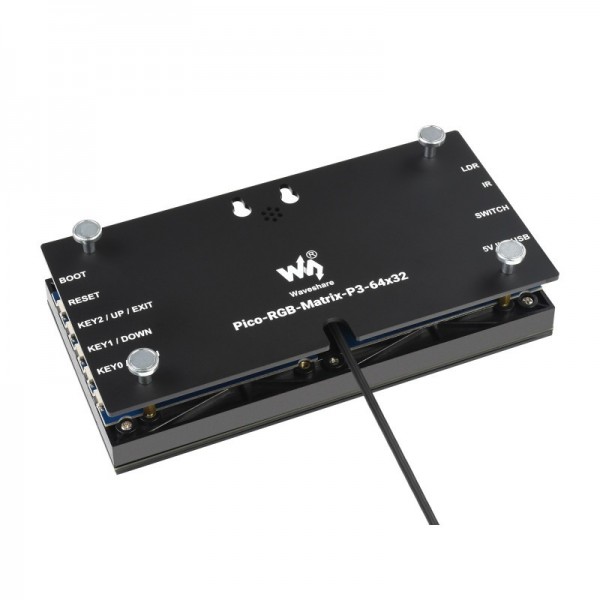

Package contents | 1x Pico-RGB-Matrix base board 1x LED matrix 1x Back panel 1x Front panel 1x HUB75 extension cable 1x Power cable 1x Female DC Jack terminal block 1x Remote Control 1x CR1220 battery for RTC 1x CR2030 battery for remote control 4x Spacer 4x Magnetic spacer 20x Double-sided tape piece |
