  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005028
€29.50
Ex Tax: €24.38

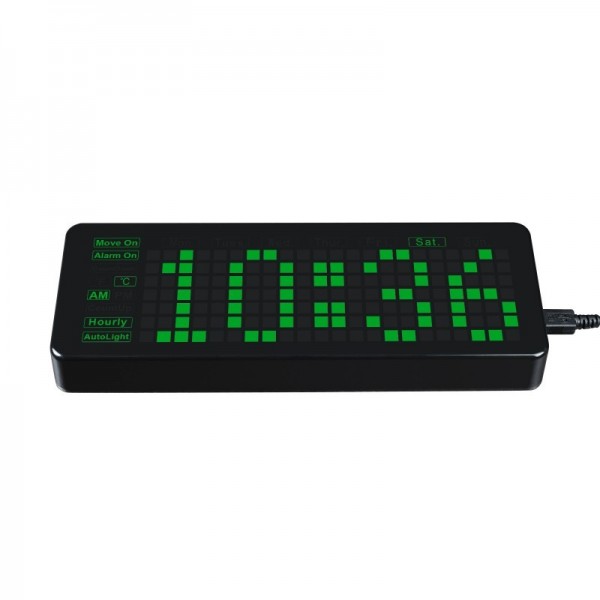

This electronic clock with LED digits from Waveshare is designed for the Raspberry Pi Pico (or other microcontroller with the same form factor).

Note: No Raspberry Pi Pico is included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare Electronic Clock - Green - for Raspberry Pi Pico

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 19695
Features Display
Battery holder
Temperature sensor
Light sensor
Enclosure
RTC
Speaker/buzzer
Programmable button(s)

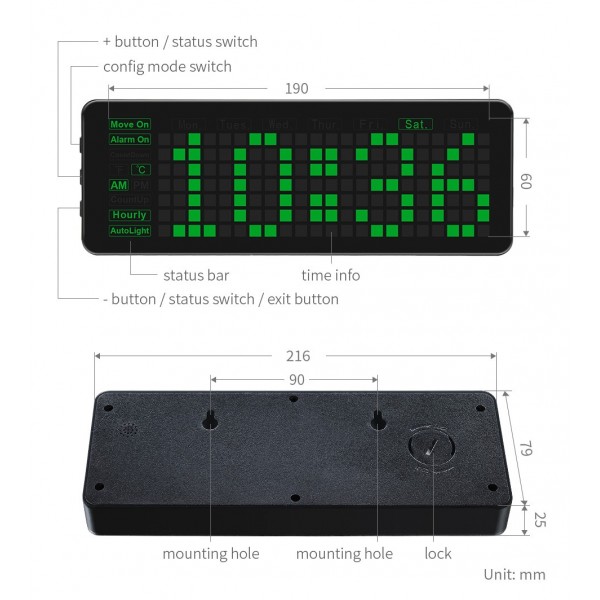

General physical appearance
Main color Black
Weight [g] 215
Dimension X [mm] 216
Dimension Y [mm] 79
Dimension Z [mm] 25
Mounting options Mounting hole(s)
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum recommended supply current [A] 1.0
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Digital

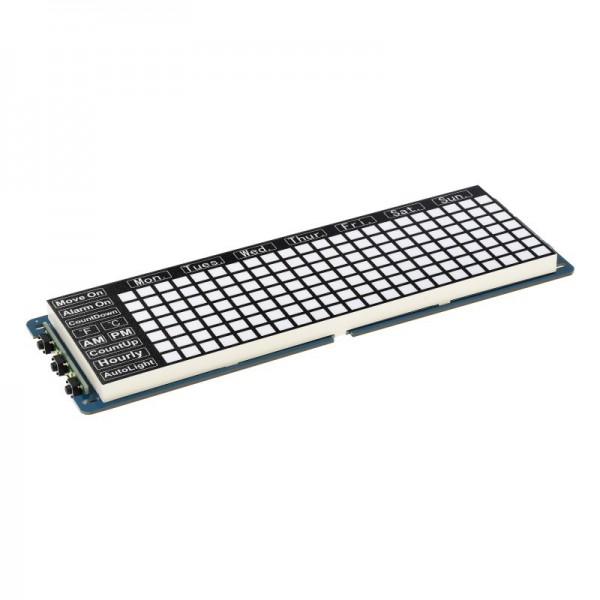

Display
Type LED Matrix
Display width [mm] 190
Display height [mm] 60
Number of pixels long side 22
Number of pixels short side 7
Display shape Rectangular
Pixel colors Green
Temperature sensor
Sensor (chip) DS3231
Minimum measuring range [°C] -40
Maximum measuring range [°C] 85
Smallest resolution [°C] 0.25
Maximum resolution [bit] 10
Accuracy [±°C] 3.0
Light sensor
Sensor (chip) LDR
Measurable light Visible
Light sensor type Light intensity
RTC
RTC chip DS3231
Back-up battery/capacitor Yes
Battery holder
Suitable battery form factor Button cell 2032
Button cell 2025
Suitable number of batteries 1
Connectors
Power supply connector(s) Micro USB female
IO-connector(s) Pin header female (2.54mm)
Micro USB female
Package contents
Package contents 1x Display module
1x Front of enclosure
1x Back of enclosure
1x Battery cover
1x Micro USB cable
1x 2032 button cell battery
6x Bolt
