  • Availability: On request
  • SKU: 004810
Based on 0 review(s) - Write a review
€14.50
Ex Tax: €11.98
Add to Cart
Add to wishlist

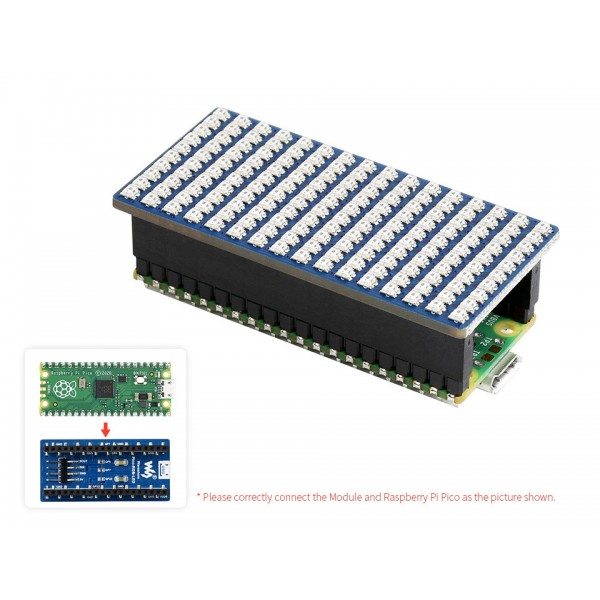

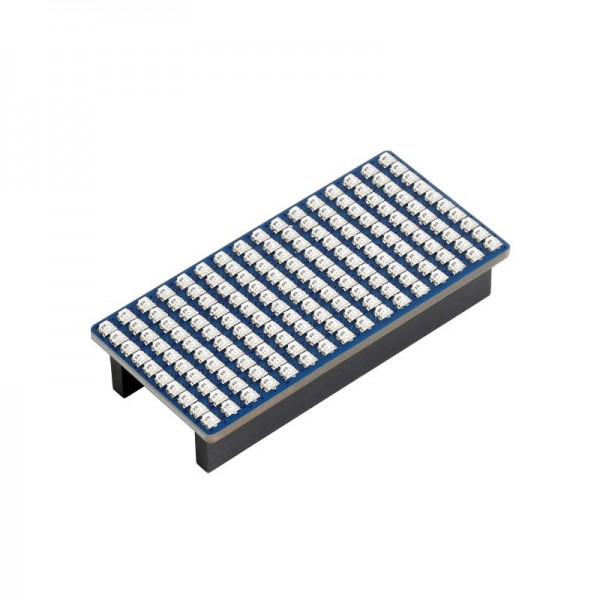

This RGB LED matrix module from Waveshare is made for the Raspberry Pi Pico or other microcontrollers that use the same pin layout. All LEDs are controlled with a single pin.

Note: No Raspberry Pi Pico is included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare 16x10 RGB LED Matrix Module - for Raspberry Pi Pico

This product has 0 review(s) in total.

Tags: Lighting , Matrix , Waveshare 16x10 RGB LED Matrix Module - for Raspberry Pi Pico , 004810 , Waveshare , 20170 , Digital LED(s) , Digital

Specifications

General
Brand Waveshare
Manufacturer model/SKU 20170
Features Digital LED(s)
General physical appearance
Main color Blue
Weight [g] 10
Dimension X [mm] 54
Dimension Y [mm] 26
Mounting options Pin headers
Form factor Matrix
Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum recommended supply current [A] 3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] 5
Communication
Hardware interface(s) Digital
Light source
Type LED
Light color RGB
Number of LEDs 160
Maximum current per LED [mA] 16
Connectors
Power supply connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Package contents
Package contents 1x Pico-RGB-LED
