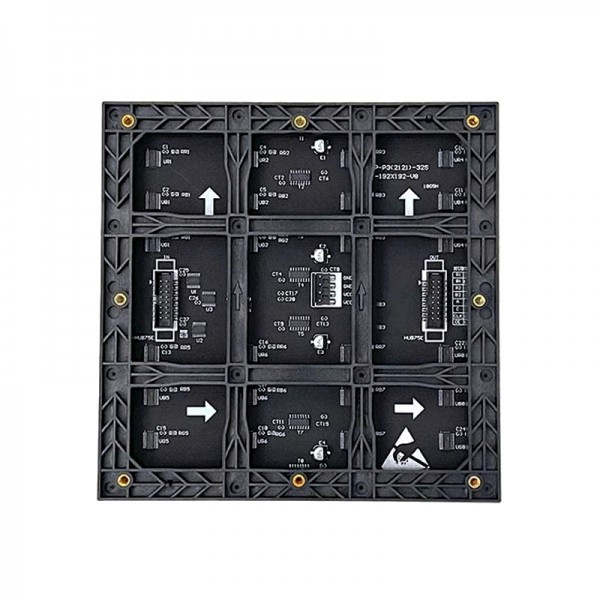

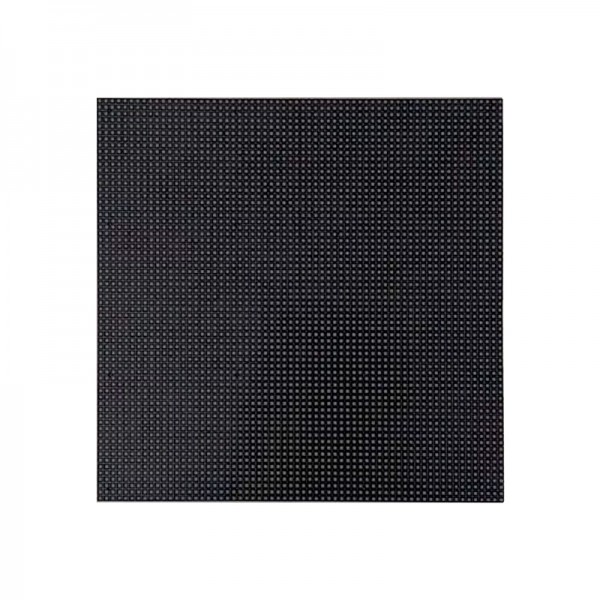

Cailiang 64x64 RGB LED Matrix - 192x192mm

An RGB LED Matrix for indoor use to, for example, create your own videowall!

You can use the 1_SimpleTestShapes.ino example for this matrix. The following adjustments are required to make this matrix work correctly:

The example assumes a 64x32 LED matrix, so adjust the height in the code from 32 to 64:

#define PANEL_RES_Y 64  // Number of pixels tall of each INDIVIDUAL panel module.

This panel uses an E-pin and requires that clkphase is set to false in order to correctly synchronize data with the clock signals. Therefore, remove the // from lines 97 and 98.

mxconfig.gpio.e = 18;
mxconfig.clkphase = false;

See the following page for more information: GitHub
