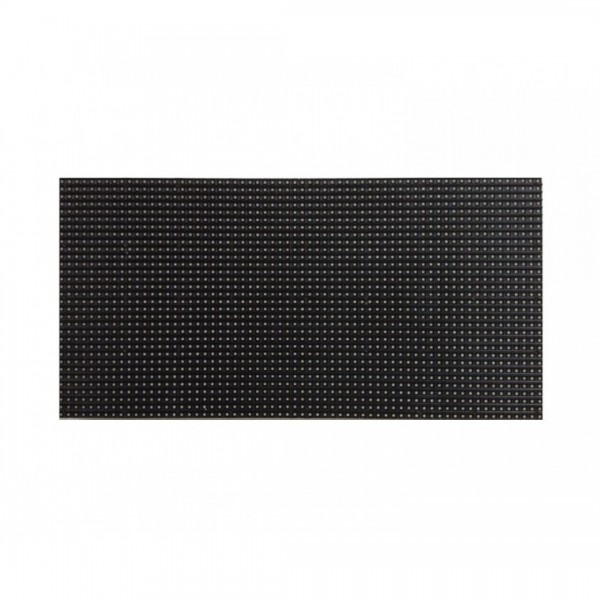

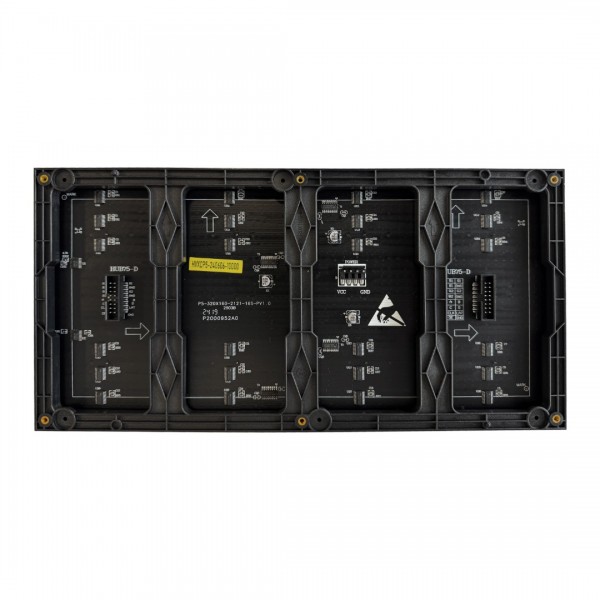

Cailiang 64x32 RGB LED Matrix - 320x160mm

Availability: Directly available from warehouse in Eindhoven
SKU: 006433

Based on 0 review(s) - Write a review

€19.00

Ex Tax: €15.70

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

An RGB LED Matrix for indoor use to, for example, create your own videowall!

You can use the 1_SimpleTestShapes.ino example for this matrix. The following adjustment is required to make this matrix work correctly:

This panel requires that clkphase is set to false in order to correctly synchronize data with the clock signals. Therefore, remove the // from line 98.

mxconfig.clkphase = false;

See the following page for more information: GitHub

Please login or register to review

Reviews Over Cailiang 64x32 RGB LED Matrix - 320x160mm

Average Rating:

This product has 0 review(s) in total.

Tags: Cailiang 64x32 RGB LED Matrix - 320x160mm , P-P5(2121)-16S-320X160 , Matrix

Specifications

General
Brand	Cailiang
Minimum operating humidity [%R.H.]	10
Maximum operating humidity [%R.H.]	65
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	40
Features	Display
General physical appearance
Main color	Black
Weight [g]	268
Dimension X [mm]	320
Dimension Y [mm]	160
Dimension Z [mm]	15
Mounting options	Screw thread
Thread size	M3
Form factor	Module (general) Matrix
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	5
Minimum recommended supply current [A]	2.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	HUB75
Display
Type	LED Matrix
Display width [mm]	320
Display height [mm]	160
Number of pixels long side	64
Number of pixels short side	32
Display shape	Rectangular
Pixel colors	RGB
Maximum brightness [cd/m²]	475 (±25)
Maximum viewing angle [°]	130 (±10)
Number of scan lines	16
Connectors
Power supply connector(s)	JST-VH (compatible) male
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x LED matrix 1x Power cable 1x Data cable
