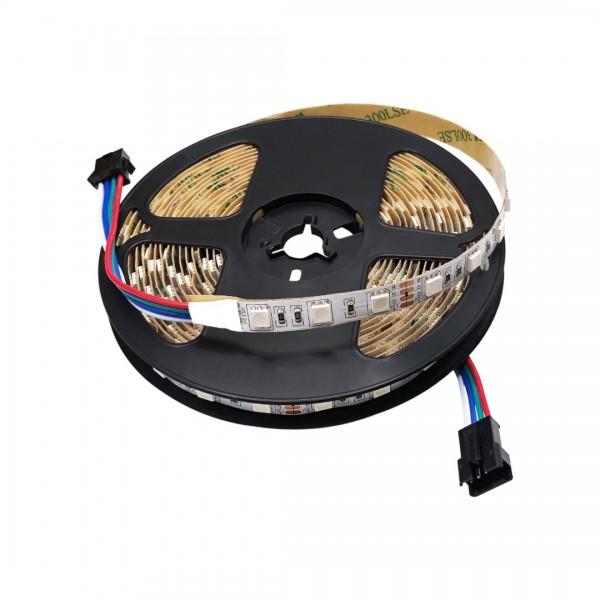

WorldSemi Standard 5050 RGB LED Strip - 300 LEDs 5m - 12V

WorldSemi Standard 5050 RGB LED Strip - 300 LEDs 5m - 12V
WorldSemi Standard 5050 RGB LED Strip - 300 LEDs 5m - 12V
WorldSemi Standard 5050 RGB LED Strip - 300 LEDs 5m - 12V
WorldSemi Standard 5050 RGB LED Strip - 300 LEDs 5m - 12V
WorldSemi Standard 5050 RGB LED Strip - 300 LEDs 5m - 12V
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005123
€13.50
Ex Tax: €11.16

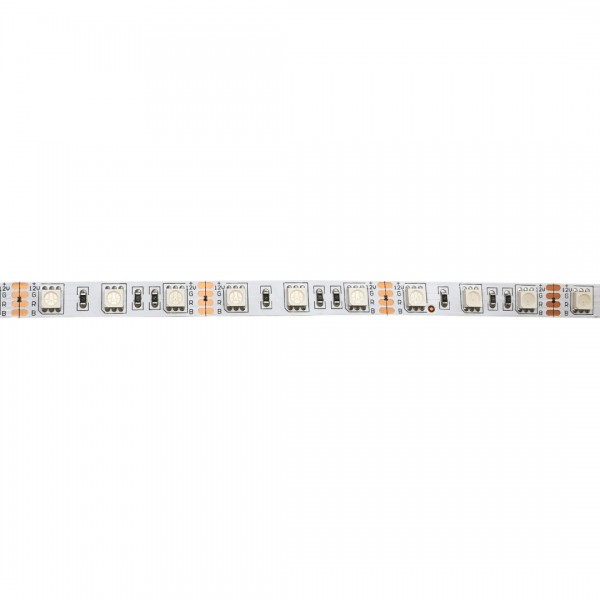

A standard RGB LED strip of which the red, green and blue LEDs are supplied with voltage via the separate R, G, B and 12V pins (common anode). This LED strip can only become one specific color by means of the separate RGB colors (the LEDs are not individually addressable). The strip can be shortened every 5cm (every 3 LEDs).

See the following page for an example of using this LED strip in combination with an Arduino: RGB Led Strip controlled by an Arduino
As a MOSFET you can use the IRLZ34N or a module with built-in MOSFETs: LED strip driver

Note: The maximum power (and therefore light intensity) can only be achieved if a new power wire is offered per meter (branches of the same power supply with thick wires). The copper on the LED strip is not thick enough to use the full power.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over WorldSemi Standard 5050 RGB LED Strip - 300 LEDs 5m - 12V

This product has 0 review(s) in total.

Specifications

General
Brand WorldSemi
Norm conformity RoHS
General physical appearance
Main color White
Weight [g] 75
Dimension X [mm] 5000
Dimension Y [mm] 10
Water and dust protection None
Mounting options Adhesive layer
Form factor Strip
General electrical properties
Minimum supply voltage [V DC] 12
Maximum supply voltage [V DC] 12
Minimum recommended supply current [A] 6.0
(3x20=60mA per LED chip, 300 LEDs in total and 3 chips in series makes: 0.06*300/3=6.0A)
LED
LED (driver) chip WS2850B
LED color RGB
Beam angle [°] 120
Dominant wavelength [nm] 621
(red)
518
(green)
471
(blue)
Number of LEDs 300
Maximum current per LED [mA] 60
(3x20mA)
Connectors
Power supply connector(s) JST-SM (compatible) male
JST-SM (compatible) female
Package contents
Package contents 1x LED strip
