Name: MT16703 (WS2811 Compatible) Digital NEON RGB LED Strip - 480 LEDs 5m - S73018-NB0612-96-2811RGB-V12
SKU: 006555
Price: 31.25 EUR
Availability: InStock

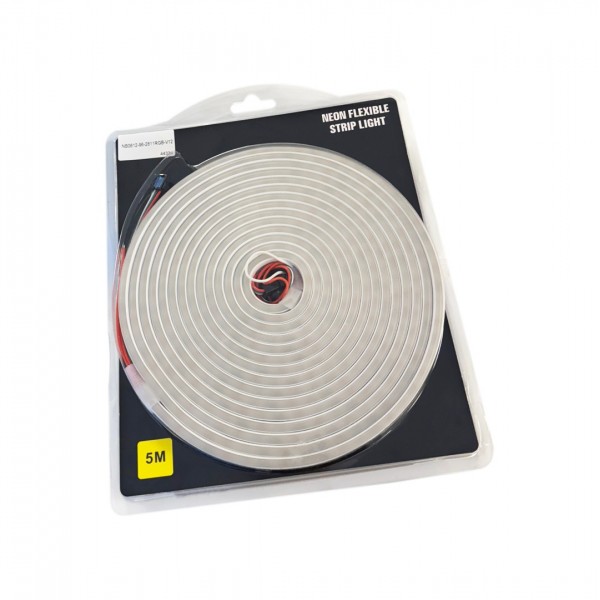

MT16703 (WS2811 Compatible) Digital NEON RGB LED Strip - 480 LEDs 5m

Availability: Directly available from warehouse in Eindhoven
SKU: 006555

Based on 0 review(s) - Write a review

€31.25

Ex Tax: €25.83

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

A digital LED strip whose color and brightness can be individually controlled per 3 LEDs. A lot of LEDs can be placed in sequence and all can be controlled with 1 pin of a microcontroller. Various platforms provide support for this LED by means of libraries, including Arduino and Raspberry Pi. The chip is software compatible with the WS2811 chip.

This strip can be shortened every 30mm.

See the FAQ at the bottom of this page for instructions on how to connect the strip and what is required.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over MT16703 (WS2811 Compatible) Digital NEON RGB LED Strip - 480 LEDs 5m

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006555_MT16703_v1.1-EN.pdf

Tags: MT16703 (WS2811 Compatible) Digital NEON RGB LED Strip - 480 LEDs 5m , S73018-NB0612-96-2811RGB-V12 , LED Strips

Specifications

General
Brand	COXO
Features	Digital LED(s)
General physical appearance
Main color	White
Weight [g]	418
Dimension X [mm]	5000
Dimension Y [mm]	12
Dimension Z [mm]	5.9
Water and dust protection	IP67
Form factor	Strip
General electrical properties
Minimum supply voltage [V DC]	12
Maximum supply voltage [V DC]	12
Minimum recommended supply current [A]	4.0 (whole strip)
Minimum IO-pin input voltage [V]	3.7
Maximum IO-pin input voltage [V]	5.2
Communication
Hardware interface(s)	Digital
Back-up data line	No
LED
LED (driver) chip	MT16703 (WS2811 compatible)
LED color	RGB
Number of LEDs	480 (160 individual pixels/segments)
Connectors
Power supply connector(s)	JST-SM (compatible) male JST-SM (compatible) female Loose wire

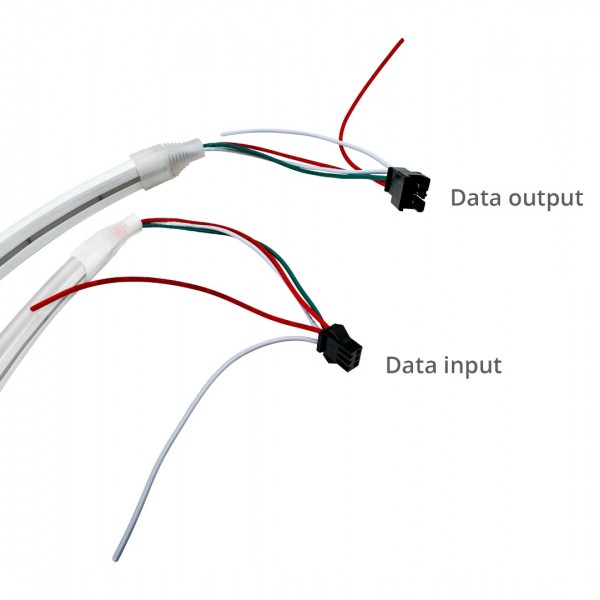

IO-connector(s)	JST-SM (compatible) male JST-SM (compatible) female
Package contents
Package contents	1x LED strip
