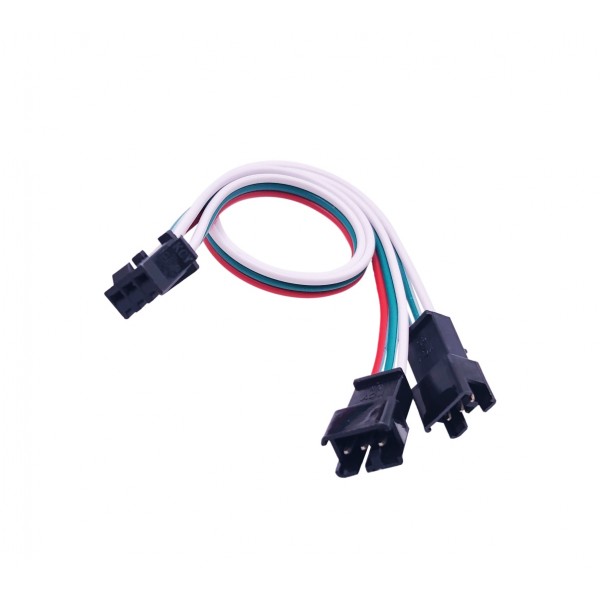

JST-SM 3p Compatible Splitter - 2x15cm

JST-SM 3p Compatible Splitter - 2x15cm
JST-SM 3p Compatible Splitter - 2x15cm
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003582
€2.50
Ex Tax: €2.07

A cable with the same type of connector as, for example, the connectors of our LED strips. When using it for LED strips, do note that the colors may not match exactly, and that there are strips with 3 and 4 pins.

Please login or register to review

Reviews Over JST-SM 3p Compatible Splitter - 2x15cm

This product has 0 review(s) in total.

Specifications

General
Brand No brand
General physical appearance
Main color Mixed
Weight [g] 8
Form factor Wire/cable
Connectors
Connector type(s) JST-SM (compatible) male
JST-SM (compatible) female
Number of conductors/pins 3
Number of pin rows 1
Orientation Straight
Locking mechanism Clip
Pin shape Rectangular
Connector/pin width [mm] 1.1
Pin distance [mm] 2.50
Pin length [mm] 5.5
Pin insertion length [mm] 5.5
Wire/cable
Core structure Stranded
Shielding No
Wire/cable length [m] 0.15
Package contents
Package contents 1x JST-SM Splitter
