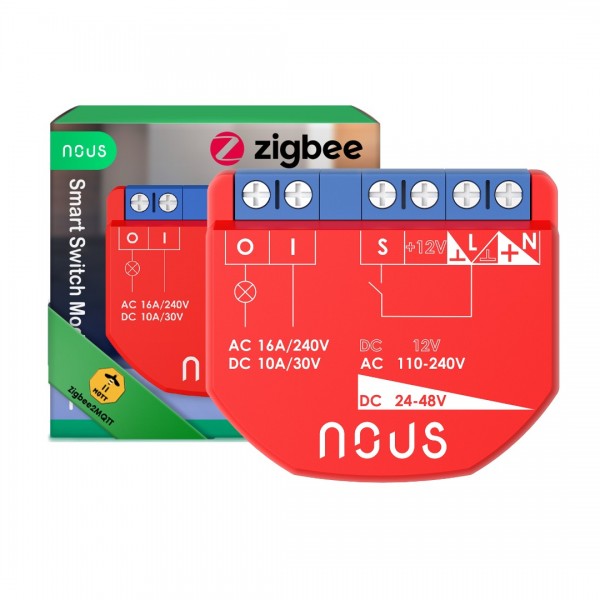

Nous B1Z Zigbee Smart Switch Module - 1 Channel

Nous B1Z Zigbee Smart Switch Module - 1 Channel
Nous B1Z Zigbee Smart Switch Module - 1 Channel
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007422
Based on 0 review(s) - Write a review
€18.25
Ex Tax: €15.08
Add to Cart
Add to wishlist

The Nous B1Z is a versatile and smart Zigbee switch with a dry contact. The module can be powered by both AC voltage and DC voltage (not simultaneously).

Note: A Zigbee bridge is required, for example: Sonoff ZBDongle-E (in combination with, for example, Home Assistant).

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Nous B1Z Zigbee Smart Switch Module - 1 Channel

This product has 0 review(s) in total.

Tags: Home automation , Switches and dimmers , Nous B1Z Zigbee Smart Switch Module - 1 Channel , 007422 , NOUS , B1Z , Electric switch , Enclosure , Zigbee

Specifications

General
Brand NOUS
Manufacturer model/SKU B1Z
Norm conformity CE
RoHS
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
Electric switch
General physical appearance
Main color Red
Weight [g] 27
Dimension X [mm] 42
Dimension Y [mm] 37
Dimension Z [mm] 16
Water and dust protection IP20
Form factor Module (general)
General electrical properties
Minimum supply voltage [V AC] 100
Maximum supply voltage [V AC] 240
Minimum supply voltage [V DC] 12
(via 12V connector)
24
(via N connector)
Maximum supply voltage [V DC] 48
(via N connector)
12
(via 12V connector)
Wireless communication
Interface(s) Zigbee
Zigbee frequency [GHz] 2.4
Zigbee device type(s) Router
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 1
Contact(s) NO (normally open)
Maximum switching voltage [V AC] 240
Maximum switching voltage [V DC] 30
Switching voltage equal to supply voltage No
Maximum switching current per channel (resistive load) [A] 16
(@240V AC)
10A
(@30V DC)
Connectors
Power supply connector(s) Screw terminal
Switch connector(s) Screw terminal
Zigbee/Thread antenna connector Built-in antenna
Enclosure
Material Polycarbonate (PC) V0
Package contents
Package contents 1x Switch module
