M5Stack SwitchC6 - ESP-NOW Switch - 10A

M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
M5Stack SwitchC6 - ESP-NOW Switch - 10A
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007493
Based on 0 review(s) - Write a review
€22.25
Ex Tax: €18.39
Add to Cart
Add to wishlist

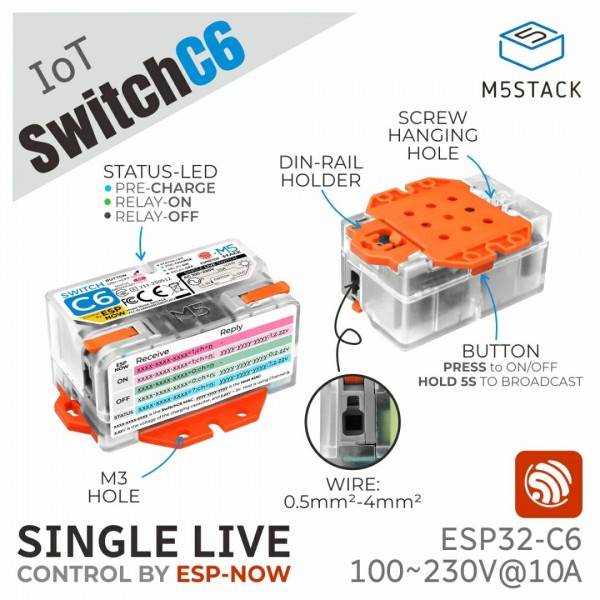

An M5Stack switch module suitable for switching mains voltage without the need for a neutral wire. The SwitchC6 can be controlled wirelessly via the pre-installed ESP-NOW firmware.

Note: The ESP32-C6 is not easily reprogrammable.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack SwitchC6 - ESP-NOW Switch - 10A

This product has 0 review(s) in total.

Tags: Home automation , Switches and dimmers , M5Stack SwitchC6 - ESP-NOW Switch - 10A , 007493 , M5Stack , K140 , Electric switch , Wi-Fi

Specifications

General
Brand M5Stack
Manufacturer model/SKU K140
Norm conformity CE
RoHS
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 60
Features Electric switch
General physical appearance
Main color Colorless/transparent
Weight [g] 40
Dimension X [mm] 54
Dimension Y [mm] 32
Dimension Z [mm] 27
Mounting options Mounting hole(s)
DIN-rail (EN 60715)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V AC] 100
Maximum supply voltage [V AC] 230
Wireless communication
Interface(s) Wi-Fi
(hardware, ESP-NOW implementation)
Switch
Switching method Electrical
Switch type Mechanical relay (latching)
Number of channels/gangs 1
Contact(s) NO (normally open)
Minimum switching voltage [V AC] 100
Maximum switching voltage [V AC] 230
Switching voltage equal to supply voltage Yes
Maximum switching current per channel (resistive load) [A] 10
Connectors
Power supply connector(s) Clamp terminal
Switch connector(s) Clamp terminal
Minimum wire thickness [mm²] 0.5
Maximum wire thickness [mm²] 4
(Solid wire)
2.5
(Stranded wire)
Wi-Fi/Bluetooth antenna connector Built-in antenna

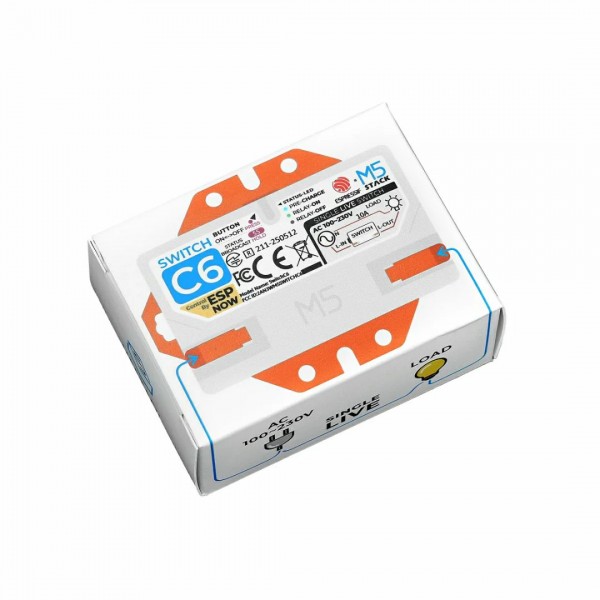

Package contents
Package contents 1x SwitchC6
